Magicard Rio Pro - Print Head Assembly (FG;3633-0160); Rotation Unit Assembly (3633-0140)

Ultra Electronics Card Systems
Rio Pro Maintenance Manual
- 96 -

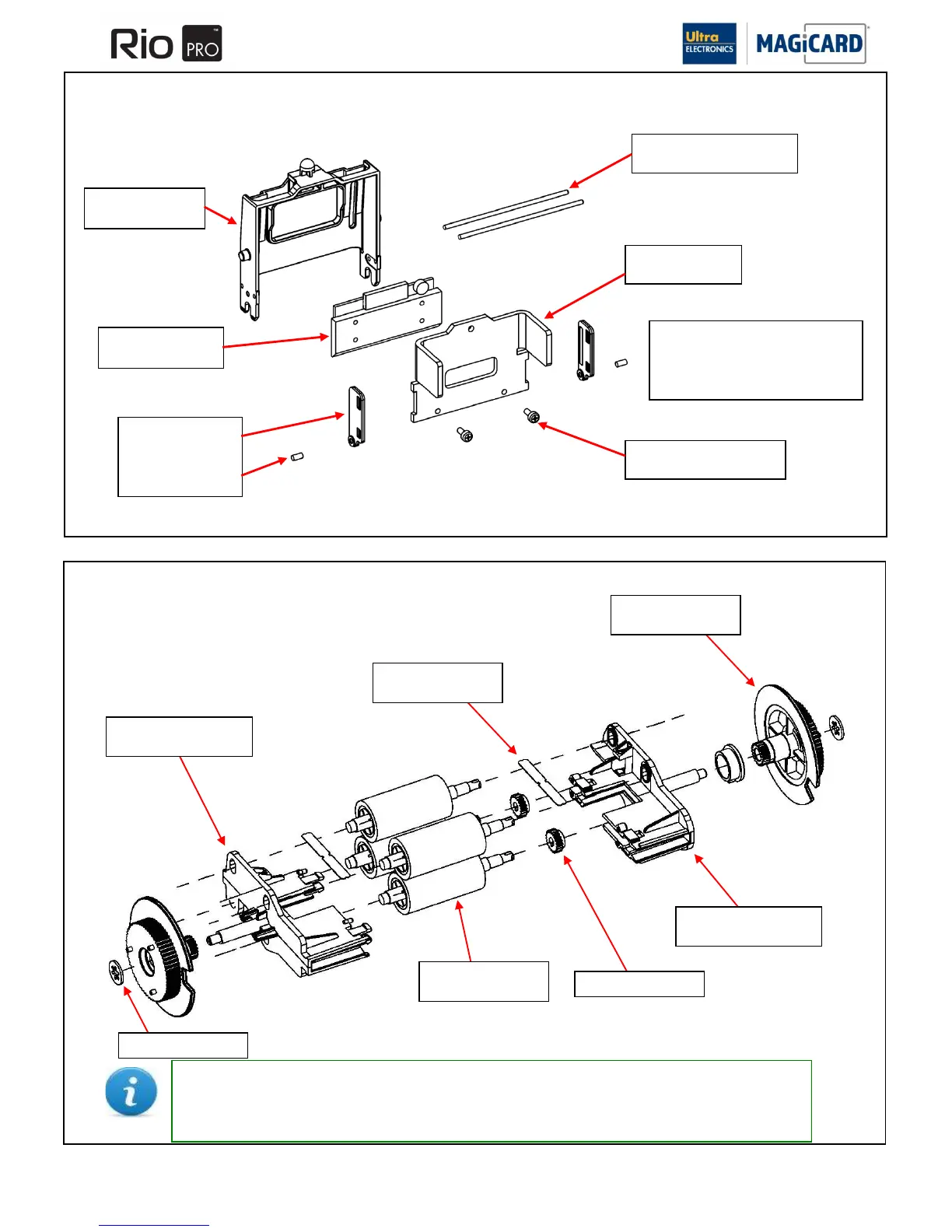

SECTION 16.3 PRINT HEAD ASSEMBLY (FG/3633-0160)
SECTION 16.4 ROTATION UNIT ASSEMBLY (3633-0140)
Spring
E9165
M3 x 20mm Torx Adjustment Screw
E9091
M3 x 6mm Torx Screw x 2
E9091
Support Plate x2
3652-0160-001
3x8mm Dowel x2
E9368
Print Head Mount
3652-0160-002
Guide Bar (Dye-Film) x2
3633-0160-007
Thermal Print Head
E9312
Heatsink
3652-0160-003
Card Feed Rollers
x4
Roller Spring Plate
x2
Flipper Unit Housing
(Left side)
Flipper Unit Housing
(Right side)
Idler Pulley x2
Rotation Drive Gear
x2
Star Washer x2
The Rotation Unit is now assembled externally as one complete unit so individual items are not available, a complete
unit will be sent if required.
The external Pulleys on the Rotation Unit are now considered a permanent fixture and the locking pin holds the Pulley
Assembly in place. If the Rotation Unit is to be removed and replaced it should exchanged as a complete item.
