IMPULSE•G+ Mini Advanced Instruction Manual - March 2014
3-9
Grounding
1. Connect terminal to the common panel ground. Use ground wiring as specified in
“Suggested Circuit Protection Specifications and Wire Size” on page 3-8, and keep the length as
short as possible.
• Ground Resistance: 230V class; 100 or less, 460V or greater class; 10 or less.
• Never run the IMPULSE•G+ Mini drive ground wires in common with welding machines,
or other high-current electrical equipment.
• When more than one drive is used for the same system, ground each drive directly, or daisy-
chain to the ground pole. Do not loop the ground wires.

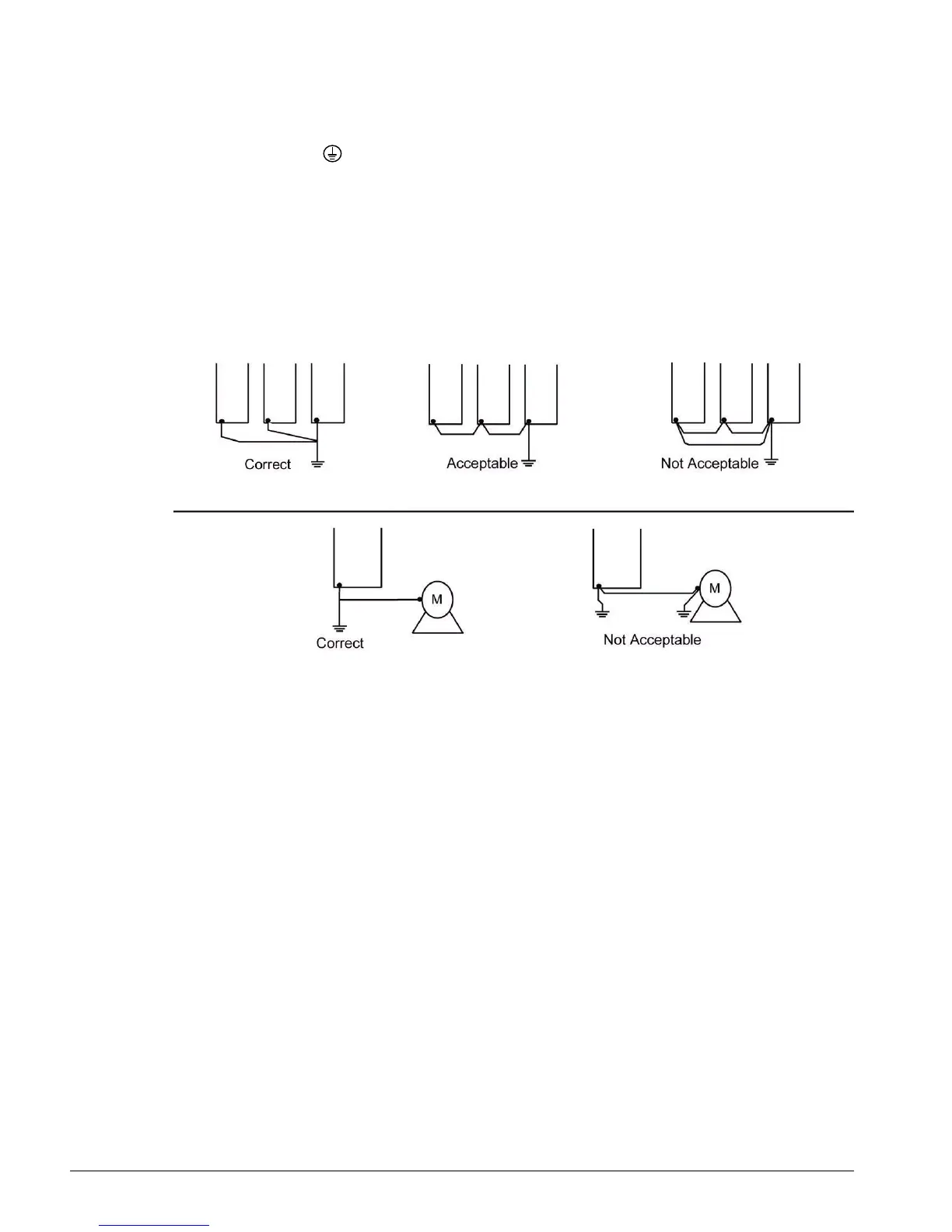

Figure 3-3: Grounding
