IMPULSE•G+ Mini Advanced Instruction Manual - March 2014
3-10
Wiring the Control Circuit
Control Circuit Terminals
The IMPULSE•G+ Mini is shipped with a 120V interface card, allowing direct connection of 120V
user input devices. The interface card connects to drive terminals S1-S7 and SC. The user input
device then connects to terminals S1-S7 and X2 on the interface card. Terminals S1 and S2 are
factory programmed for the forward (up) and reverse (down) run commands; however, they can be
programmed for speed control and other functions like the remaining terminals. The figure below
shows the control terminal arrangement for the IMPULSE•G+ Mini along with the 120V interface
card (G+M IF 120V).

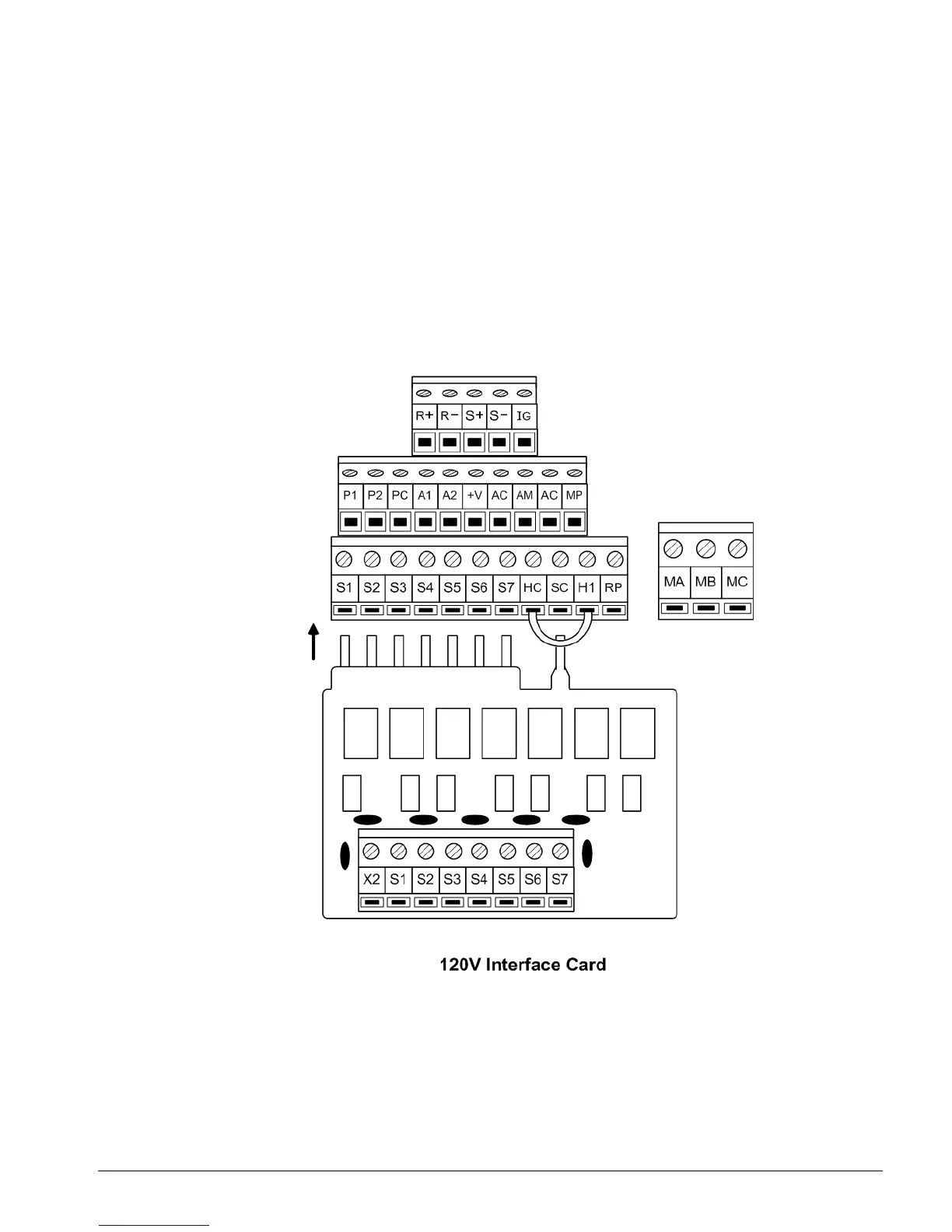

Figure 3-4: IMPULSE•G+ Mini 120V Interface Card
