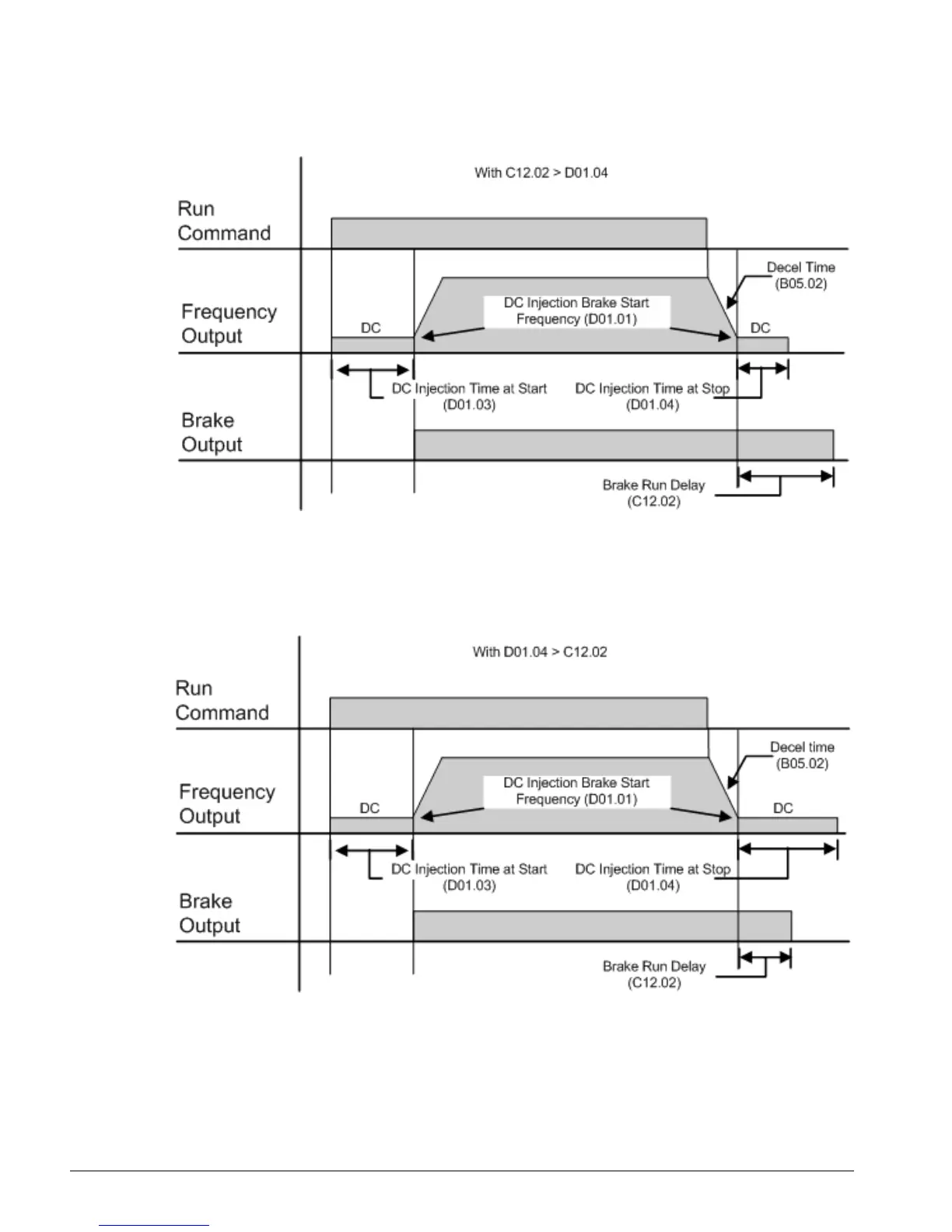

Figure 5-9: B03.03 = 04 (Decel with timer) with DC Injection, where C12.02 > D01.04
Figure 5-10: B03.03 = 04 (Decel with timer) without DC Injection, where D01.04 > C12.02
