RT9150E OPERATOR MANUAL OPERATING CONTROLS AND PROCEDURES
Published 2-23-2017, Control # 644-00
4
Swing gear brake
control indicator
(1) Brake pedal control: use swing
gear brake pedal to brake swing
movement
(2) Control lever control: control
lever in zero position brakes swing
movement. Swing gear brake
pedal is without function.
Swing gear must be off to switch
controls.
5
Swing gear brake
control selector
button, F14
Swing gear must be switched off.
To select between the brake pedal or
control lever: Press F14 button once.

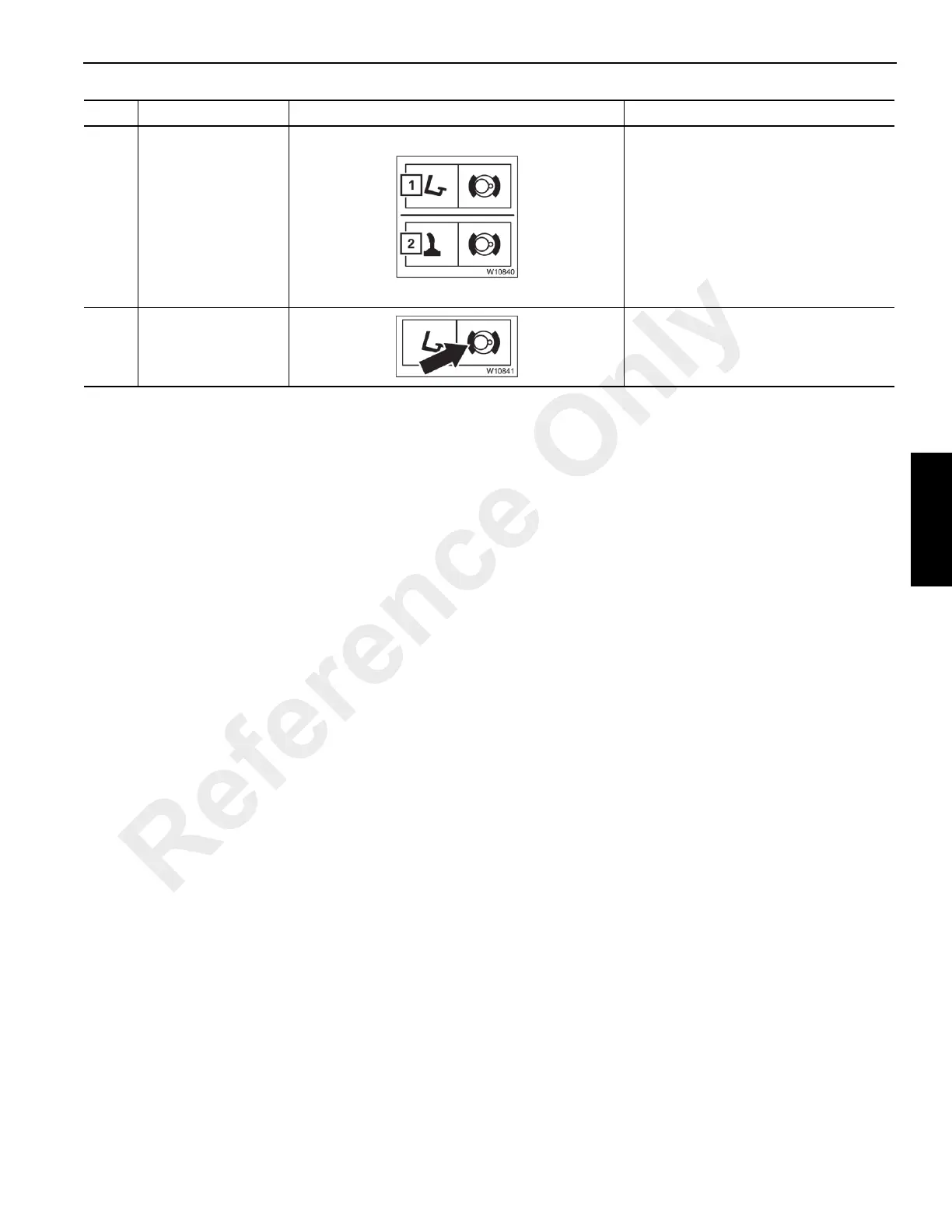

Item Description Graphic Explanation
