SET-UP AND INSTALLATION RT9150E OPERATOR MANUAL
4-52
Published 2-23-2017, Control # 644-00
3. Remove all the pins securing the boom nose to the
boom head (Figure 4-83).
4. Lift the auxiliary boom nose from the head of the main
boom.
5. Insert the pins into the lugs on the boom nose and
secure with retaining clips.

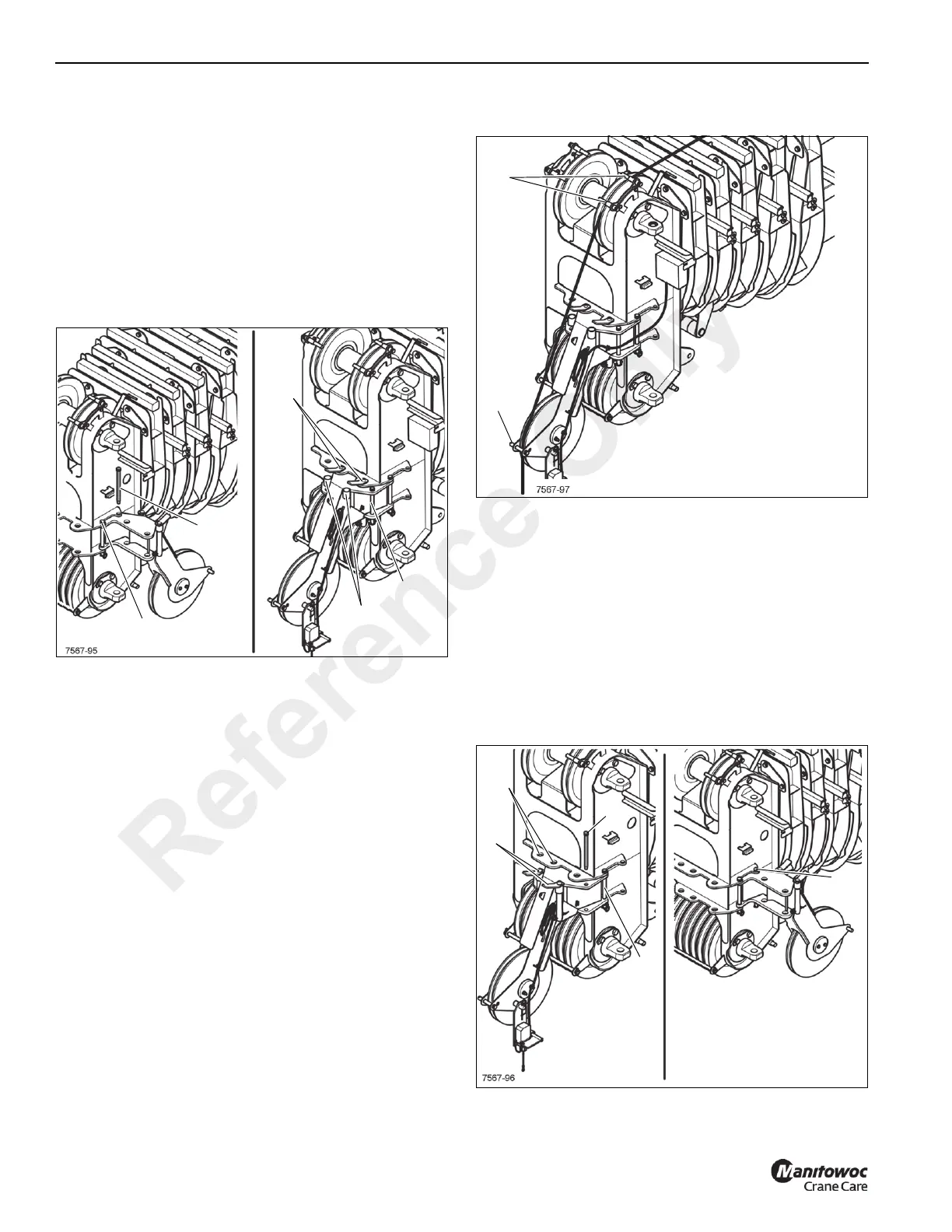

Working Position
1. Verify the swivel pin (1) (Figure 4-85) is installed.
2. If necessary, remove the pin (2) from the transport lug.
3. Swing the auxiliary boom nose in front of the main boom
head.
4. Remove the pins from the storage lugs (3).
5. Insert the pins into the mounting lugs (4) and secure with
retaining clips.
6. Insert the pin (2) into the transport position lug and
secure with retaining clip.
Rigging the auxiliary boom nose
1. Remove the cable retaining pins (1) (Figure 4-85) from
the head of the main boom and from the auxiliary single-
sheave boom nose.
2. When reeving, guide the hoist rope over the left head
sheave of the main boom, as shown.
3. Insert the cable retaining pins into the mounting lugs and
secure them with the retaining clips.
4. Fasten the cable end clamp on the hook tackle or the
hookblock.
Transport Position
2
FIGURE 4-85
2
4
3
1
1
FIGURE 4-86
1
3
FIGURE 4-87
4
1
5
2
Reference Only
