Manitowoc Grove RT9150E User Manual

3-11
RT9150E OPERATOR MANUAL OPERATING CONTROLS AND PROCEDURES
3
Published 2-23-2017, Control # 644-00
Grove
throttle pedals released. Refer to Exhaust System Cleaning,
page 3-110 for cleaning mode definitions and a description of
when manual cleaning is needed.
Set up a safe area around the crane’s exhaust; remove tools,
rags, grease or any debris from the engine exhaust area.
With the engine idling push the Cleaning Switch (9) to the
Manual Clean position to initiate manual cleaning.
Within 5 seconds the engine should rev up to 1000 to 1400
rpm. The engine will continue to run at this speed for up to 45
minutes.
As a warning, the light (1, Figure 3-7) below the exhaust pipe
(2, Figure 3-7) will blink during cleaning.
Pressing the brake or throttle pedal during cleaning or
activating the Inhibit Cleaning Switch will interrupt the
manual cleaning process.
Make sure the crane and surrounding area are monitored
during manual cleaning. If any unsafe condition occurs, shut
off the engine immediately.
During this period the sound of the engine may change.
When manual cleaning is complete the engine will return to
it’s normal idle speed.
DEF Gauge
The DEF Gauge (9) indicates the amount of diesel exhaust
fluid (DEF) in the DEF tank (3, Figure 3-7) and has a scale
calibrated from empty (E) to full (F) with markings in between
of 1/4, 1/2, and 3/4 full.
SEAT-MOUNTED CONTROLS
Refer to Figure 3-8.
Right-Hand Armrest Assembly
The right-hand armrest (1) includes the dual axis joystick,
control panel and armrest, refer to Right-Hand Armrest
Controls, page 3-12. Use the adjustment knob (2) below the
controller assembly to adjust its vertical position.
Seat Adjustment Lever
The Seat Adjustment Lever (3) is used to move just the seat
forward or back. Push the lever to the left to release the latch
and move the seat. Release the lever and slightly move the
seat until the lever engages.
Seat Back Adjustment Lever
The Seat Back Adjustment Lever (5) is used to adjust the
angle of the seat back. Push the lever to the right and either
lean forward so the seat moves up or lean back against the
seat to lean it backwards. Release the lever and allow the

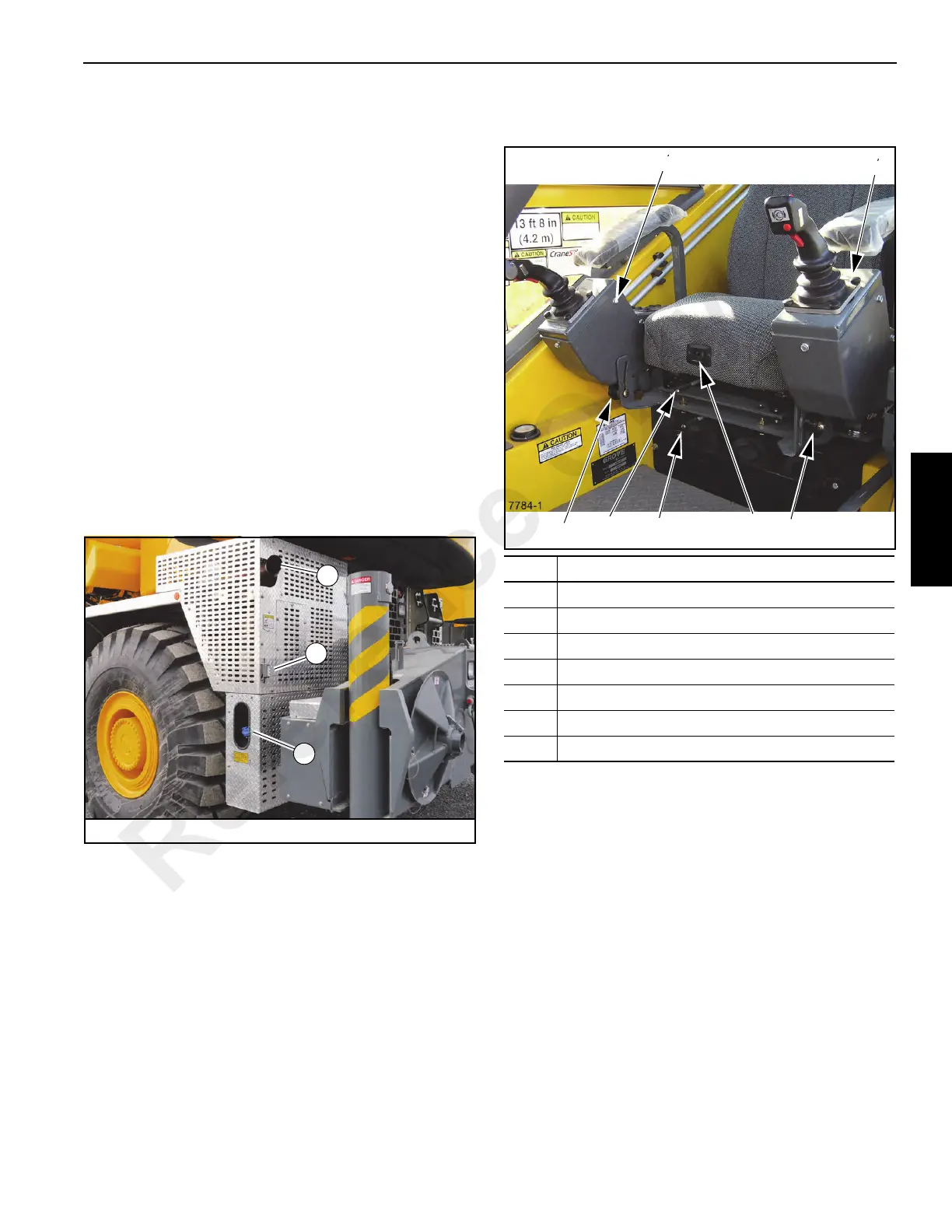

FIGURE 3-7
8881-03
1
2
3
Item Description
1 Right-hand Armrest Controls
2 Right-hand Armrest Adjustment Knob
3 Seat Adjustment Lever
4 Seat Assembly Adjustment Lever
5 Seat Back Adjustment Lever
6 Left-hand Armrest Adjustment Knob
7 Left-hand Armrest Controls
FIGURE 3-8
3
5
1
2
4
7
6
Reference Only
