OPERATING CONTROLS AND PROCEDURES RT9150E OPERATOR MANUAL
3-38
Published 2-23-2017, Control # 644-00

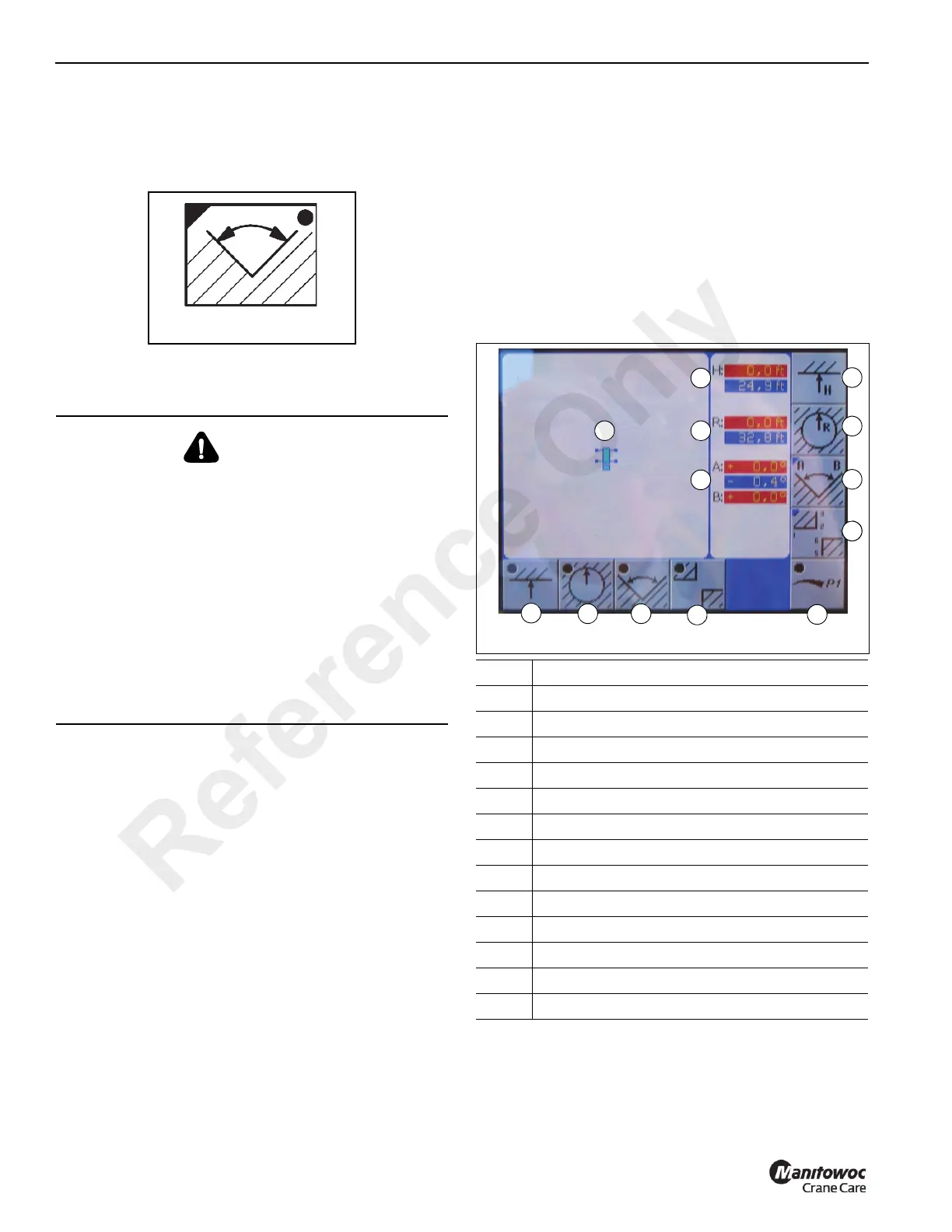

WORKING RANGE LIMITATION SUBMENU
Press the Working Range submenu button (Figure 3-23) in
the Main menu to open the submenu.
After turning on the ignition, all monitoring functions that
were on before the ignition was switched off are switched on.
NOTE: With monitoring switched on, the speed of all
power units is limited to 50%.
Limits below 50% continue to be active. We
recommended limiting the swing gear speed to
between 30% and 50%.
It is impossible to move behind a defined object
whenever a monitoring function is switched on.
Entering Limit Values
This section describes how to enter unknown limit values by
moving the boom nose to the shutdown points.
You can enter known limit values directly, see Entering Limit
Values/Objects Manually, page 3-44.
Before entering values, monitoring must be switched off, dot
black, see Items 9-12.
Manual input must be switched off to enter values using this
method, see Item 13 in the following tables.
Working Range Limitation Submenu
Refer to the following table for a description of each item
listed above.
WARNING
Crushing and/or Property Damage Hazard!
After switching on the monitoring function, slowly
approach all limit values and check that they switch off in
time. If necessary, enter new values with larger safety
distances.
When entering the limit values, bear in mind that, even
after switching off the engine, movements can still occur
that would bring the load into the shutdown range, e.g.
due to the load swing or the boom bending. For this
reason, always enter the limit values with sufficient safety
distance to the object.
Death, serious injury or property damage may result from
improper operation of the crane.
FIGURE 3-23
Item Description
1 Working range limiter display
2 Enter maximum height, F5
3 Maximum height values
4 Enter maximum working radius, F6
5 Maximum/Current working radius values
6 Enter swing angle, F7
7 Maximum/Current swing angle values
8 Enter objects submenu, F8
9 Overall height monitoring; on/off, F9
10 Working radius monitoring; on/off, F10
11 Swing angle monitoring; on/off, F11
12 Object monitoring; on/off, F12
13 Manual input; on/off, F14
FIGURE 3-24
1
10 11
13
2
4
6
5
9
12
8
3
5
7
