OPERATING CONTROLS AND PROCEDURES RT9150E OPERATOR MANUAL
3-92
Published 2-23-2017, Control # 644-00
LIFTING CAPACITY TABLES SUBMENU
This submenu displays the status of the current lift based on
the RCL code and current telescope status or you can have
the lifting capacity tables displayed for all permissible
telescoping statuses.
From this menu you can display the working range for all
permissible telescope statuses by pressing the F9 button,
refer to Working Range Submenu, page 3-96.
Opening the Submenu
In the Monitoring main menu or submenu, press the F6
button (1) (Figure 3-95) once.
Lifting Capacity Tables Menu
Refer to the following table for a description of each item
listed above.

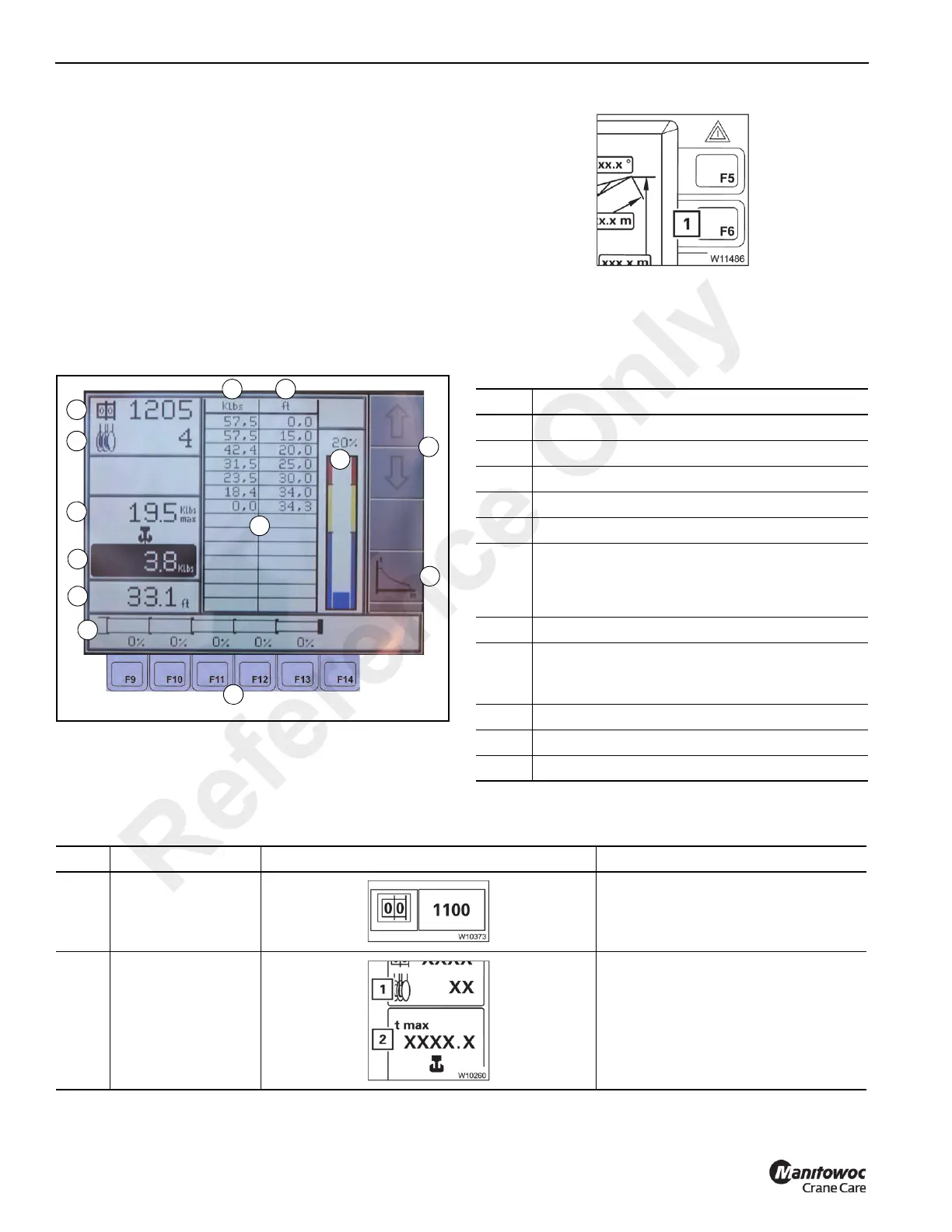

FIGURE 3-95
FIGURE 3-96
1
2
3
4
10
9
7
8
A
5
11
B
6
Item Description
1 RCL code display
2 Reeving display
3 Maximum load display
4 Current load display
5 Current working radius display
6
Load Chart display:
(A) Maximum load table
(B) Working radius table
7 Current percent of maximum load display
8
Selection:
Up, F5
Down, F6
9 Working range submenu
10 Telescope status display
11 Telescope status input buttons, F9-F13
Item Description Graphic Explanation
1 RCL code display RCL code, four digits.
2 Reeving display
(1) Required quantity of reeved ropes
for displayed, maximum load (2).
