RT9150E OPERATOR MANUAL OPERATING CONTROLS AND PROCEDURES
3
Published 2-23-2017, Control # 644-00
Grove
RCL MAIN MENU

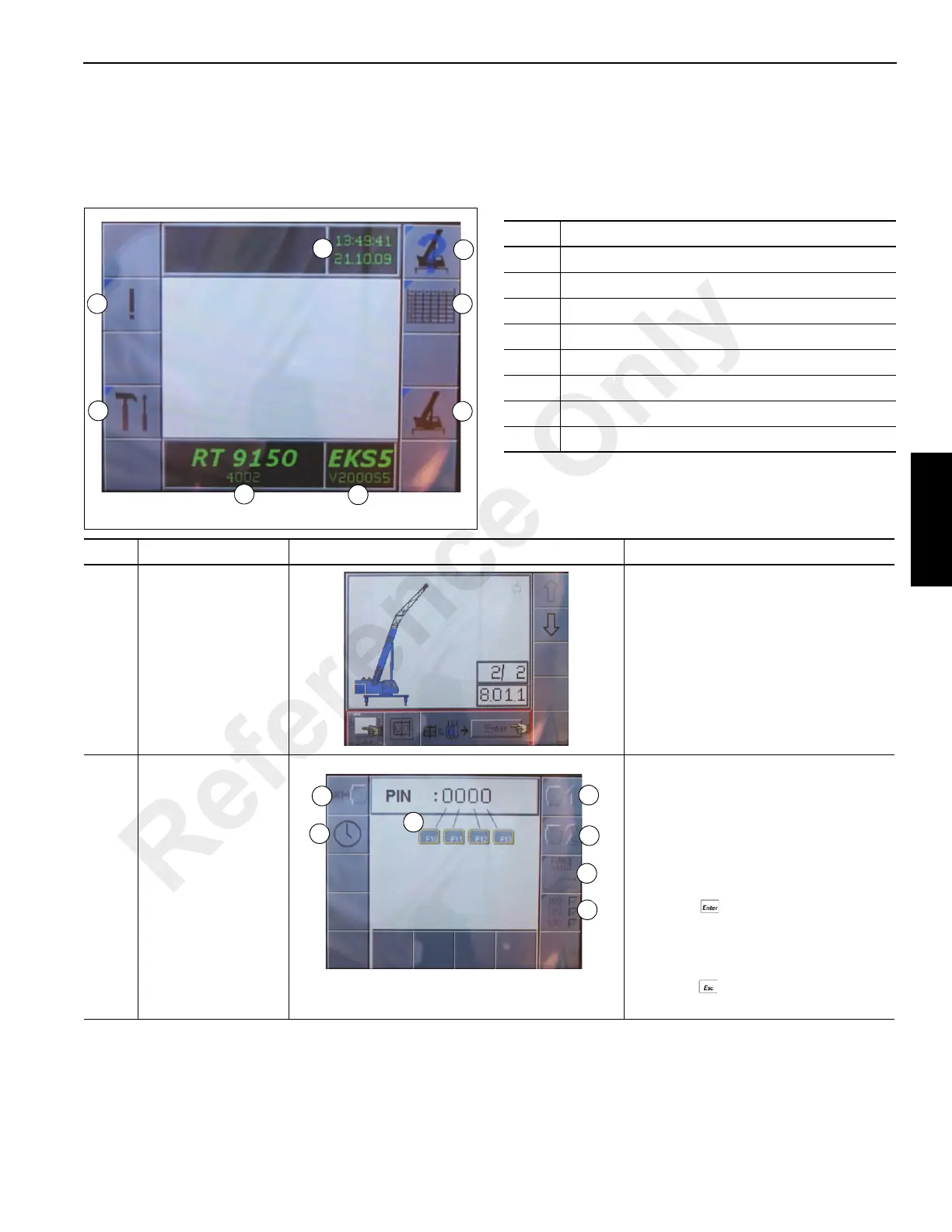

The Main menu shows symbols for further submenus and
symbols for current displays.
RCL Main Menu
Refer to the following table for a description of each item
listed above.
FIGURE 3-73
1
2
3
7
5
6
8
4
XXXX-X
Item Description
1 Error submenu, F2
2 Settings submenu, F4
3 Date/time display
4 Rigging mode submenu, F5
5 Lifting Capacity Tables submenu, F6
6 Monitoring submenu,F8
7 Serial number display
8 Program version display
Item Description Graphic Explanation
1
Error Submenu,
page 3-101, F2
The error submenu is where you
access and acknowledge any errors
that are present.
Refer to Error Submenu, page 3-101.
2
Settings
Submenu, page 3-
99, F4
Buttons/displays (1) associated with
buttons F1, F5, F6, F7 and F8 are only
shown if a service device is connected,
refer to Settings Submenu, page 3-99
for more information.
Button F2 (2) is used to change the
time and date.
Press the button, the entered
values are accepted and displayed in
the main menu.
You can cancel the input at any time;
press the button, none of the
values are changed.
1
2
1
1
1
1
1
