Manitowoc Grove RT9150E User Manual

4-15
RT9150E OPERATOR MANUAL SET-UP AND INSTALLATION
4
Grove
Published 2-23-2017, Control # 644-00
17,690 kg (39,000 lb) Cast Counterweight
Installation
1. Rig the crane with three parts of line.
2. The 17,690 kg (39,000 lb) cast counterweight assembly
may be lifted in one of the following boom
configurations.
3. Enter RCL code 1100. Refer to RCL Main Menu, page 3-
75.
4. Connect sling assemblies to the cast counterweight
using the installation lifting holes (Figure 4-15).
5. Lift and place the counterweight onto the support
bracket (Figure 4-15) on the ground.
6. Lift and place the counterweight/support bracket
assembly onto carrier counterweight stands using the
support bracket lifting eyes (Figure 4-16).
DANGER
Read and understand the following when removing and
installing the counterweight or counterweight stand, to
avoid serious injury or death.
• Outriggers must be fully extended and set and crane
level before installation or removal of counterweight.
• Lifting operations are not permitted with any
counterweight on the carrier deck except for the
removal or installation of the counterweight.
• Boom is not permitted over carrier deck when the
boom angle is less than 30° and any counterweight is
positioned on deck.
• Hookblock is not permitted to come in contact with
counterweight during removal or installation.
• Travel is not permitted with any counterweight on
carrier deck.
• Counterweight assembly must be completed on the
ground not on the carrier counterweight stands.
Boom Configuration
0-0-0-0-0
(30 ft radius)
0-0-0-0-50 0-0-0-50-0

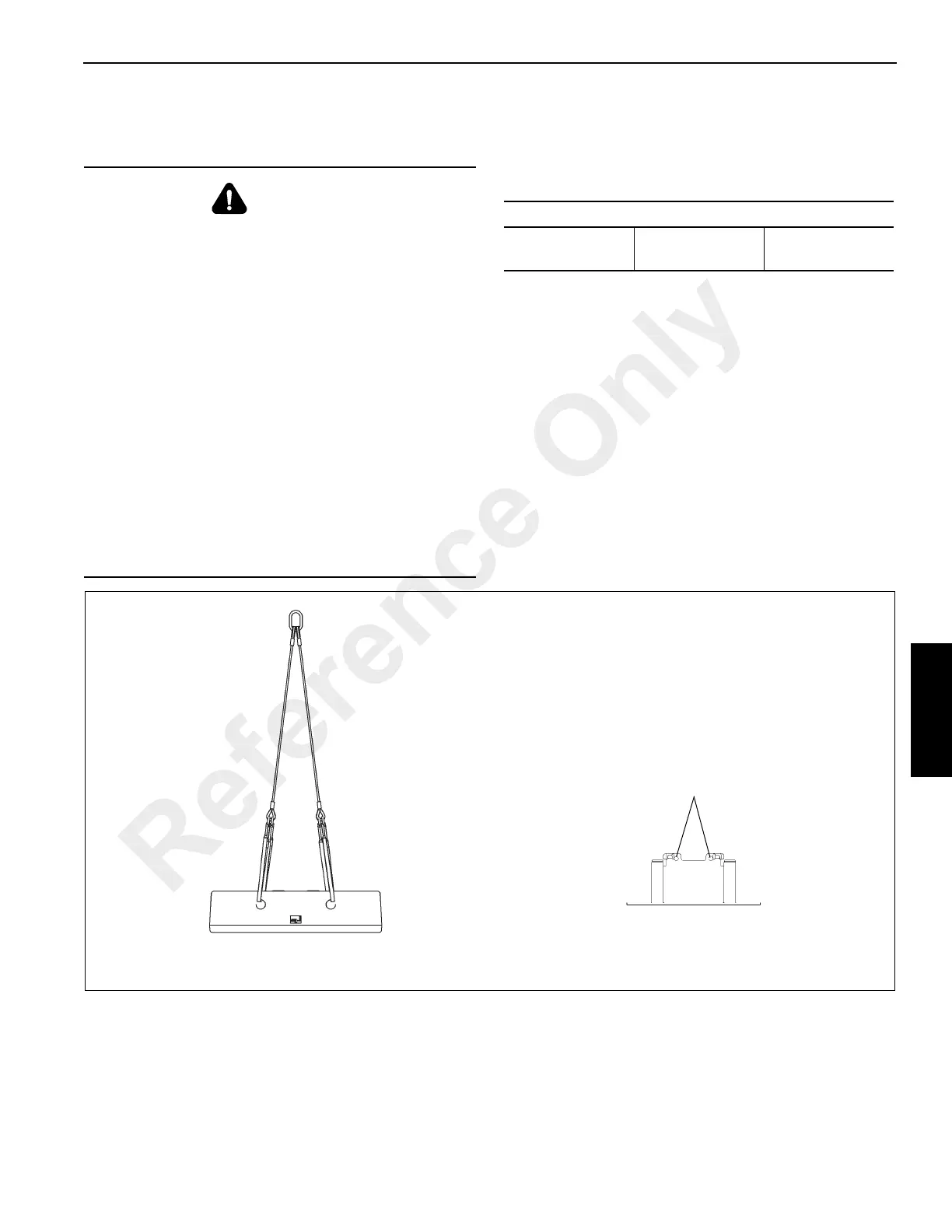

FIGURE 4-15
17,690 kg (39,000 lb) Cast Counterweight
Lifting Eyes
Support Bracket
8162-2
8162-4
Reference Only
