OPERATING CONTROLS AND PROCEDURES RT9150E OPERATOR MANUAL
3-60
Published 2-23-2017, Control # 644-00
Entering the Current Telescope Status
The ECOS will no longer display the current telescope
configuration:
• if you telescoped in emergency mode or
• if the power supply was interrupted in the course of
saving data.
If necessary, open the main menu by pressing the Esc button
and then press the F4 button (Figure 3-57) once.
Entering RCL Telescope Values

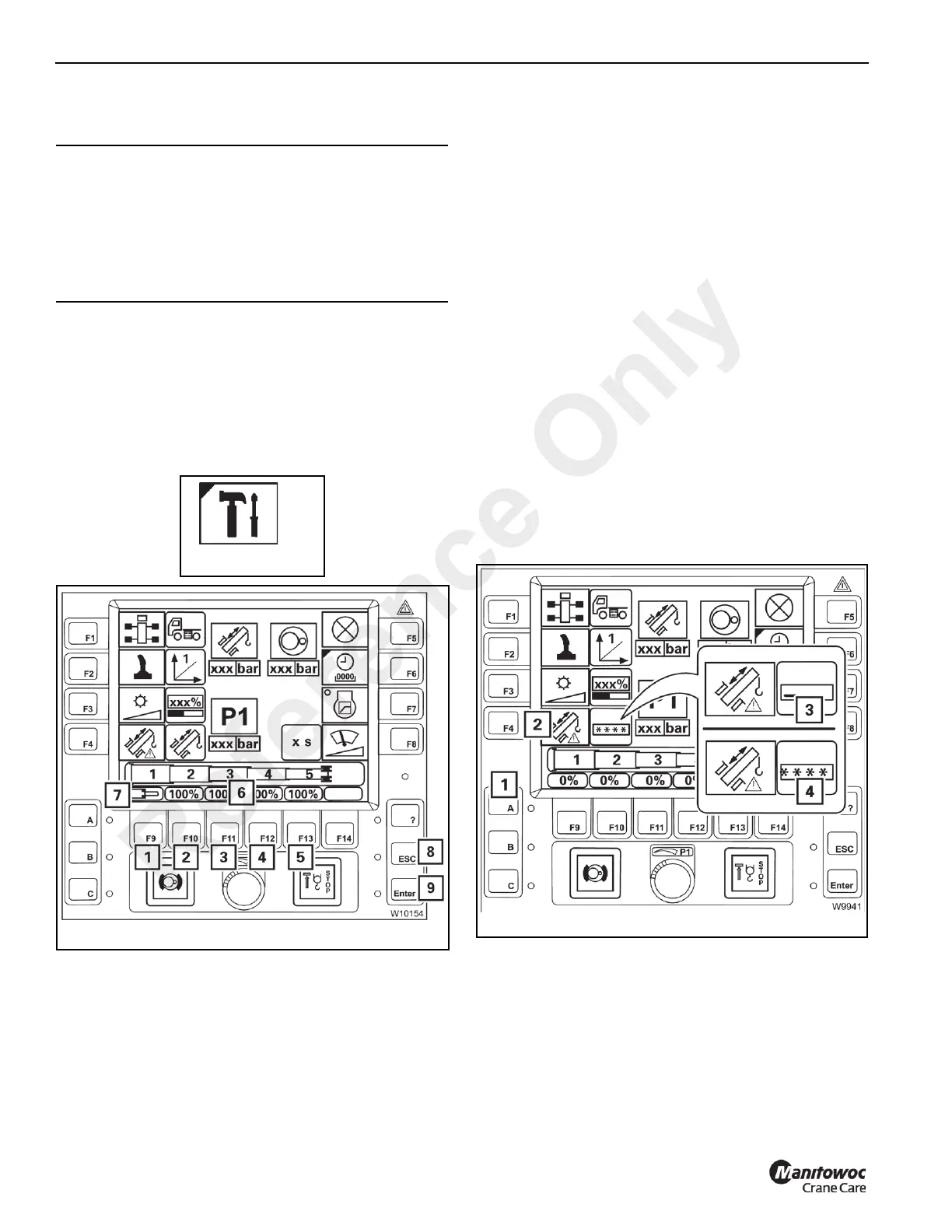

The telescope display (6) (Figure 3-58) shows the values for
telescopic sections 1 to 4.
1. Select a section; press one of the F9 to F13 buttons (1)
to (5), the values in the display (6) turn yellow.
Each time you press a button, the corresponding value
in the display (6) switches continuously between the
fixed lengths and the symbol (7) for unlocked.
2. Enter the values for all telescopic sections, e.g.
unlocked, 100%, 100%, 100%, 100%.
NOTE: You can cancel the entry at any time using the Esc
button (1).
3. Press and hold the left dead man's switch.
4. Confirm the entered values by pressing the Enter button
(9) once.
5. The entered values must correlate to the actual boom
position to link the ECOS system to the boom.
Approving Entered Telescope Values
1. Press the F4 button (2) (Figure 3-59) once, the symbol
(3) appears.
2. Press the A, B, C buttons (1) in the order:
ABAC
3. The symbols (4) appear to confirm the entry.
If your input was incorrect, all the symbols (4) go out and you
need to repeat the input.
If the values entered are not permissible, the values on the telescope indicators (2) (Figure 3-60) turn red.
CAUTION
Equipment Damage Hazard!
Before working with the crane, check whether ECOS
indicates the correct telescope values and correct any
incorrect input.
Entering incorrect values may cause malfunctions and
result in damage to the telescoping mechanism.
