RT9150E OPERATOR MANUAL OPERATING CONTROLS AND PROCEDURES
Published 2-23-2017, Control # 644-00
Error Messages in the Monitoring Submenu
For more information on RCL error messages, refer to Error
Submenu, page 3-101
If the RCL detects an error, an error message is shown on
the RCL control unit.
There are different types of error messages:
• Error messages without shutdown,
• Error messages with shutdown.
Error Message without Shutdown

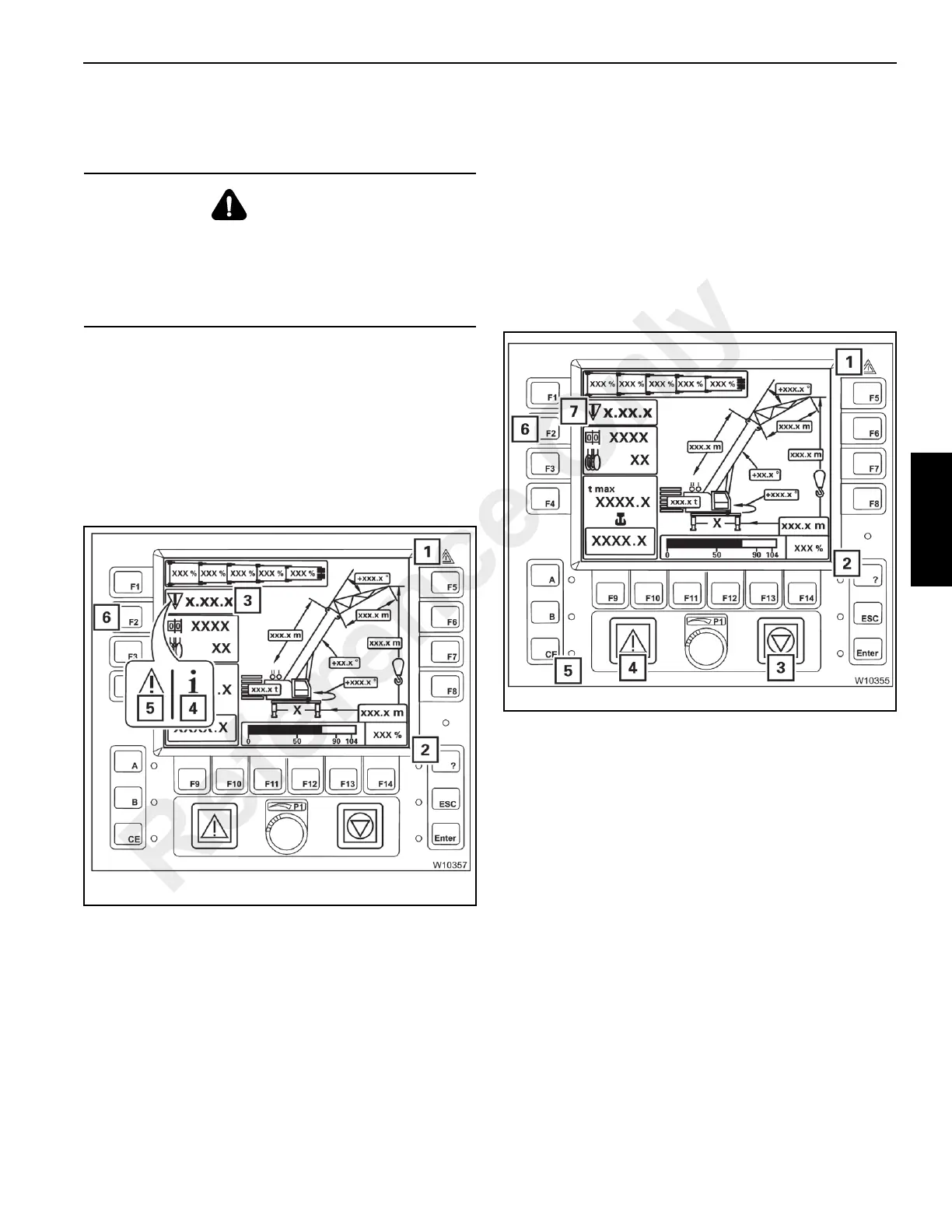

Refer to Figure 3-93.
The error message is displayed either as a warning or
information.
• The buzzer tone sounds once.
• Lamps (1) and (2) light up.
• Display (3) shows an error code and the respective
symbol flashes:
- (4) Information symbol
- (5) Warning symbol
You can have all existing error messages displayed by
repeatedly pressing the F2 button (6).
Try to remedy the error by turning off the ignition and turning
it on again after about 15 seconds.
If the error is displayed again, check whether the error code
is contained in the Error Codes table. This table contains
information on how to remedy errors, refer to Error Codes,
page 3-103.
Error Message with Shutdown
Refer to Figure 3-94.
When this type of error occurs:
• All crane movements are turned off which are not
required for the correction of the error.
• A continuous buzzer tone sounds.
After five seconds, you can switch off the buzzer
tone using the CE button (5).
• Lamps (1) and (2) light up.
• Lamps (3) and (4) light up.
• Display (7) shows an error code and the error symbol
flashes.
You can have all existing error messages displayed by
repeatedly pressing the F2 button (6).
Check whether the Error Codes table contains the error.
These tables contain information on how to remedy errors,
refer to Error Codes, page 3-103.
WARNING
Immediately stop operating the crane if an error message
is displayed! Take the appropriate actions before
resuming operation.
The RCL may only be repaired by trained and qualified
personnel.
