Manitowoc Grove RT9150E User Manual

OPERATING CONTROLS AND PROCEDURES RT9150E OPERATOR MANUAL
3-90
Published 2-23-2017, Control # 644-00
15
Current swing
angle display
Shows the angle of the current
superstructure position.
0° means that the superstructure is
swung to the front.
• 0°: Position 0° to the front
• 180°: Position 180° to the rear
• +0.1 to +180.0°: Turned to the right
from 0°
• –0.1 to –179.9°: Turned to the left
from 0°
16
Current working
radius
Shows the current working radius =
horizontal distance between the
turntable axis and the hook block axis.
The displayed value is calculated on
the basis of the telescoping and the
main boom or boom extension angle.
The value is displayed either in meters
(m) or feet (ft), depending on the
setting.
17
Current percent of
maximum load
The percent of max. load shows the
weight of the current load as a
percentage of the maximum possible
load. The display (1) indicates the
percentage value. The display (2)
shows the ranges in different colors:
• Blue: 0 - 90%
• Yellow: Approx. 90 -100%, early
warning
• Red: Greater than 100%, shutdown.
18
Load Chart
submenu, F6
Press the F6 button to open the Load
Chart submenu.

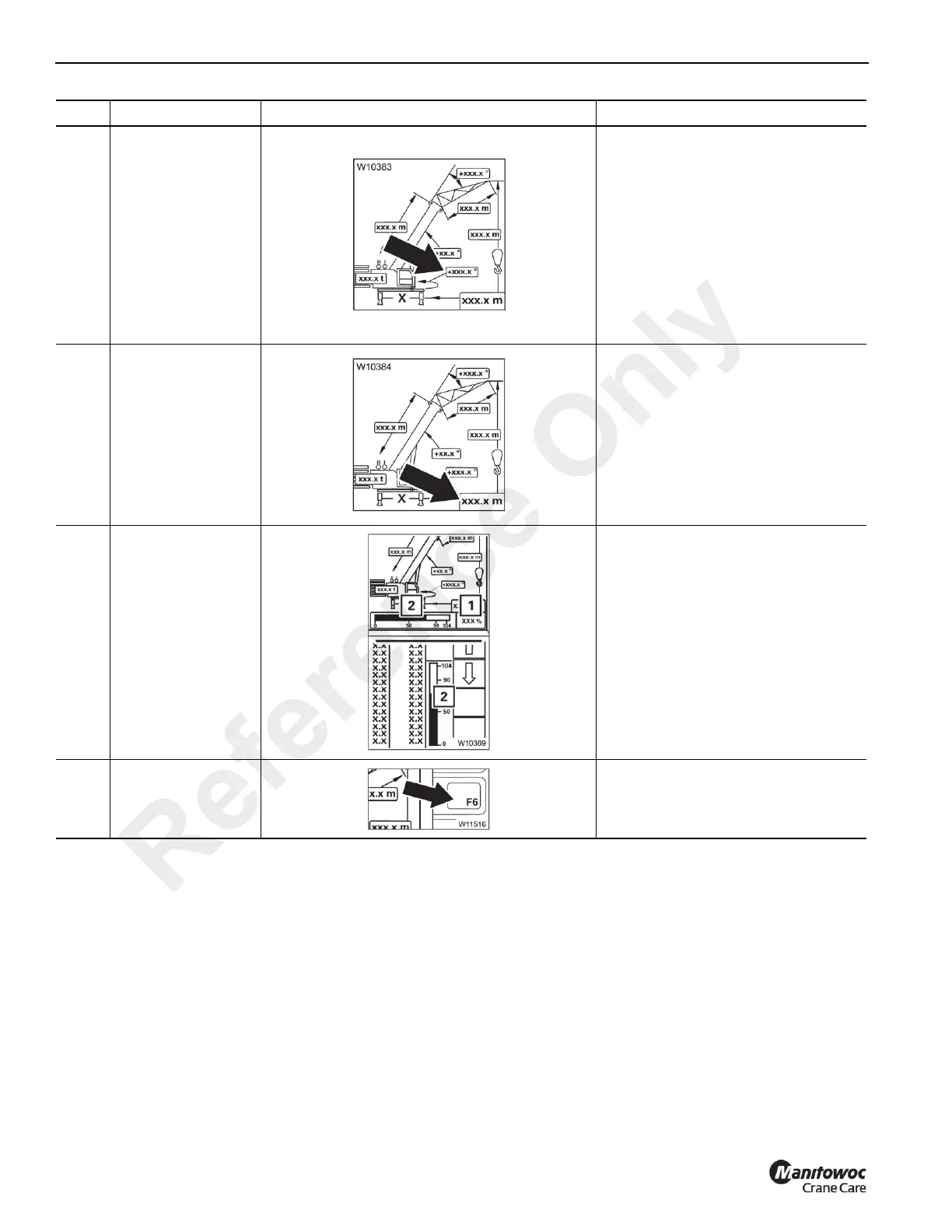

Item Description Graphic Explanation
Reference Only
