RT9150E OPERATOR MANUAL OPERATING CONTROLS AND PROCEDURES
3
Published 2-23-2017, Control # 644-00
Grove
After Crane Shutdown of up to 48 Hours
Refer to RCL Monitoring submenu, Figure 3-121.
The RCL Monitoring submenu opens if the crane was
shutdown for less than 48 hours.
The last set rigging mode is displayed, and the symbols (1)
and (2) are green and flash.
You can accept the displayed values if they correspond to
the actual rigging of the crane:
• Press the Enter button (3) once, the symbols (1) and (2)
stop flashing.
• The lamps (4) and (5) go out. The RCL code is
accepted.
If no error message is displayed, the RCL is set for crane
operation and the crane functions are enabled.
Any pending errors are indicated on the display (6), refer to
Error Messages in the Monitoring Submenu, page 3-91.
You must re-enter the current rigging if the displayed values
do not correspond to the actual rigging mode of the crane,
refer to Entering the Rigging Mode, page 3-81.
After Crane Shutdown of more than 48 Hours
Refer to Figure 3-122.
If the crane was shutdown for more than 48 hours the Enter
Rigging Mode submenu opens:
• The SLI code 1100 (2) is displayed along with the
corresponding rigging mode,
• The last reeving entered (1) is displayed.
You must now enter the actual rigging, refer to Entering the
Rigging Mode, page 3-81.
Prior to Crane Operation
NOTE: Crane functions are only enabled when the RCL
Monitoring submenu is open, refer to RCL
Monitoring Submenu, page 3-86.
After Crane Shutdown of less than 48 hours the Monitoring
submenu opens automatically.
After Crane Shutdown of more than 48 hours and after
accepting a rigging mode—refer to Approve the Rigging
Mode, page 3-84—the Monitoring submenu opens
automatically.
Opening the Submenu Manually
Refer to Figure 3-123.

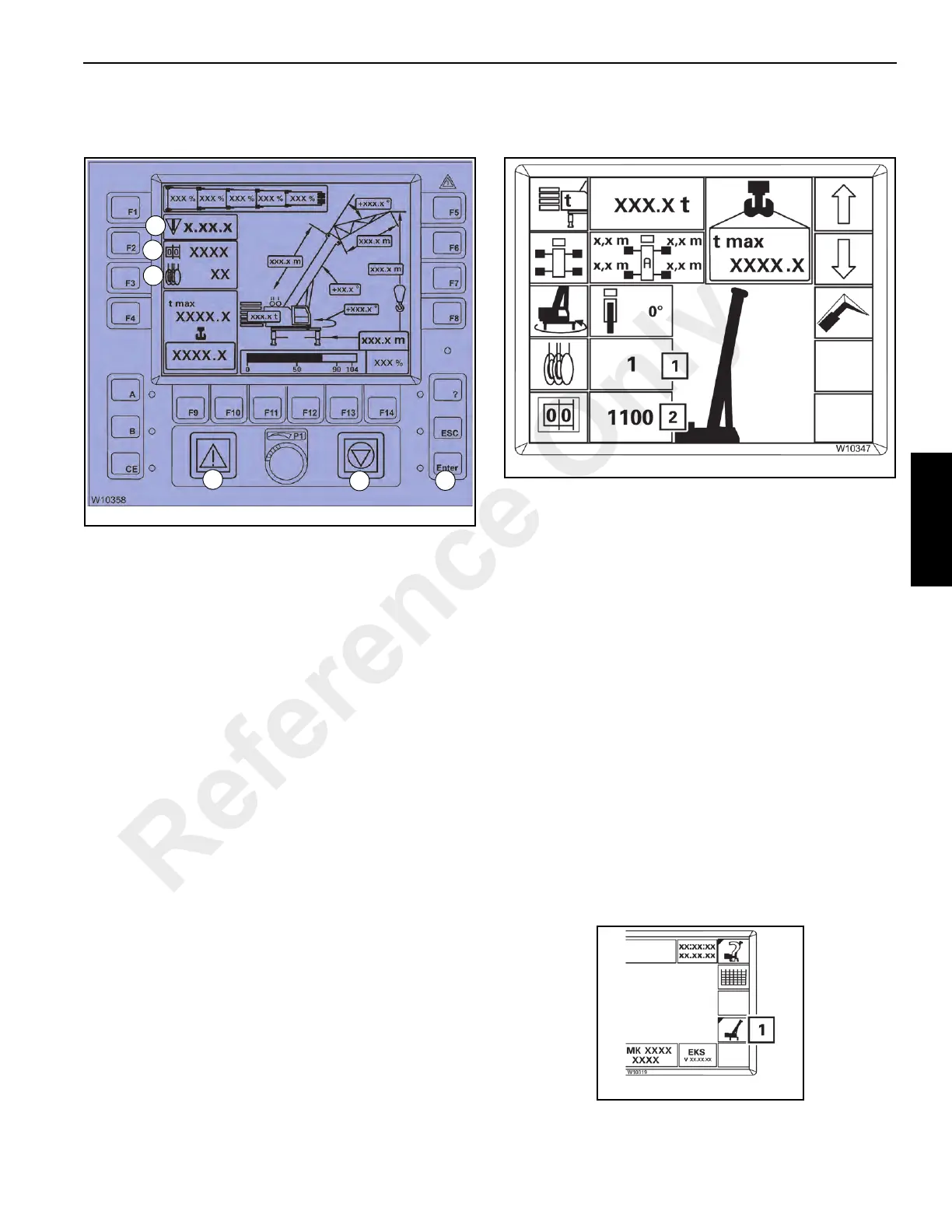

FIGURE 3-121
1
2
3
4
5
6
FIGURE 3-122
FIGURE 3-123
