RT9150E OPERATOR MANUAL OPERATING CONTROLS AND PROCEDURES
Published 2-23-2017, Control # 644-00

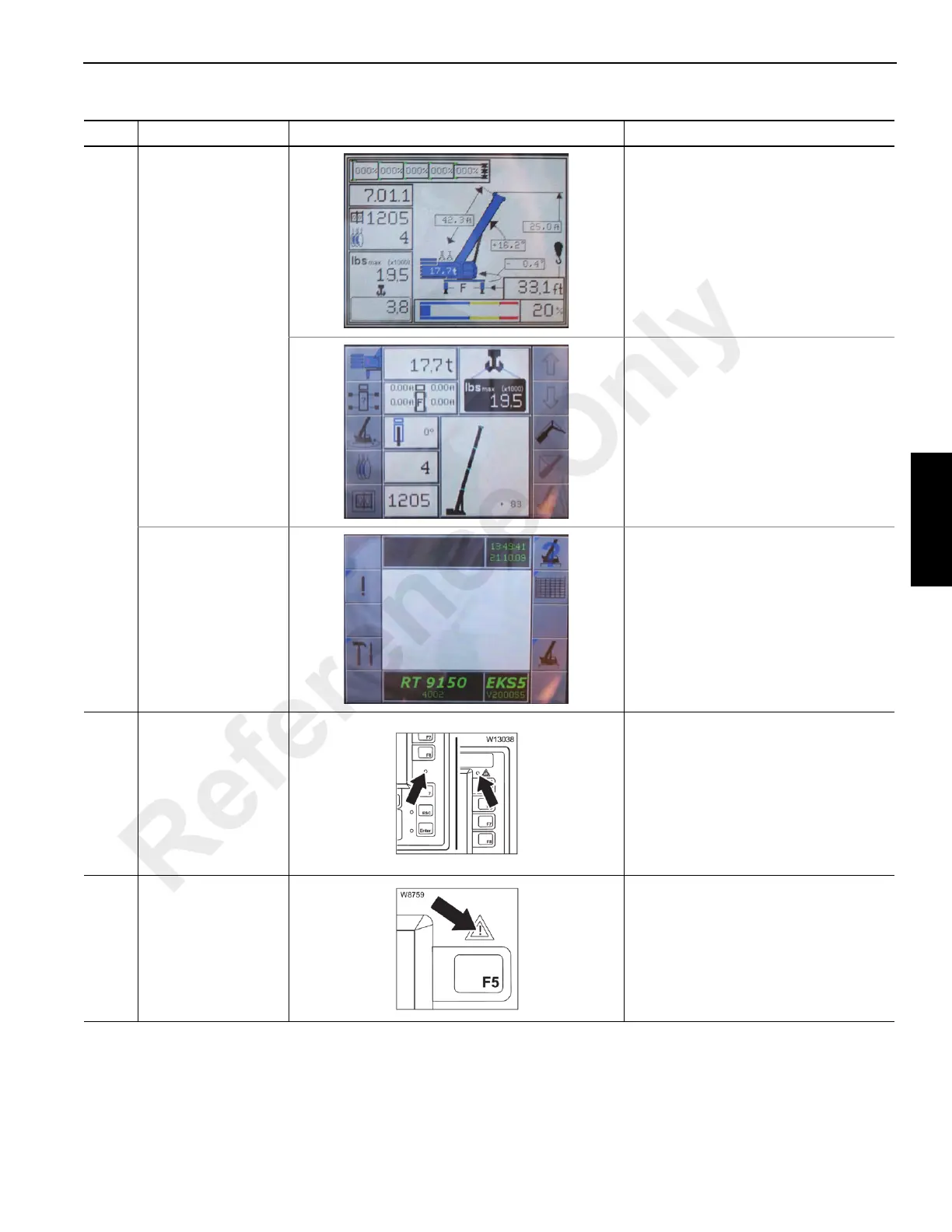

Item Description Graphic Explanation
1
RCL display
After a standstill of up to 48 hours
Ignition on: Monitoring submenu
opens.
Refer to RCL Monitoring Submenu,
page 3-86.
After a standstill of more than 48
hours
Ignition on: Enter rigging mode
submenu opens.
Refer to Rigging Mode Monitoring
Submenu, page 3-85.
Main menu
overview
The main menu shows symbols for
further submenus and symbols for
current displays.
Refer to RCL Main Menu, page 3-75.
2
Sensor for
brightness
1
Registers the brightness of the
operating environment. The brightness
of all displays are automatically
adjusted.
Refer to Adjusting the Brightness of the
Display, page 3-57 to manually set the
minimum brightness.
3
Error/warning
message
• Flashing: New warning message or
error has occurred
• On: Error acknowledged, but still
present
• Off: No warning message or error
present
