OPERATING CONTROLS AND PROCEDURES RT9150E OPERATOR MANUAL
3-88
Published 2-23-2017, Control # 644-00
6
Current load
display

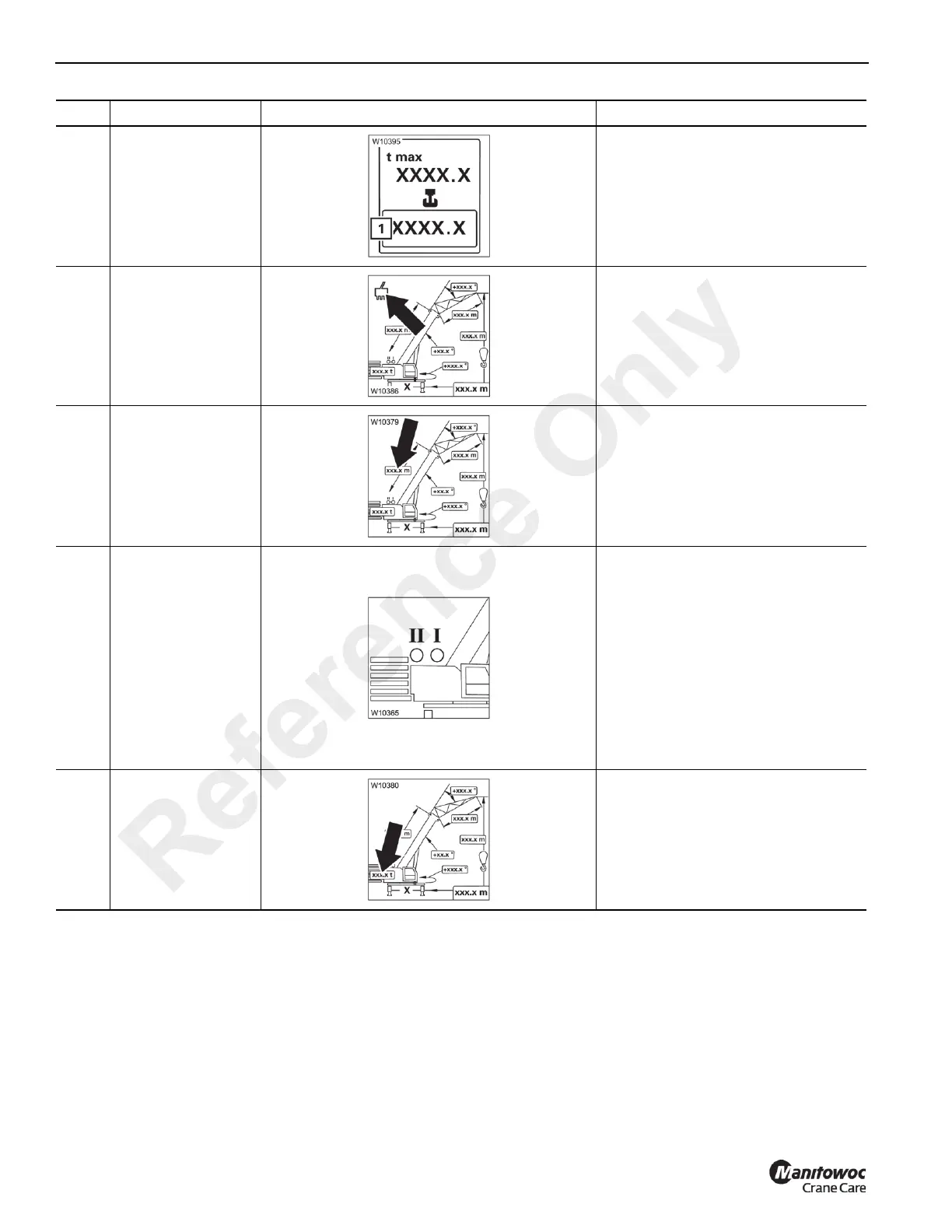

The display (1) shows the sum of the
payload + lifting gear + hook block in
metric tons (t) or kilo pounds (klbs),
precision ± 5% of actual load.
Example: 55.2 klbs is equal to 55,200
lbs.
7
Service symbol
display
When the Symbol is displayed a
service device is connected.
8
Current main
boom length
Shows the current main boom length in
metres (m) or feet (ft).
9 Hoists display
• I on: Main hoist switched on first,
displayed reeving applies to main
hoist
• II on: Auxiliary hoist switched on
first, displayed reeving applies to
auxiliary hoist
• I or II flashing: Corresponding
hoist switched on as well, displayed
reeving applies to the other hoist
• I or II out: Corresponding hoist
switched off
10
Counterweight
display
Required counterweight combination
in metric tons (t) for displayed RCL
code.
