OPERATING CONTROLS AND PROCEDURES RT9150E OPERATOR MANUAL
3-18
Published 2-23-2017, Control # 644-00

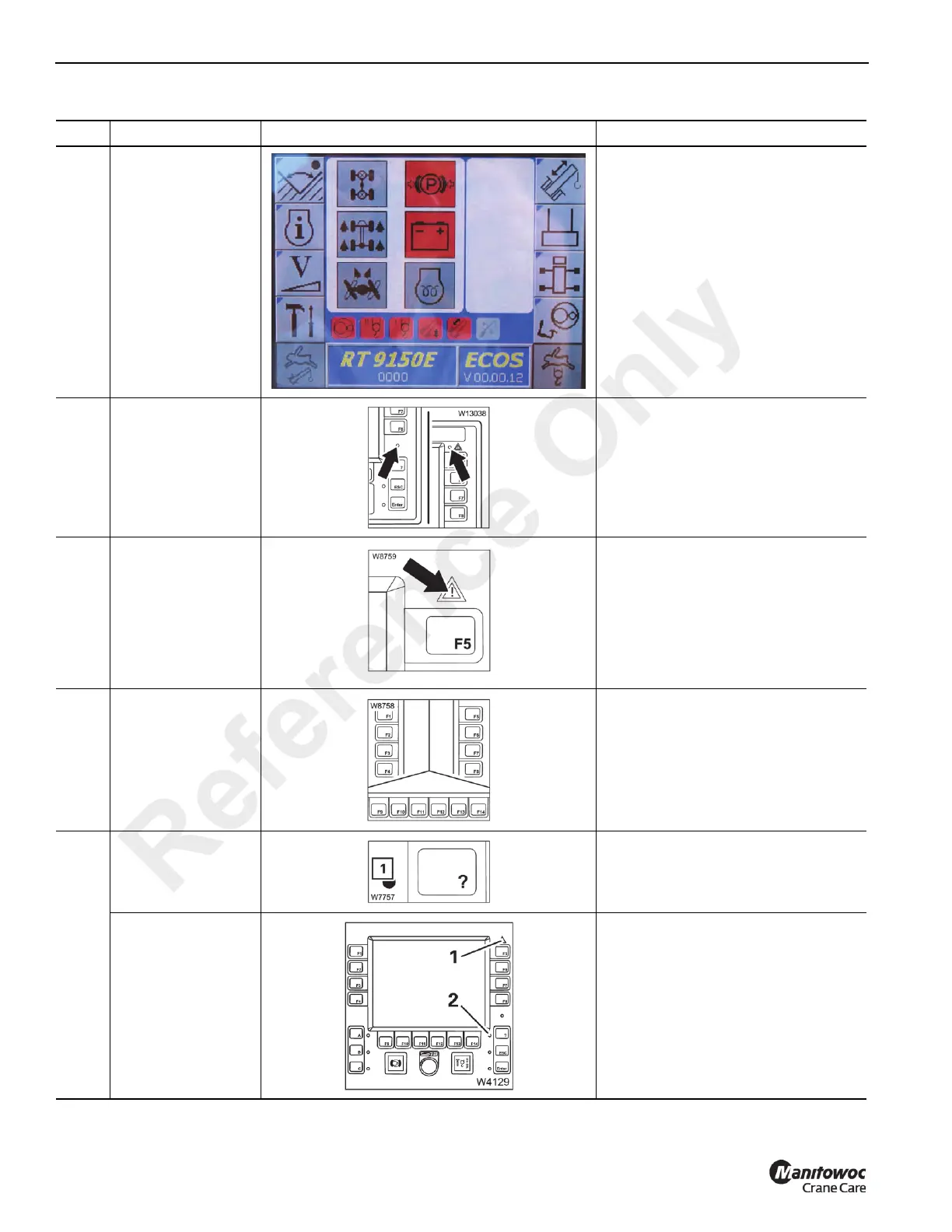

Item Description Graphic Explanation
1
ECOS display:
Main menu
overview
The main menu appears after
switching on the ignition.
The symbols, four per side, which
represent submenus are indicated at
the top left by a blue corner.
Submenus are opened by pressing the
button next to the respective symbol.
Refer to Main Menu, page 3-21.
2 or
5
Sensor for
brightness
Registers the brightness of the
operating environment. The brightness
of all displays are automatically
adjusted.
Refer to Adjusting the Brightness of the
Display, page 3-57 to manually set the
minimum brightness.
3
Error/warning
message
• Flashing: new warning message or
error has occurred
• On: error acknowledged, but still
present
• Off: no warning message or error
present
Refer to Error Messages, page 3-66.
4 Buttons F1 to F14
The function of buttons F1 to F14 is
shown on the symbol next to or above
the button. Push the button once, the
function displayed is executed.
6
Opening the Error
submenu
The lamp (1) lights up or flashes.
Press the button once to open the
Error Submenu.
Error submenu
overview
ECOS differentiates between error
messages and warning messages.
In the event of an error message, the
lamps (1) and (2) flash.
More information on error messages,
refer to Error Messages, page 3-66.
