Masimo Root User Manual

Root NIBPT Chapter 2: Setting Up
www.masimo.com 26 Masimo

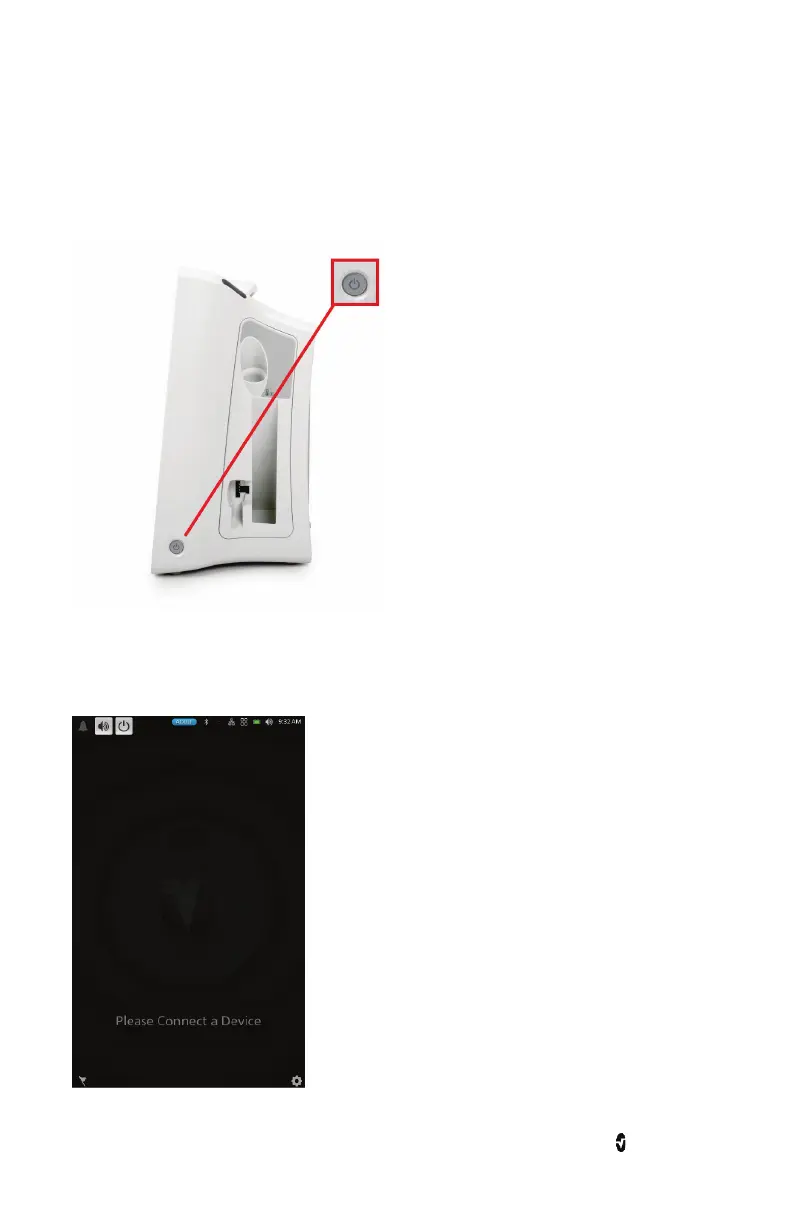

Power On
The Power Button can be used for Power On, Sleep, and Power Off. To Power On, press the
Power Button for two (2) seconds until a single audible tone sounds.
Once Root turns on, if no Radical-7, Radius-7, or MOC-9 module is connected, the Root display
shows the following message: Please Connect a Device. The user is now able to connect
Radical-7, Radius-7, and MOC-9 module.
For information about Sleep Mode and Power Off, see Sleep and Power Off on page 88.

Masimo Root Specifications

General

Category	Medical Equipment
Display	10.1 inch touchscreen
Connectivity	WiFi, Bluetooth
Power Supply	AC power
Dimensions	26.8 cm x 22.4 cm x 5.1 cm
Ports	USB, Ethernet
Supported Parameters	SpO2, Pulse Rate
Compatibility	Masimo sensors
Model	Root
