Masimo Root User Manual

Root NIBPT Chapter 3: Operation
www.masimo.com 41 Masimo
Understanding Windows
Root creates a Window for Radical-7, Radius-7, and compatible medical devices that are
connected to Root. Parameters or measurements can be expanded or minimized within a
Window to customize view. Radical-7 Windows are shown in the examples below.
Windows provide waveforms along with either a Trend View or an Analog View. Trend View
displays each parameter or measurement alongside a graph of its values over time. Analog
View displays values in relation to alarm ranges.
Details about the displayed information of parameters and measurements can be found in
the directions for use or Operator's Manual of Radical-7, Radius-7, and MOC-9 modules.

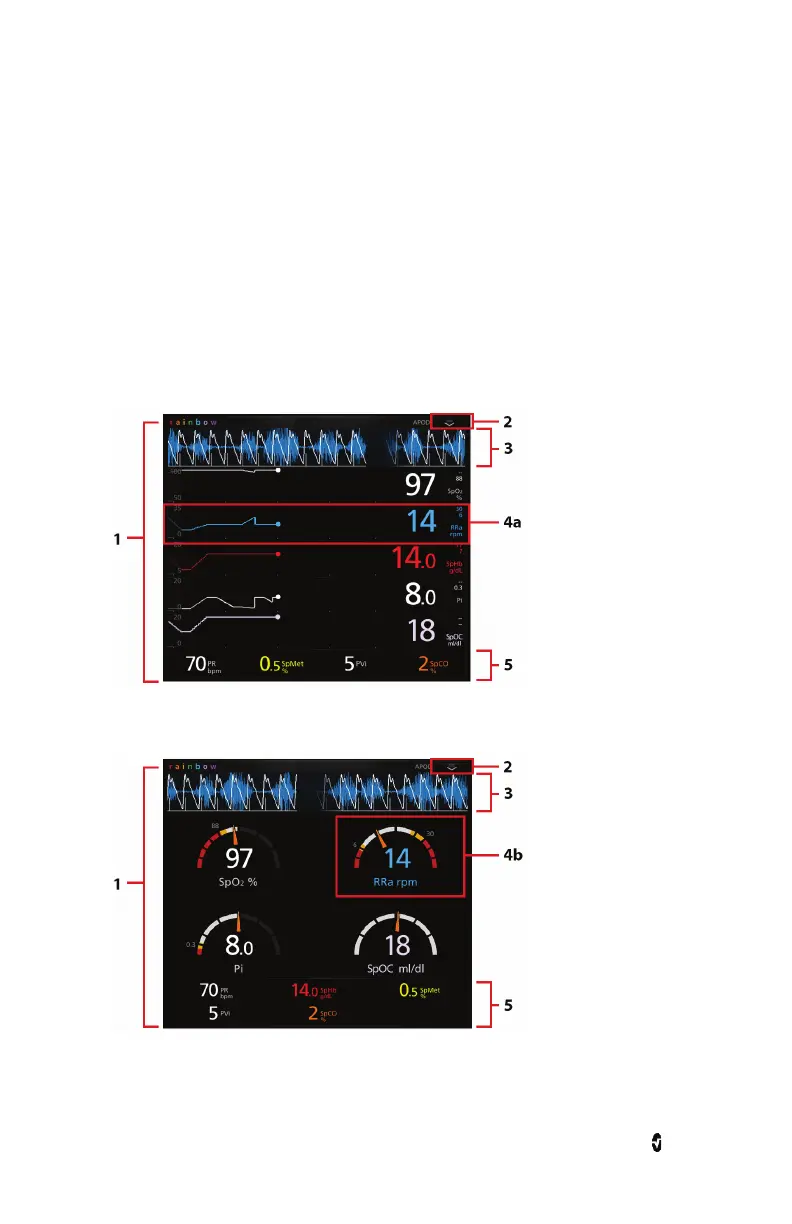

Trend View
Analog View

Masimo Root Specifications

General

Category	Medical Equipment
Display	10.1 inch touchscreen
Connectivity	WiFi, Bluetooth
Power Supply	AC power
Dimensions	26.8 cm x 22.4 cm x 5.1 cm
Ports	USB, Ethernet
Supported Parameters	SpO2, Pulse Rate
Compatibility	Masimo sensors
Model	Root
