Masimo Root User Manual

Root NIBPT Chapter 3: Operation
www.masimo.com 77 Masimo
Alarm Interface
Alarms can have different priority levels and come from different sources. The following
tables describe alarm behaviors in more detail.
Priority Alarm Sound
High 10-pulse burst
Medium 3-pulse burst
Alarm
Source
Example Explanation
Parameter
Level

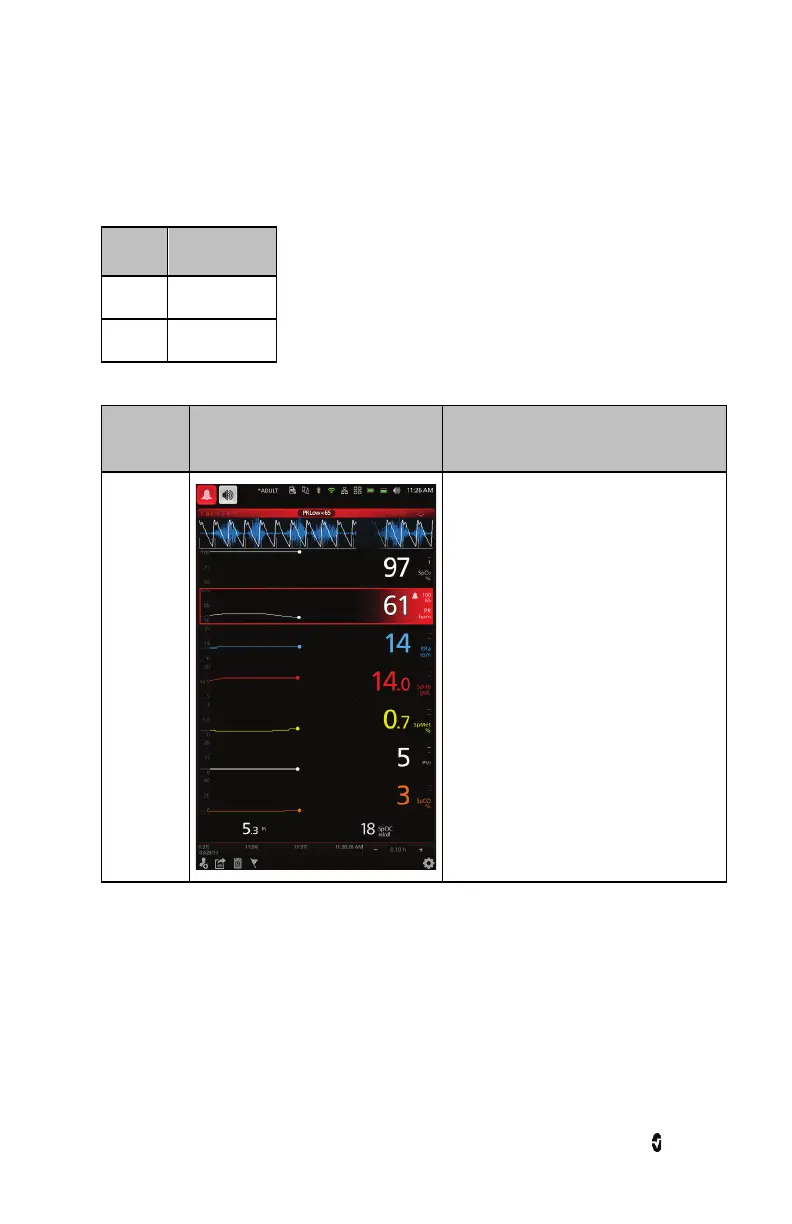

The example shown here is a PR alarm as
the reading (61) exceeds the lower alarm
limit (65).
Note: The borders of both the PR Trend
Display as well as the Window are
illuminated red, and the explanation of
the alarm is shown at the top of the
Window (PR Low < 65).

Masimo Root Specifications

General

Category	Medical Equipment
Display	10.1 inch touchscreen
Connectivity	WiFi, Bluetooth
Power Supply	AC power
Dimensions	26.8 cm x 22.4 cm x 5.1 cm
Ports	USB, Ethernet
Supported Parameters	SpO2, Pulse Rate
Compatibility	Masimo sensors
Model	Root
