Root NIBPT Chapter 2: Setting Up
www.masimo.com 30 Masimo
2. Insert the MOC-9 end of the module securely into a MOC-9 port on Root.
For more information about MOC-9 modules, see Chapter 10: MOC-9 on page 115.

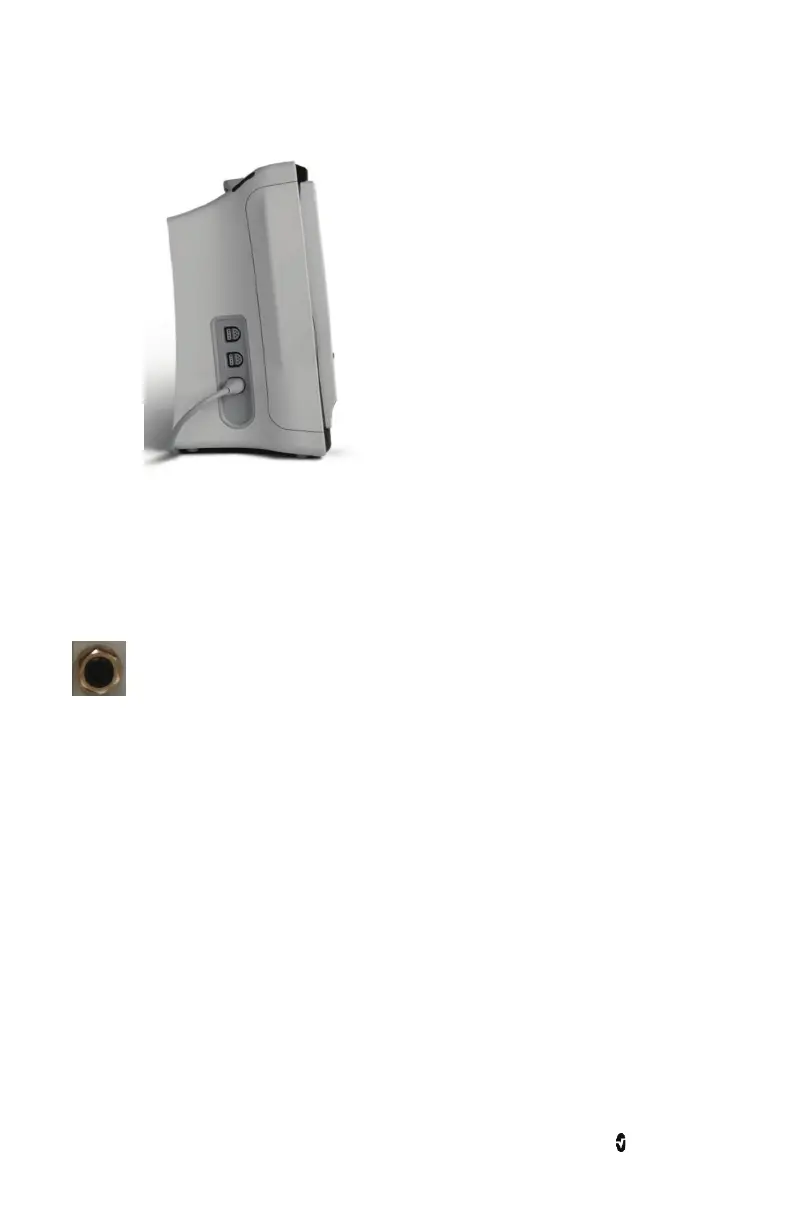

Nurse Call Connection
Use a Nurse Call connection cable to connect to a Nurse Call System.
To connect to a Nurse Call System
1. Identify the Nurse Call connection end (1/4 inch round female connector) of the
cable.
2. Insert the Nurse Call connection cable securely into the compatible port on Root.
3. Depending on the connection type of the Nurse Call System, it may be necessary to
orient the other end of the Nurse Call connection cable to fit correctly into the
system connection.
4. For more information, see Device Output on page 72.
Attach the Probe Well
For a list of compatible temperature probes and accessories, visit http://www.masimo.com/.
1. Align the probe well with the tabs facing up and down and insert the probe well
into the temperature module.
Note: The probe well snaps into place when it is fully seated.
2. Insert the temperature probe into the probe well.
To Next Page
