Available Layouts
From the Layout screen, touch Available Layouts.
When a Radical-7 or Radius-7 is docked to Root and/or multiple MOC-9 modules are
connected to Root, the user will have the option to select from several pre-configured layouts.

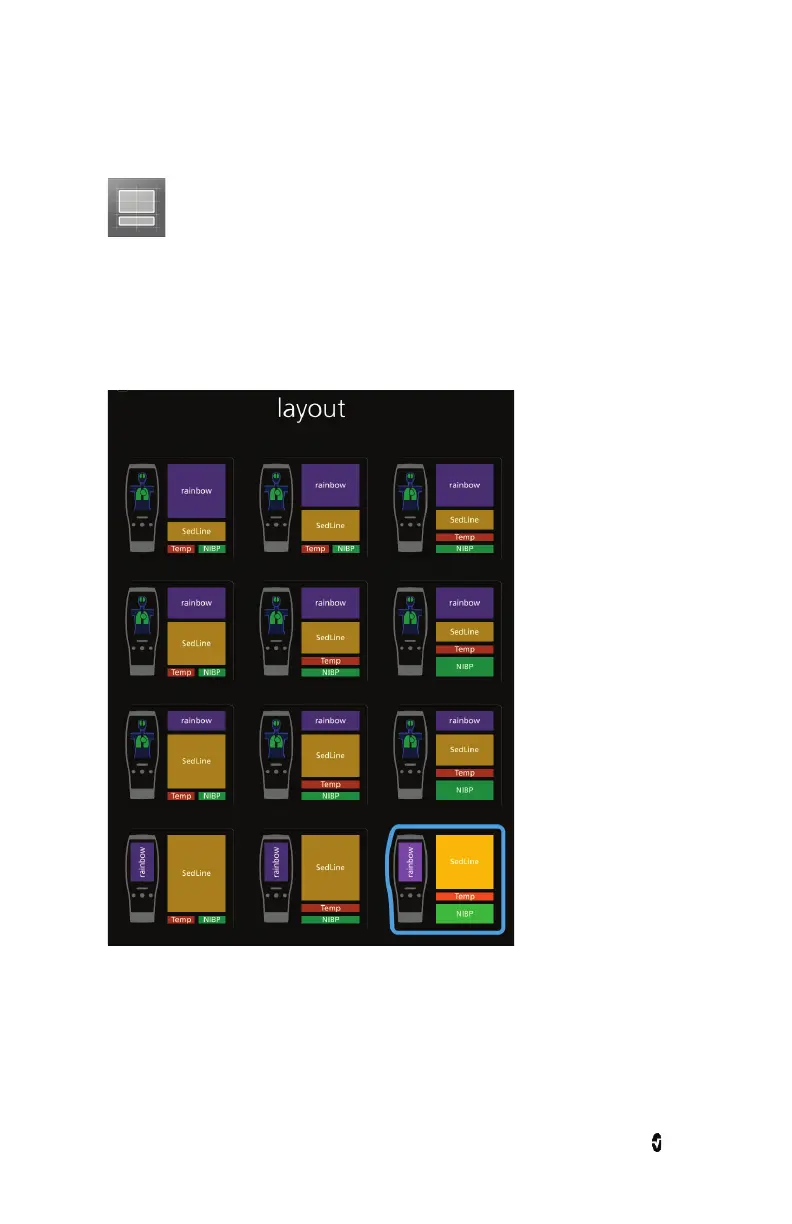

The image below is an example of Available Layouts in Root with Radical-7 docked.
Note: The rainbow window can be viewed on a Radical-7, using software v1.5.3.5 or greater, in
several of the pre-configured layouts.

Masimo Root Specifications

General

Category	Medical Equipment
Display	10.1 inch touchscreen
Connectivity	WiFi, Bluetooth
Power Supply	AC power
Dimensions	26.8 cm x 22.4 cm x 5.1 cm
Ports	USB, Ethernet
Supported Parameters	SpO2, Pulse Rate
Compatibility	Masimo sensors
Model	Root
