· Mid-speed:
o Start-up when the actual temperature is below the setpoint - dH - PA, or when the ambient
temperature drops below the setpoint - dH - 8;
o Cutout when the actual temperature is above the setpoint - dH , or when the ambient temperature
drops below the setpoint - dH - 10.
· High speed:
o Start-up when the actual temperature is below the setpoint - 2 x PA;
o Cutout when the actual temperature is above the setpoint - dH - PA, or when the ambient
temperature drops below the setpoint - dH - 8;

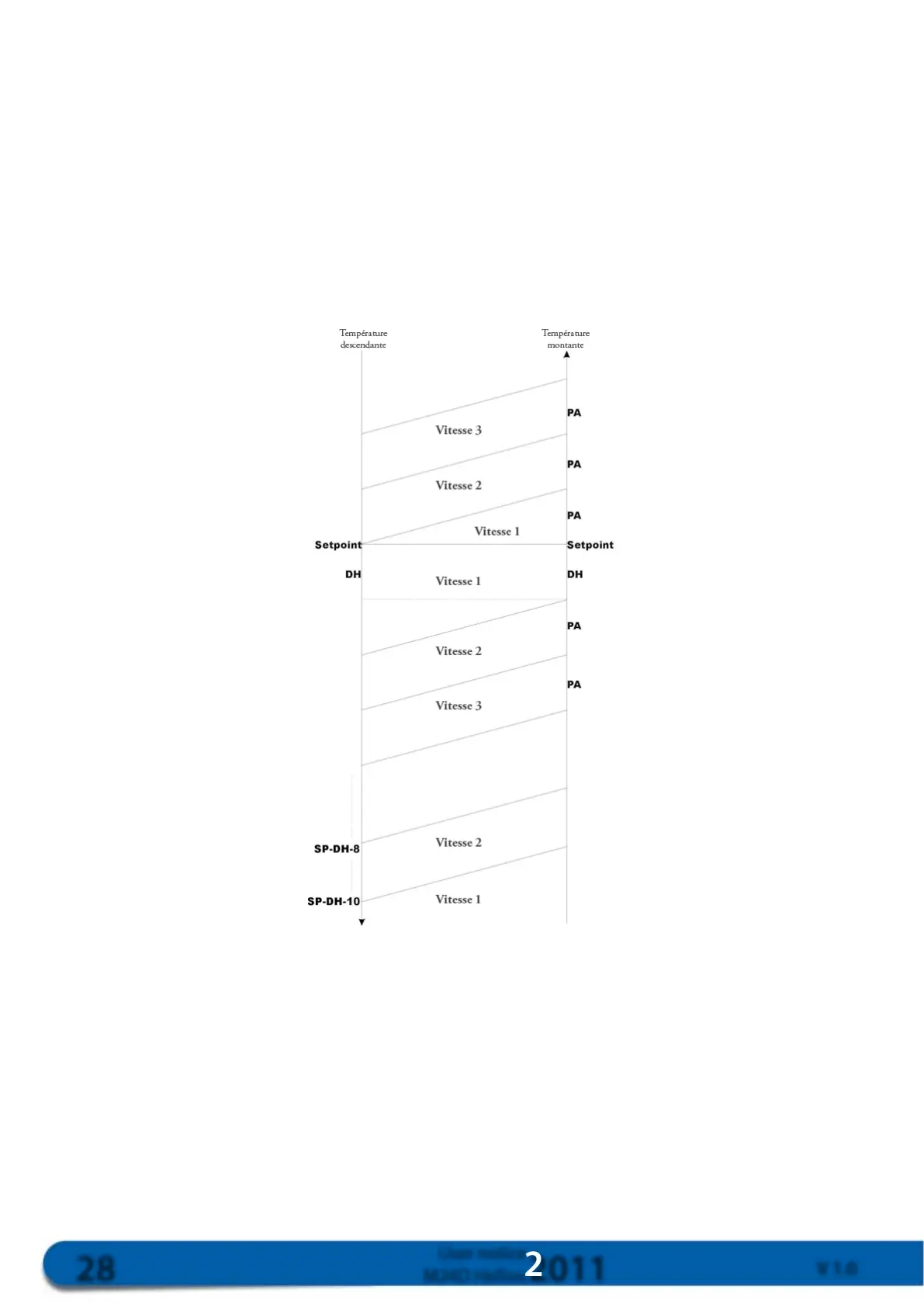

Graphic of the automatic ventilation system
4.5.7 Air conditioning and Heating
Air conditioning:
· When the outdoor temperature is below 5ºC, the air conditioning is disabled.
· When the outdoor temperature is equal to or above 5ºC, the air conditioning will cut-in automatically
when the temperature climbs above the setpoint + parameter. The air conditioning will cutout automatically when
