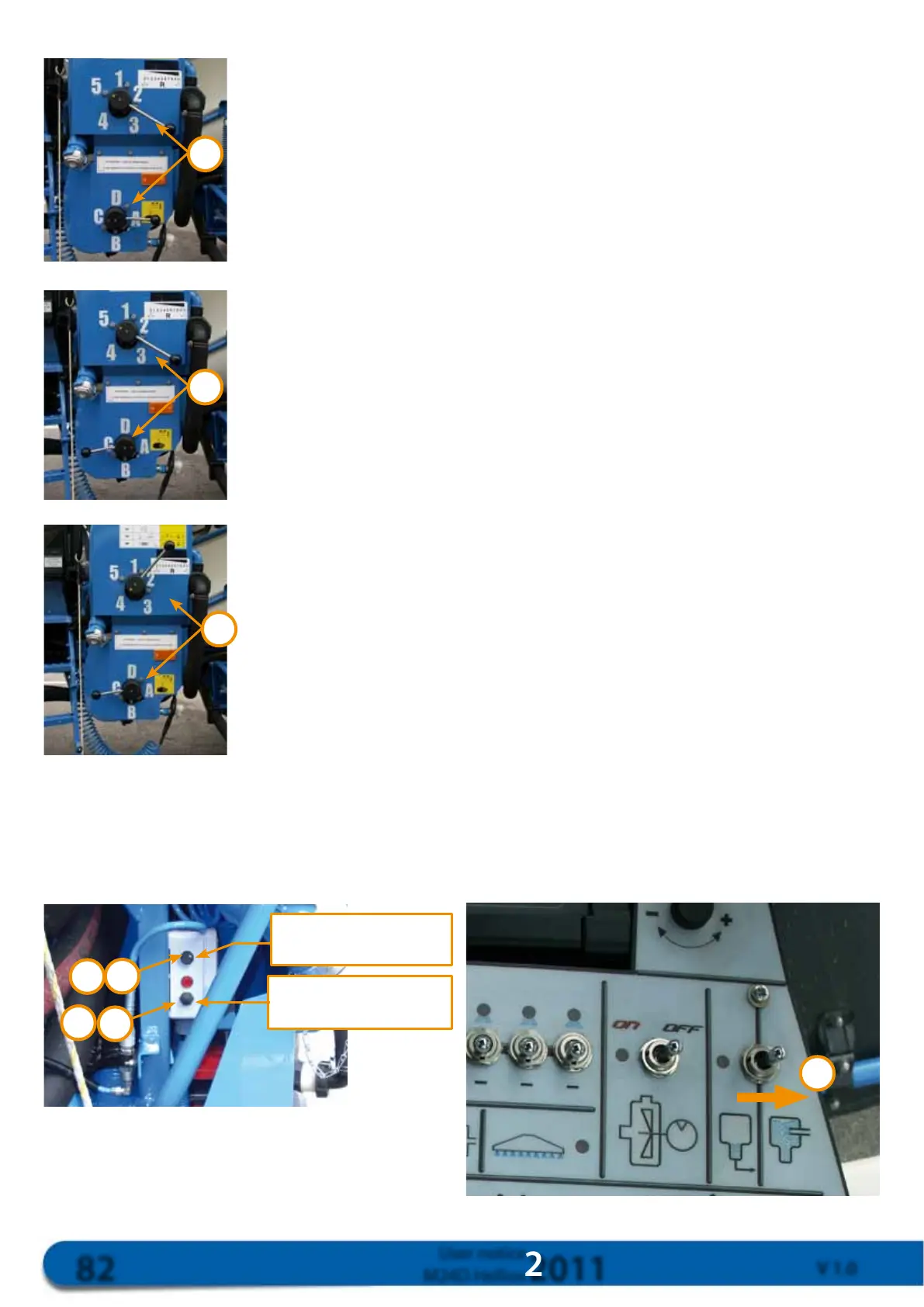

10.6. Spray arms (rinsing tank suction) - Position 5 C
The main tank is empty
The water rinsing tank
1. Rotate the valves to position 5 C
2. Engage the pump
3 Set the combustion engine to mid-power
As soon as the procedure is complete
4. Reduce engine power
5. Disengage the pump
10.7. Spray arms (main tank suction) - Position 5 A
After having placed enough water in the main tank, possibly with an added cleaning
product
1. Rotate the valves to position 5 A
2. Engage the pump
3 Set the combustion engine to mid-power
As soon as the procedure is complete
4. Reduce engine power
5. Disengage the pump
10.8. Transfer (main tank to external tank) - Position 4 A
1. Set the tank bottom valve to the mixing position
2. Remove the cap from the external discharge symmetrical half union (⑦ pg. 68)
3. Connect the transfer pipe
4. Rotate the valves to position 4 A
With the combustion engine at idle
5. Engage the pump
6. Gradually accelerate the engine to mid-power
As soon as the procedure is complete
7. Reduce engine power
8. Disengage the pump
9. Disconnect the transfer pipe
10. Refite the cap on the external discharge symmetrical half union (⑦ pg. 68)
Pump engagement/
disengagement
Engine acceleration/
deceleration
