Before moving the boom, make sure that nobody is in the immediate vicinity
of the machine, that the machine is not located under an electrical cable,
and that no obstacle exists. Extend/retract the boom with the self-propelled
machine stopped.
5.6.1. Extending the booms
◦
Ensure that the self-propelled machine is on the flat and stopped (zero speed and
joystick at neutral) and that the engine is running at 1 500 rpm.
◦ Set switch ① to ON, the indicator will light up.
◦ Push ② to the right or press ⑪ to activate the left boom. The left boom will leave its support bracket.
◦ Push ④ to the left or press ⑫ to activate the right boom. The right boom will leave its support
bracket.
◦ If necessary, push ⑤ upwards or press ⑯ to raise the entire boom assembly.
◦ Push ③ to the right to check that the boom assembly is locked into position before opening the arms.
◦ Push ⑦ to the right to extend the main arms.
◦ Push ② to the left or press ⑭ to activate the left boom and bring the left boom horizontal
◦ Push ④ to the right or press ⑬ to activate the right boom and bring the right boom horizontal.
◦ Rotate ⑲ clockwise to release the boom frame
◦ Press ⑮ or push ⑤ downwards to lower the boom assembly to approx. 1 metre above the ground.
◦ Push ⑧ to the left to extend the outer left arm.
◦ Push ⑥ to the right to extend the outer right arm.
◦ Push ③ to the left to release the pendular boom assembly and spray boom (pendular movement is then
possible).
Do not move the outer arms at the same time as the inner arms.
◦

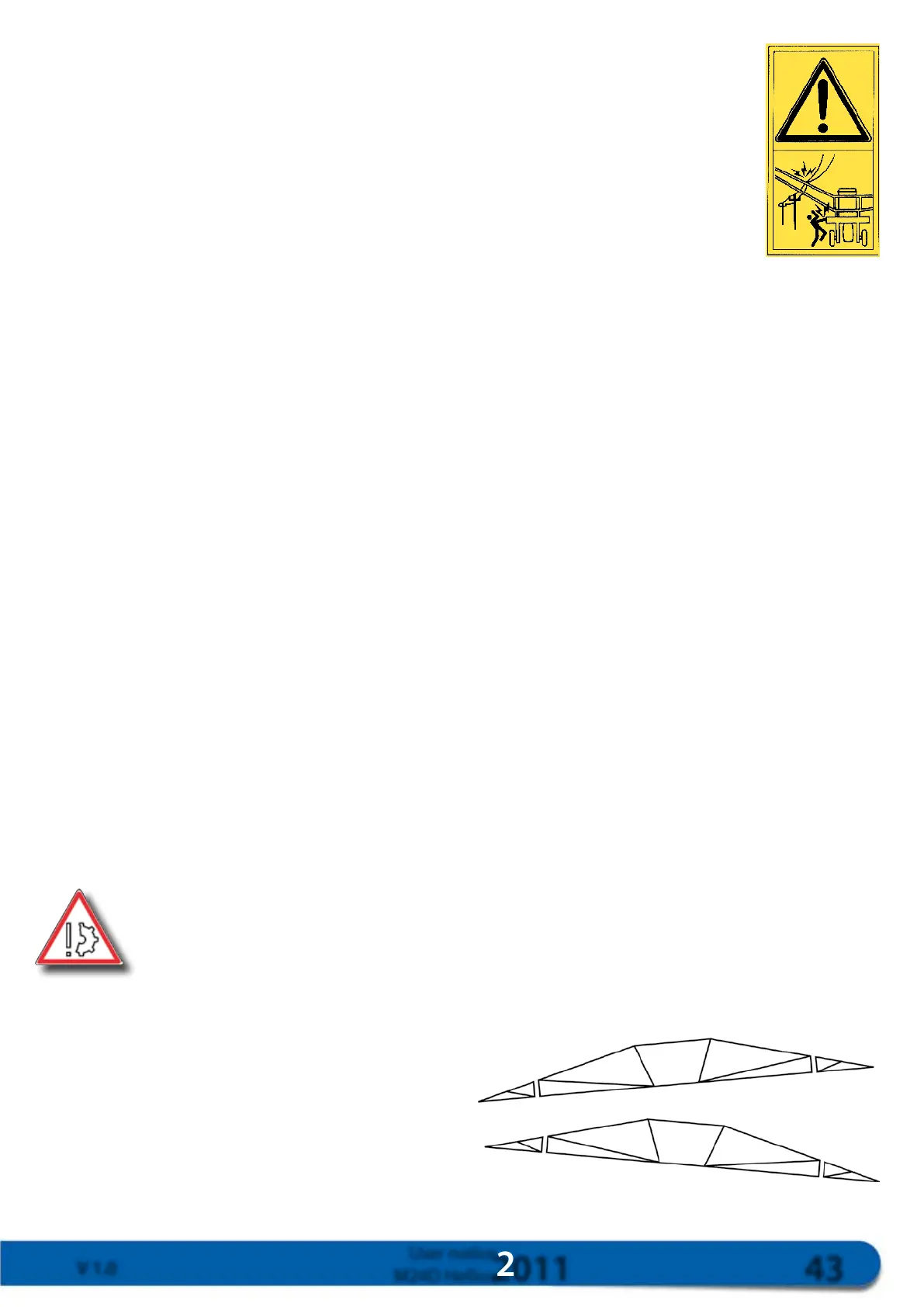

Use ⑰ to correct for slopes.
Push ⑰ to the left, the boom will tilt as
shown opposite.
Push ⑰ to the right, the boom will tilt as
shown opposite.
The boom is in the Spray configuration.
