6.2. Adjusting hydraulic pressure
Pressures are pre-set at the factory and must only be modified with precaution and the approval of
MATROT Équipements or personnel of MATROT Équipements.
Pressure must be adjusted using a pressure gauge.
Hydraulic fluid may be at a high temperature.
6.2.1. e distribution unit
>(lifting, extension & retraction of booms; deployment, slopes)
◦ This unit is located under the cab (photo 85),
◦ For improved access, pivot the unit after loosening
the 2 bolts.
◦ Connect the pressure gauge (to the boom blocking
actuator),
◦ Loosen the locknut ① (photo 86),
◦
Tighten/loosen the screw to increase/decrease pressure
②
,
◦ Retighten the locknut.
◦ Pressure: 180 bar (max. 200 bar).
6.2.2. e spray pump control distributor
(Photo 87)
◦ Remove the cap ⑤ and connect the pressure gauge,
◦Loosen the locknut ④,
◦T
ighten/loosen the screw to increase/decrease pressure
③,
◦ Retighten the nut.
◦ Pressure: 180 bars.

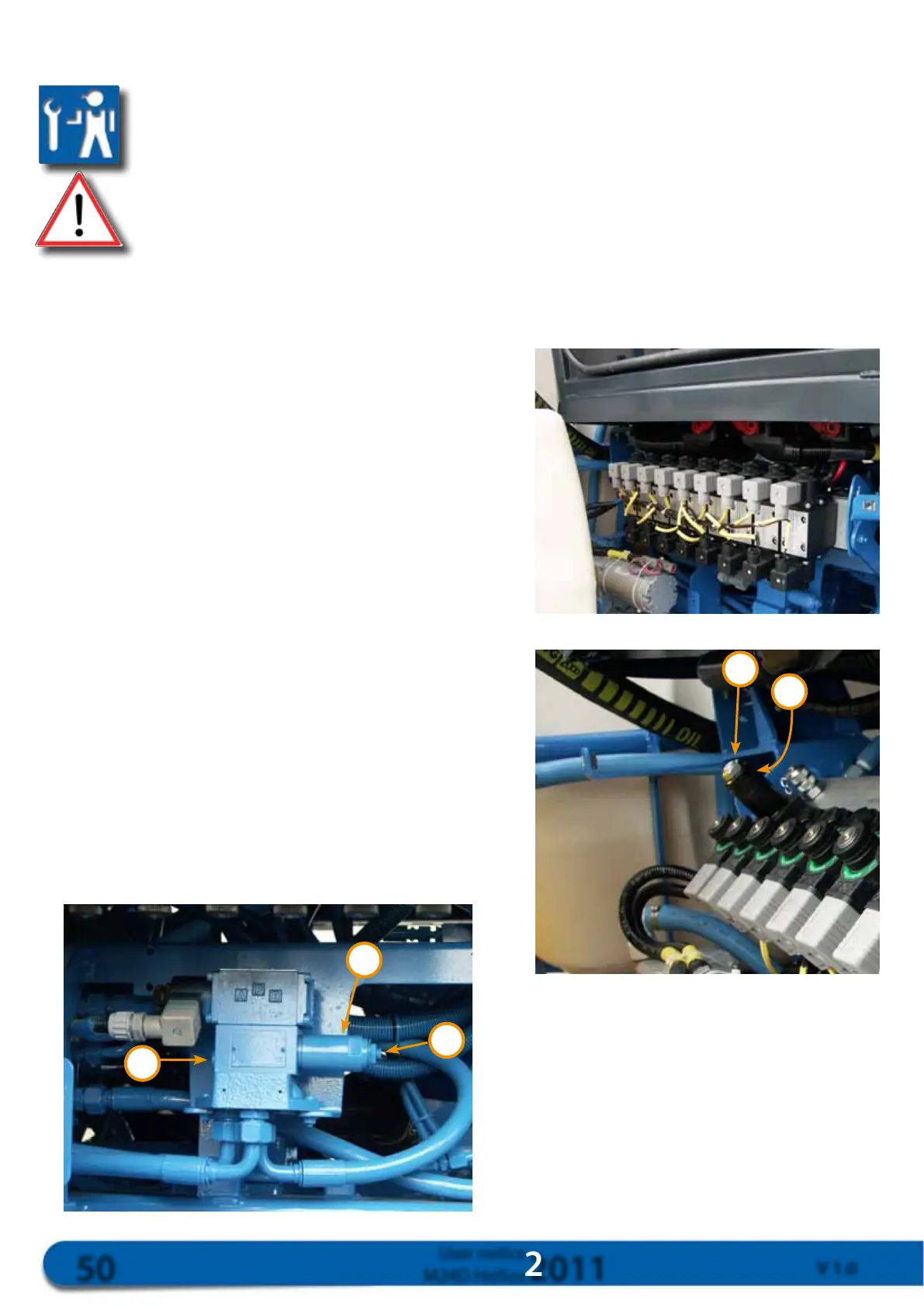

Photo 85 , photo 86
Photo 87
