2011 51
User notice
M24D Hellios
V 1.0
6
6.2.3. Hydrostatic pump (forward movement)
See paragraph 6.2.6 page 48.

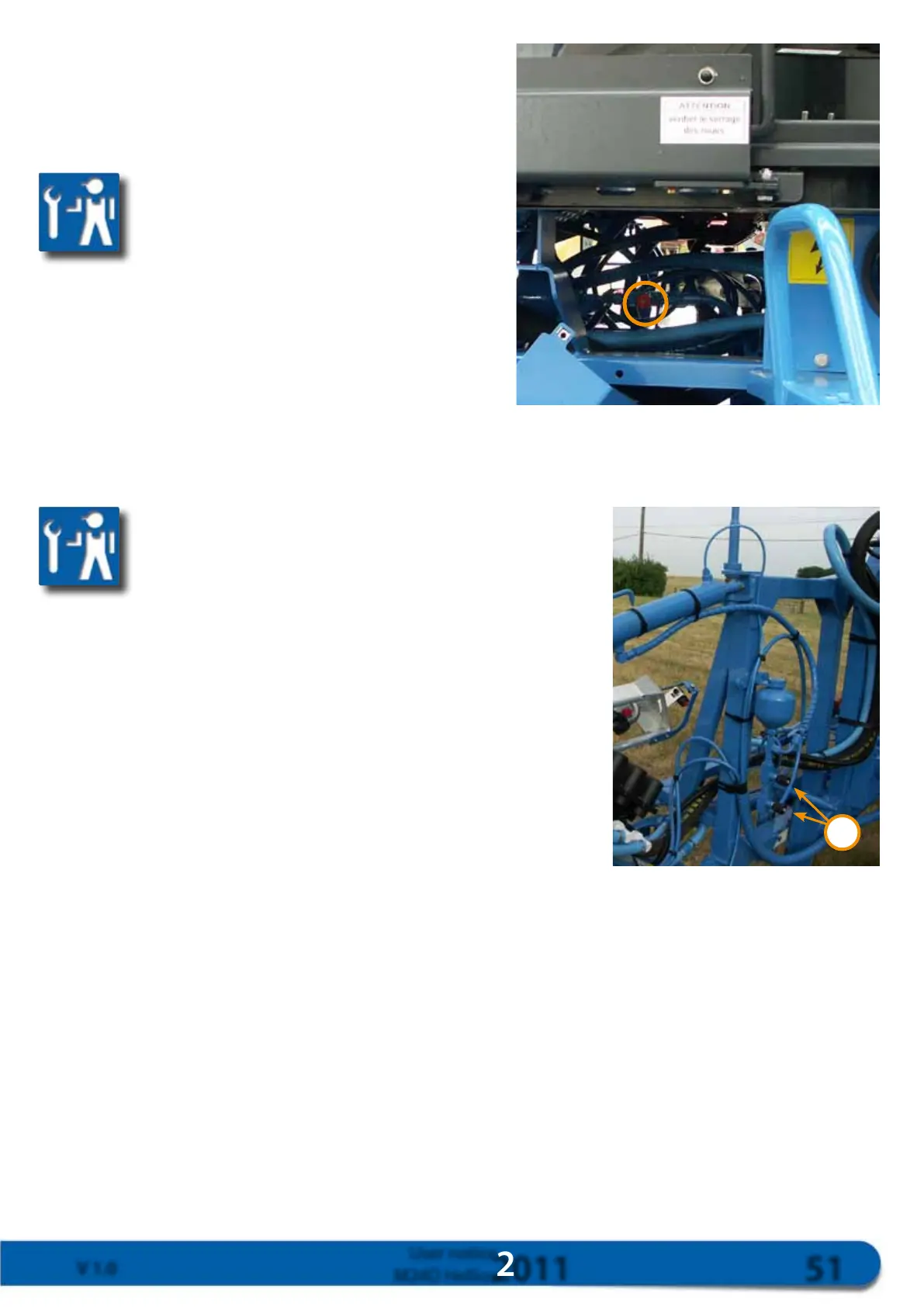

6.2.4. Adjusting up/down speed
This speed is pre-set at the factory and must
only be modified by a MATROT Équipements'
technician or other member of personnel.
6.2.5. Adjusting boom extension speed and slope correction
◦
This speed is pre-set at the factory and must only be modified by a MATROT Équipements'
technician or other member of personnel.
◦Flow controllers for boom extension actuators are jets
located in the connector at the actuator inlet.
◦The diameters of the jet orifices are determined based on
the widths of the booms and their usages.
◦Boom actuators are fitted with adjustable flow limiters:
one for lifting and one for lowering the boom ⑥. They are
configured at the factory; if they need adjusting: loosen the
small screw on the handle, and adjust progressively (screw
to slow down and unscrew to speed up). Retighten the
small screw on the handle.
