10.3 Intensive mixing - Position 1A + R0
On the road: from the farm to the field

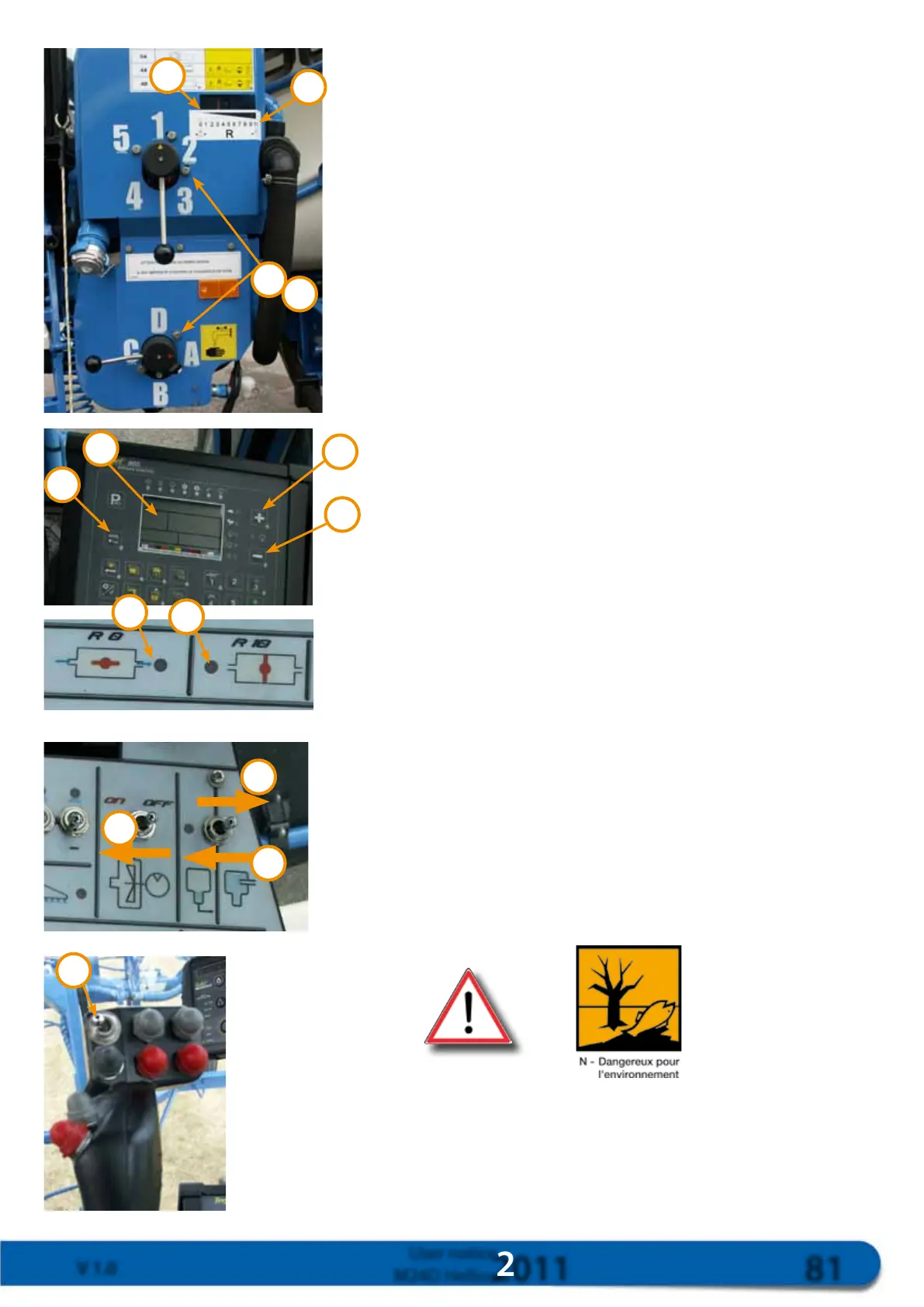

1. Rotate the valves to position 1 A (Spray) 󱟂
2. Program the type of jet and quantity/hectare using the 860
control panel
1
󱟃
3. Activate the manual key
1
󱟄
4. Press ⊖ 󱟅 until the control valve is completely open. Position
of the external slide valve R 0 󱟆 and travel stop indicator R 0
󱟇 lit
5. Set the tank bottom valve to the mixing position 󱟈
Main solenoid valve to off
Combustion engine at idle
6. Engage the pump 󱟉
10.4. Mixing and Spraying - Position 1 A
In the fields
Combustion engine at maximum power
1. Activate the automatic key 󱟄. De-activate the manual key)
1
2. Open the sections and the main valve 󱟊
1
Refer to the manual for the 860 control panel
10.5. Rinsing - Position 1 C + R 10
1. Rotate the valves to position 1 C 󱟋
2. Activate the manual key on the 860 control panel 󱟄
3. Press ⊕ 󱟌 until the control valve is completely closed. Position
of the external slide valve R 10 󱟍 and travel stop indicator
R 10 󱟎 lit.
4. If product remains in the main tank (mid-tank): close the flow
valves on the boom
5 Set the tank bottom valve to the mixing position 󱟈
6. Engage the pump 󱟉
7. Set the combustion engine to mid-power
8. Open all sections
9. Open the main solenoid valve 󱟋
10. When the pump has been primed
11. Set the tank bottom valve to the tank bottom position 󱟏
IMPORTANT: this procedure must be carried out on the plot.
Comply with safety instructions and applicable legislation in the
country for the products used.
