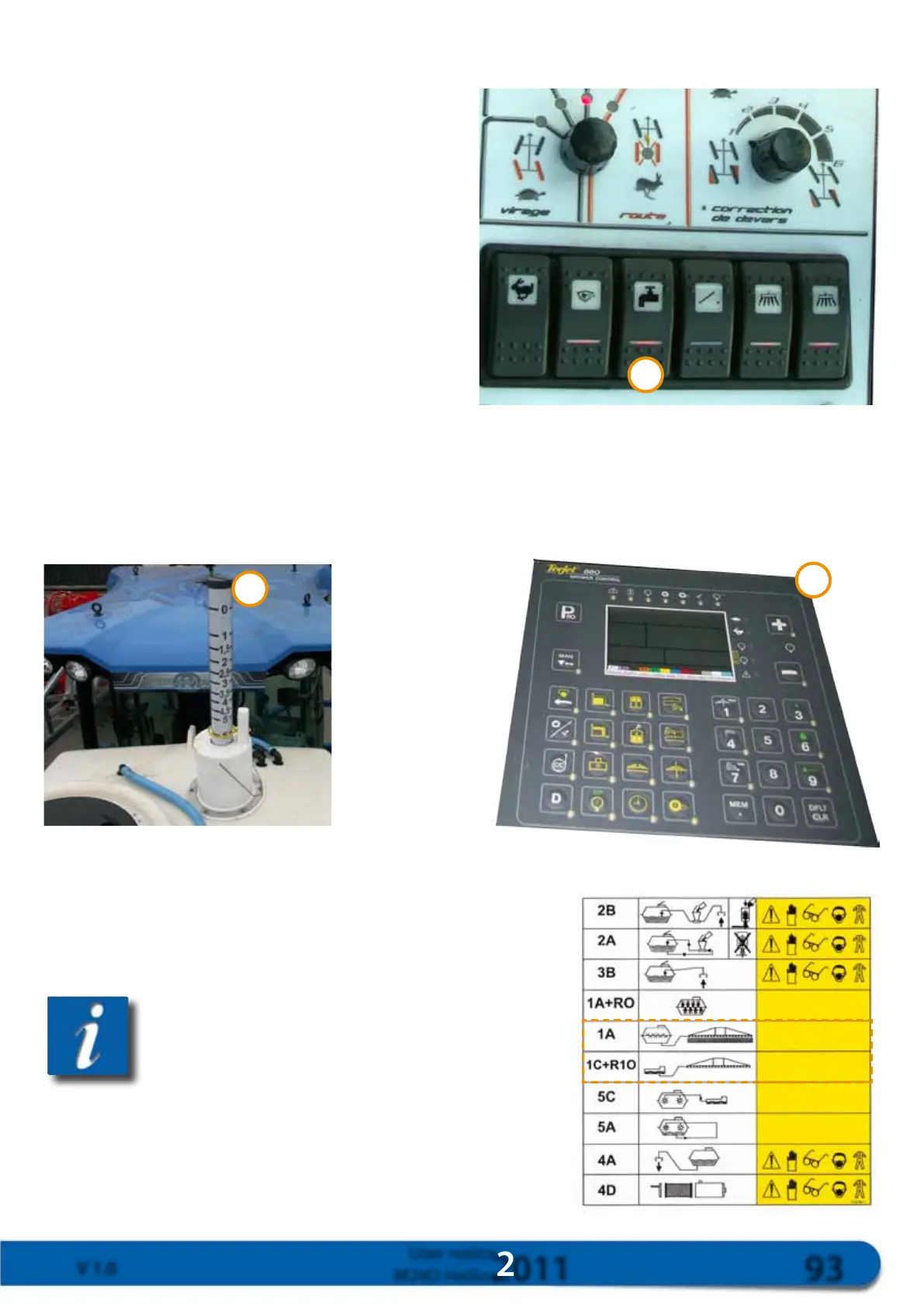

14.4. Cab-controlled residual volume dilution option
How it works:
After spraying and emptying the main tank, valves will
remain in position 1A.
An electrical pump, controlled by a button in the cab, can
be used to transfer the water from the rinsing tank to the
main tank and carry out the various dilution operations
in the rinsing cycle.
With this option, there is no need to come down from
the cab to switch the valves to position 5C.
Use:
◦
1
st
stage - 1A
The transfer pump can be started using ①.
Dilute the residual volume by transferring the required volume from the rinsing tank to the main tank.
The volume can be controlled from the cab, either using the mechanical gauge ②, or the electronic
gauge ③.
The mixture can be spread using the main boom or the rear jets, if the residual volume spray option is
fitted.
◦2
nd
stage - 1A + R10 Final rinsing
Transfer the rest of the rinsing tank to the main tank using switch ①.
Continue from operation 10.5 -3. pg. 77.
This option represents an additional stage, not mentioned on
the valve position reminder label.
