52 2011
User notice
M24D Hellios
V 1.0
1
2

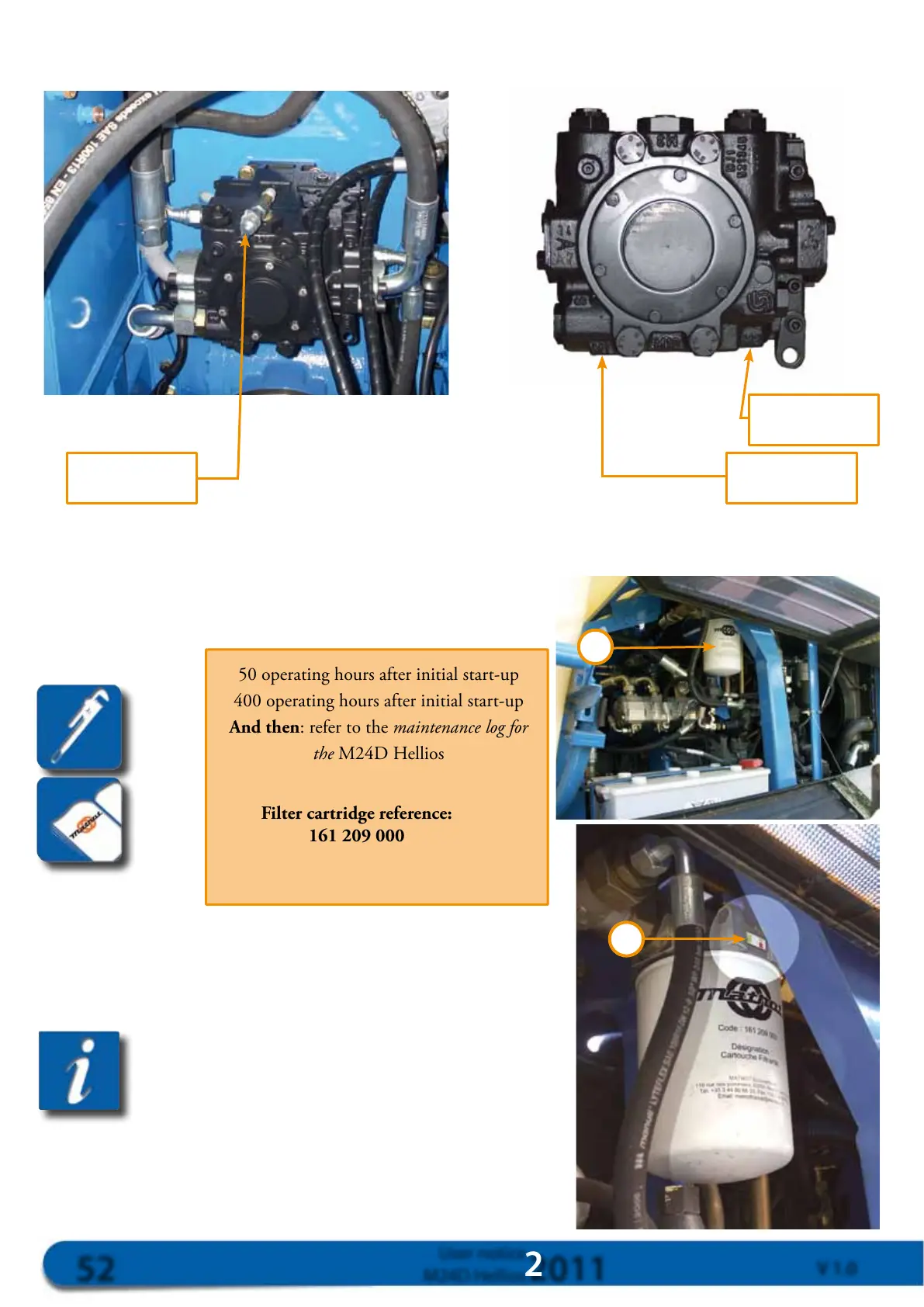

6.2.6. Pump and engine pressure tap
6.3. Connections circuit
The filter cartridge ① must be replaced at the following
intervals:
50 operating hours after initial start-up
400 operating hours after initial start-up
And then: refer to the maintenance log for
the M24D Hellios
Filter cartridge reference:
161 209 000
Filter cartridges can be changed earlier if the clogging indicator
on the filter casing lights up red ②.
All filter cartridges are identical
Only original MATROT ÉQUIPEMENTS parts are
covered by the warranty of your self-propelled machine.
Pressure tap M2
connection B
Pressure tap M1
connection A
Booster pressure
tap M3
