5.5. Rear steering
2 or 4 wheels may turn to steer the machine, as preferred
5.5.1. Driving on the road
Apply the following procedure:
Button ② must be set to ROAD.
Set switch ① to OFF.
Only set button ① to OFF (stop) when the indicator ③ is lit, indicating that the rear wheels are aligned
with the axis of the machine.
The rear wheels are then straight and blocked in this position.
Only the front wheels turn.
Setting the speed mode switch (⑤ - photo 33) to position 4 will prevent the rear wheels from moving
if the driver accidentally activates ① or ② or the pedal (⑥ - photo 34).

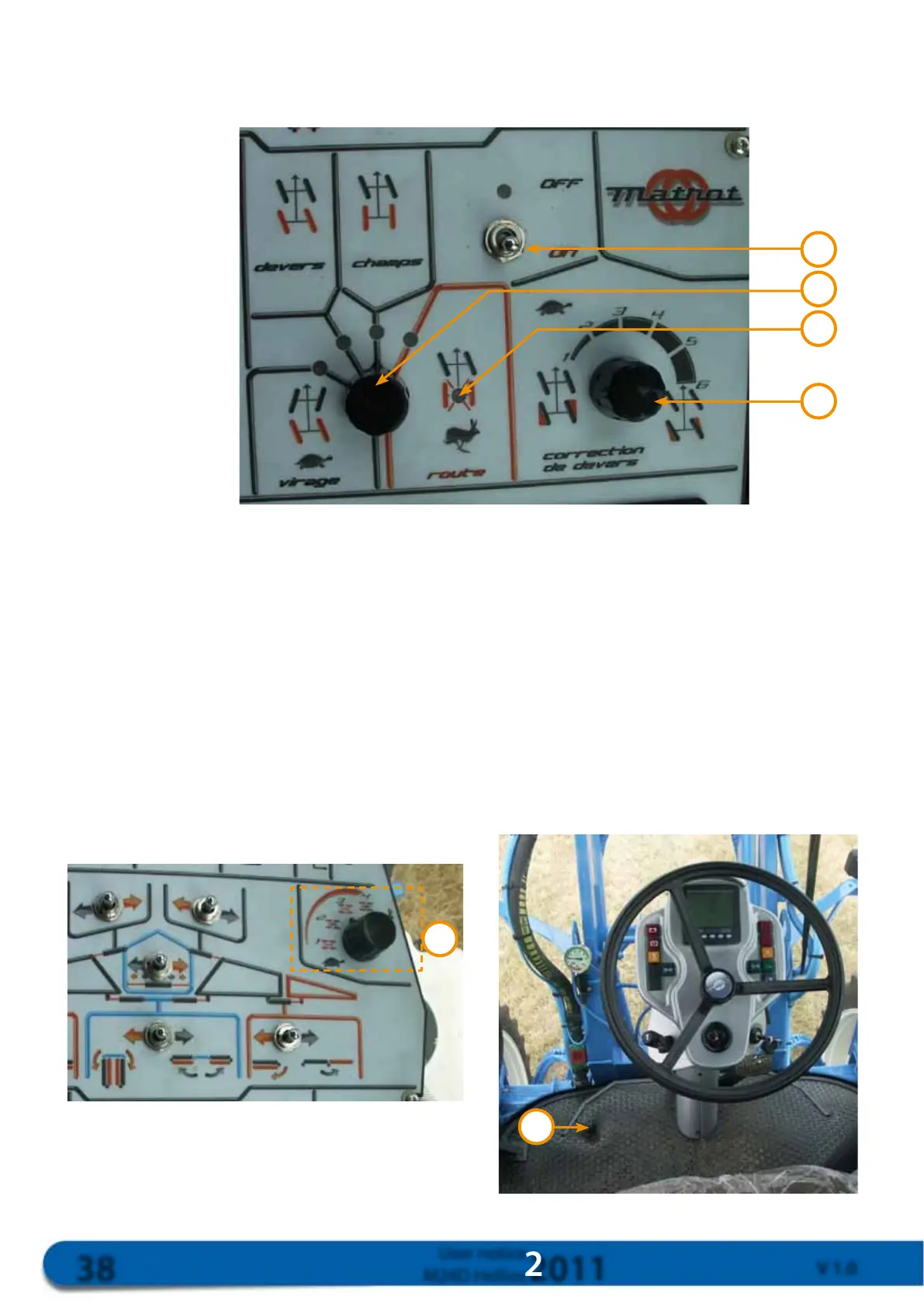

p Photo 33
Photo 34 
