Chapter 6 Communication function
114
The ramp function generator is required in the speed set channel of application class AC1.

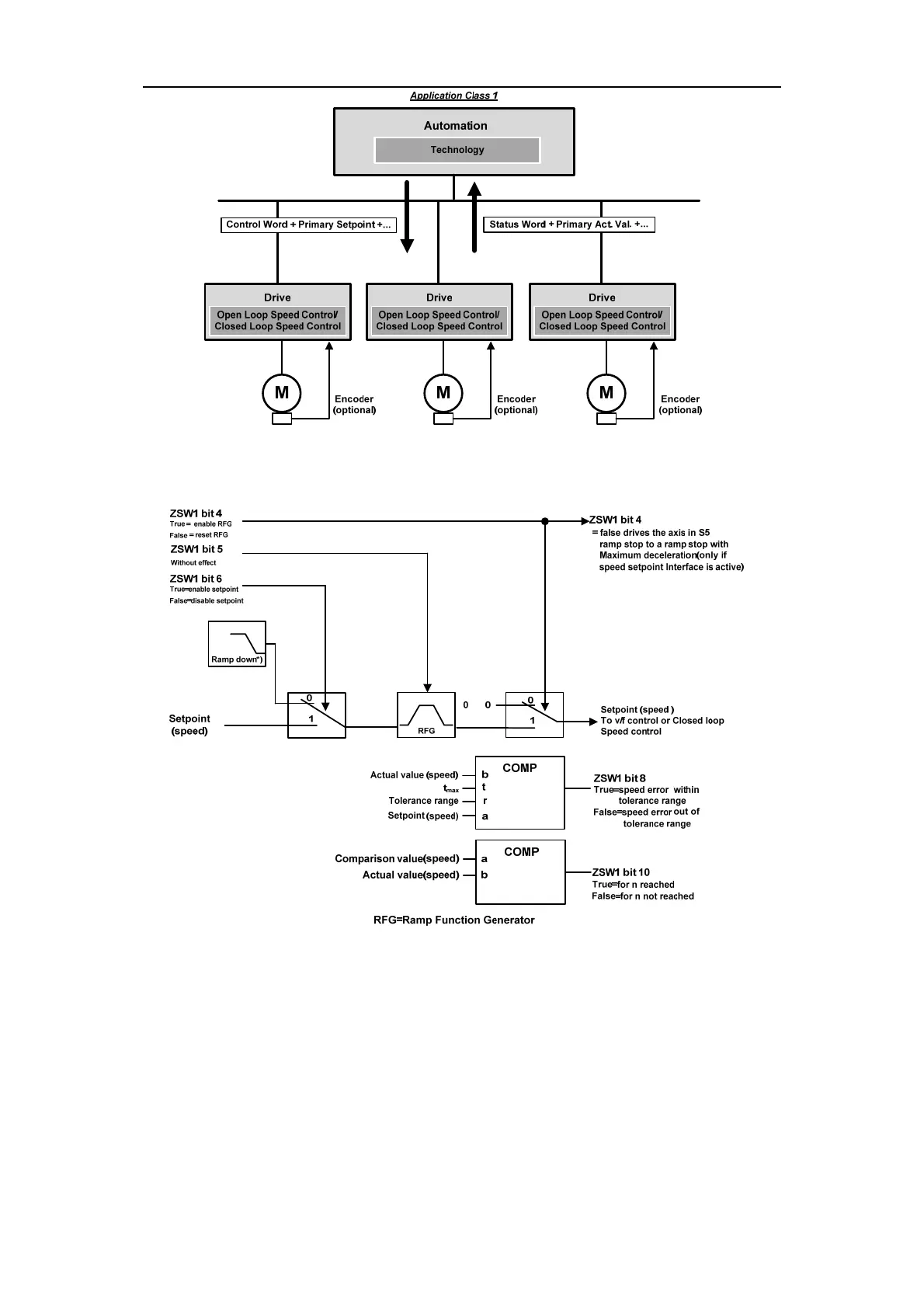

The function of the speed set channel module in the slave device is illustrated below. STW1.5
controls the ramp function generator.
