4.10 Timing chart of operation
59

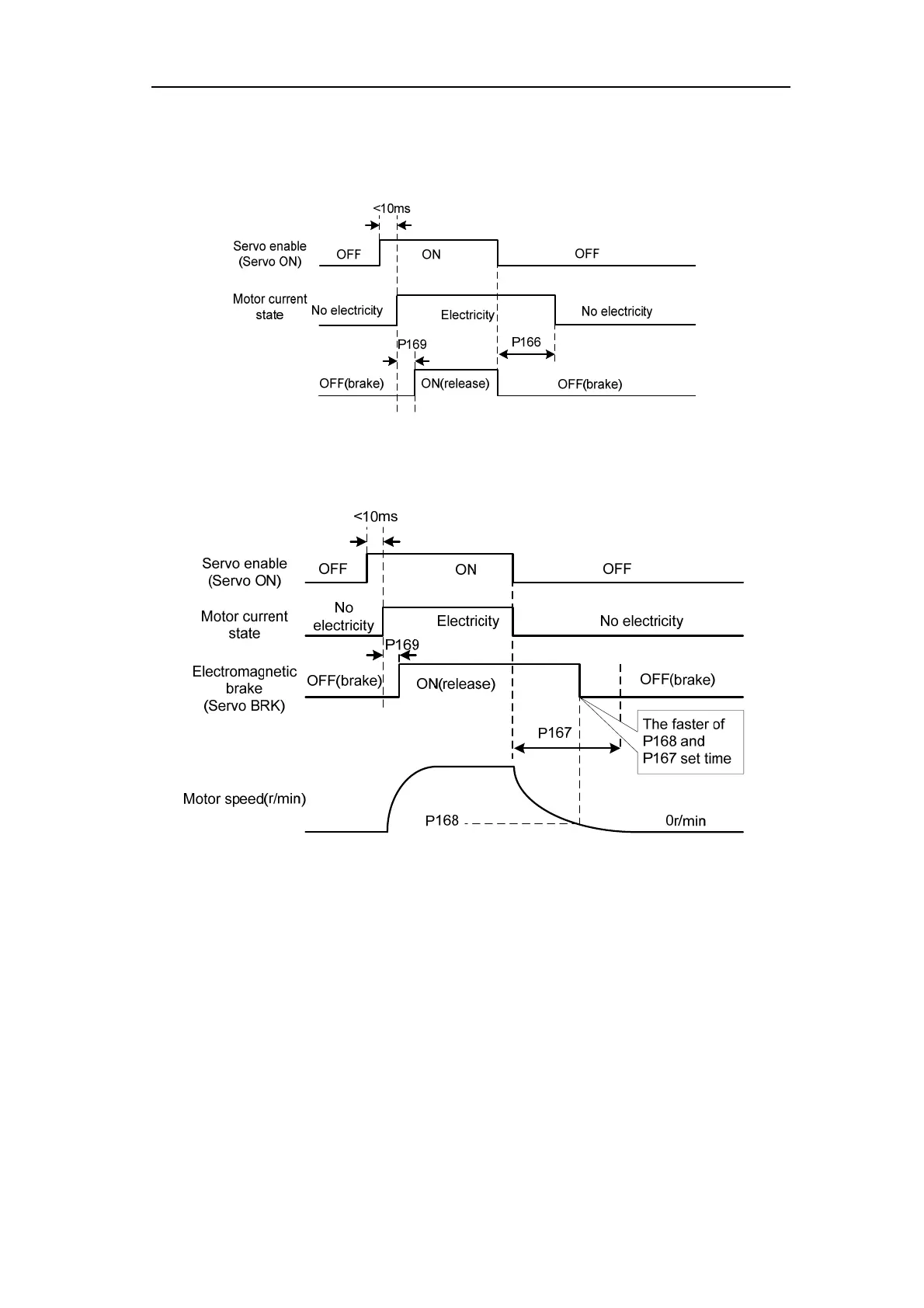

4.10.3
Servo ON/OFF action timing when the motor is stationary
When the electromagnetic brake is controlled by servo, when the motor speed is lower
than the parameter P165, the action timing sequence is as follows:
4.10.4
Servo ON/OFF action timing during motor operation
When the motor speed is higher than the parameter P165, the action timing sequence:
