Maxsine EP3 E Series - X2 X3 Encoder Signal Terminals; X2 Terminal Plug

Chapter 2 Wiring
30
2.5 X2、X3 encoder signal terminals
2.5.1 X2 terminal plug
The following figure shows the connection between the signal terminal of the X2 encoder
and the motor encoder. The double-row DB9 socket is used. The shape and pin distribution are
as follows:

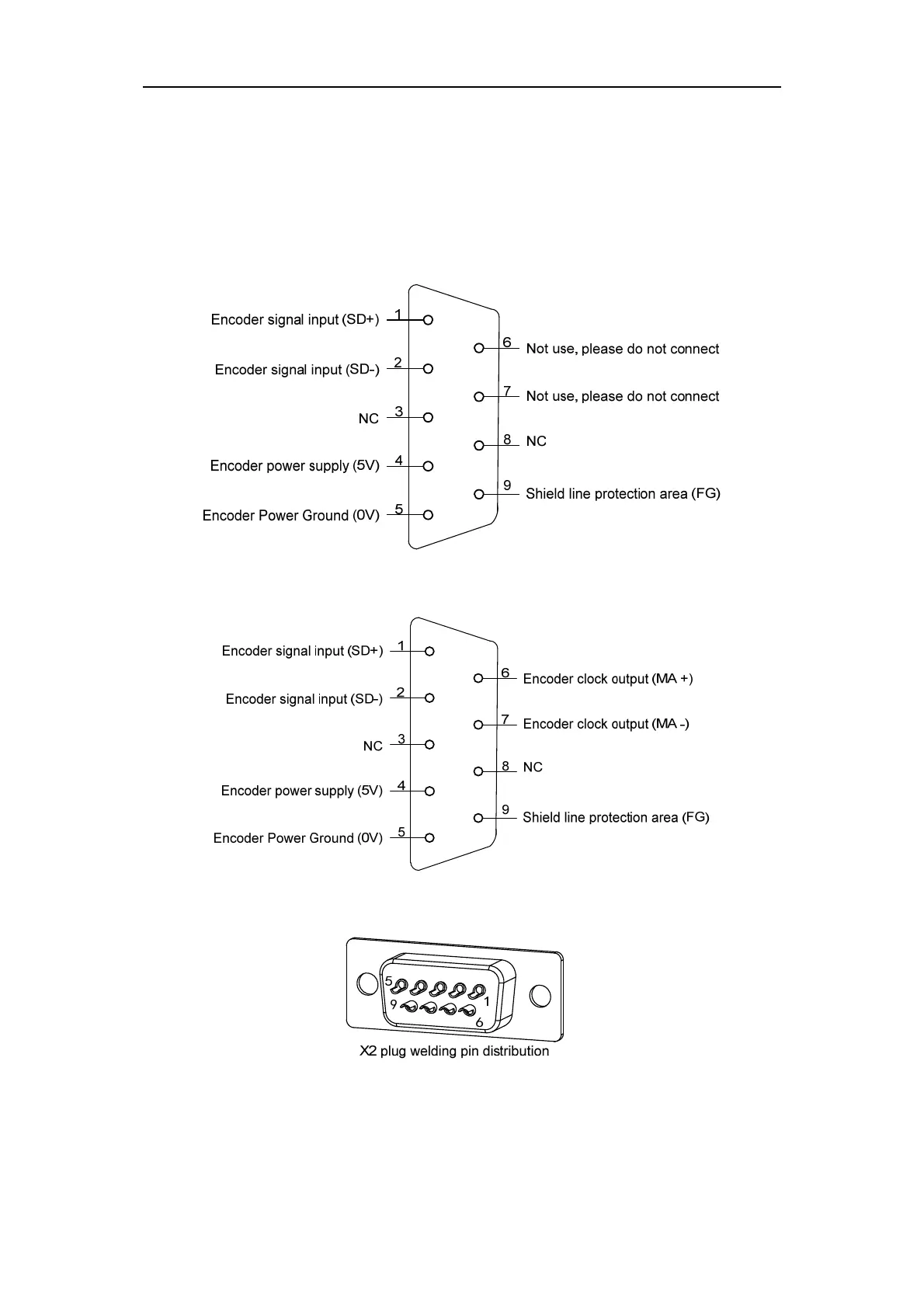

Driver X2 plug (absolute value serial communication encoder)
Driver X2 plug (absolute value for BISSC communication encoder)
