Chapter 2 Wiring
32
2.6 X5、X6 PROFINET network port
The PROFINET interface of the EP3E PN servo drive has two ports that can be
physically connected, X5 for PN Port.PN X5 and X6 for PN Port.PN X6. PROFINET devices
are uniquely identified on the network by their PROFINET interfaces, each of which has a
unique MAC address, a device name, and an IP address.
When using X5 and X6 ports, you need to ensure that the physical connections of the
inputs and outputs are consistent with the topology in the configuration.

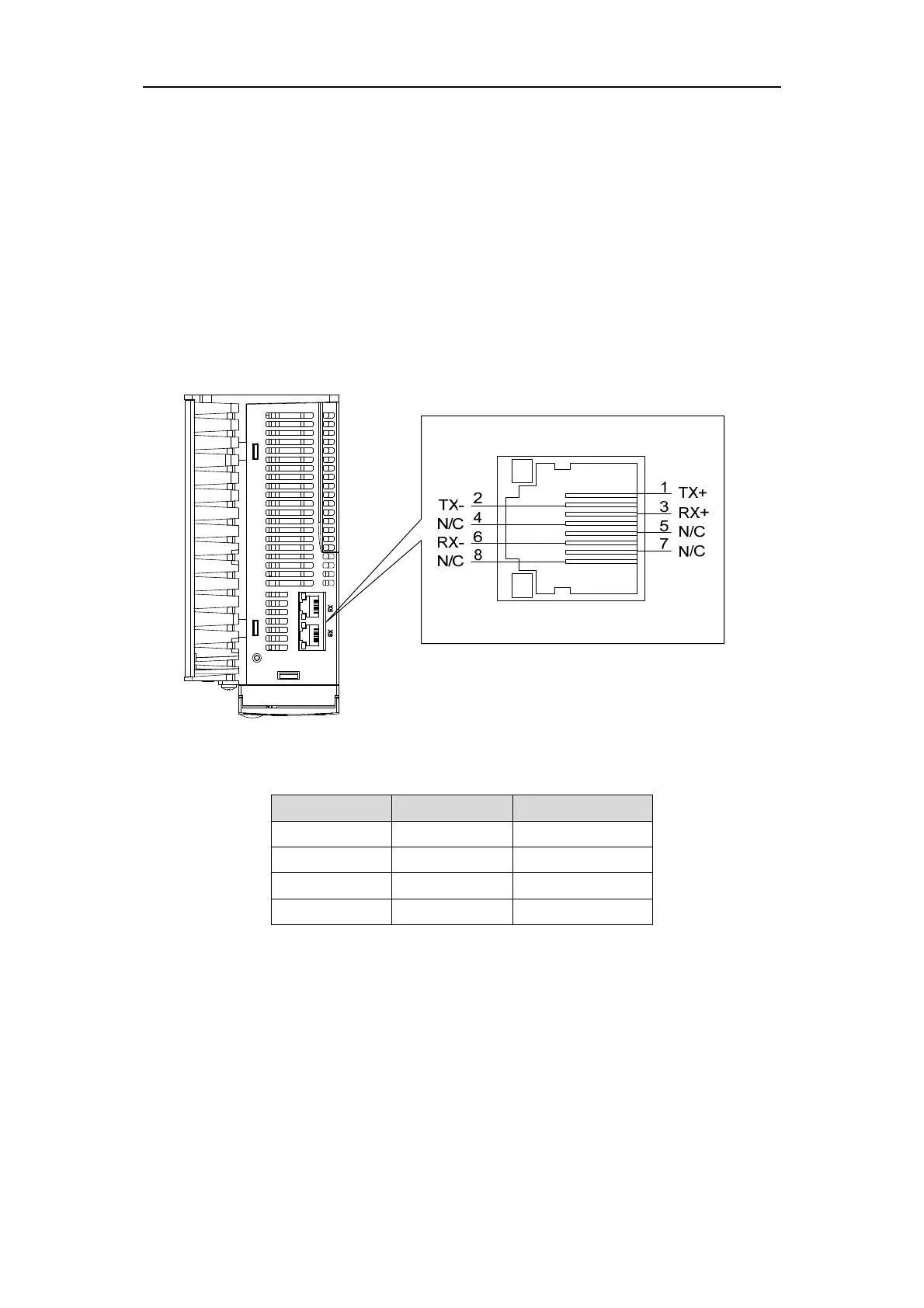

2.6.1 X5、X6 terminals interface
2.6.2 X5、X6 terminal signal description
Signal name Pin number Function
TX+ 1 Sending signal+
TX- 2 Sending signal-
RX+ 3 Receiving signal+
RX- 6 Receiving signal-
