8.6 Servo motor wiring
151
8.6 Servo motor wiring

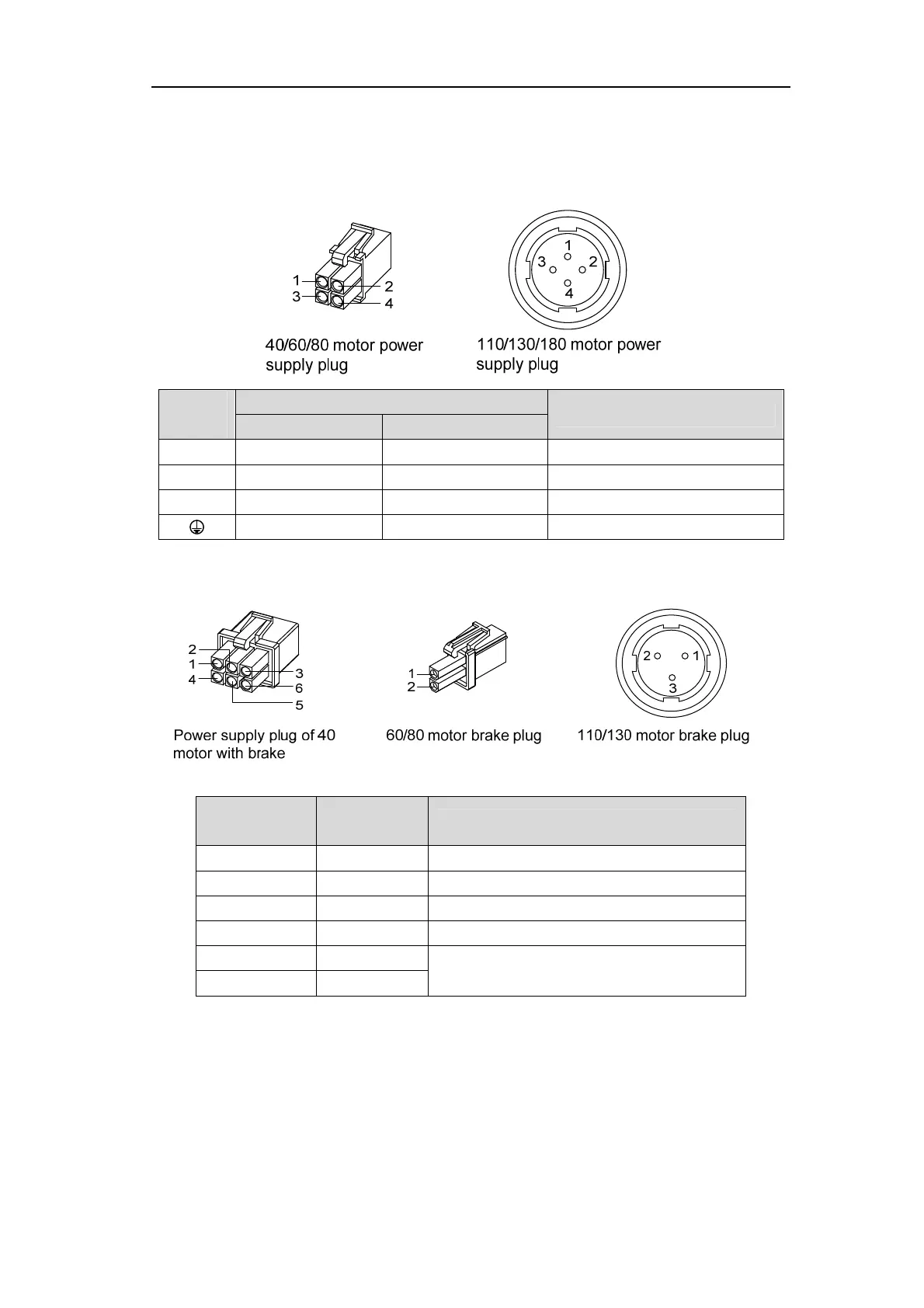

8.6.1 Winding wiring
Terminal
symbol
Terminal number
Terminal explanation
40/60/80 motor 110/130/180 motor
U 1 2 U phase drive input
V 2 3 V phase drive input
W 3 4 W phase drive input
4 1 Ground terminal of motor case
8.6.2 Brake wiring
40 Motor with brake power wiring:
Terminal
symbol
Terminal
number
Terminal explanation
U 1 U phase drive input
V 2 V phase drive input
W 3 W phase drive input
PE 4 Ground terminal
BK+ 5
Brake terminal
BK- 6
