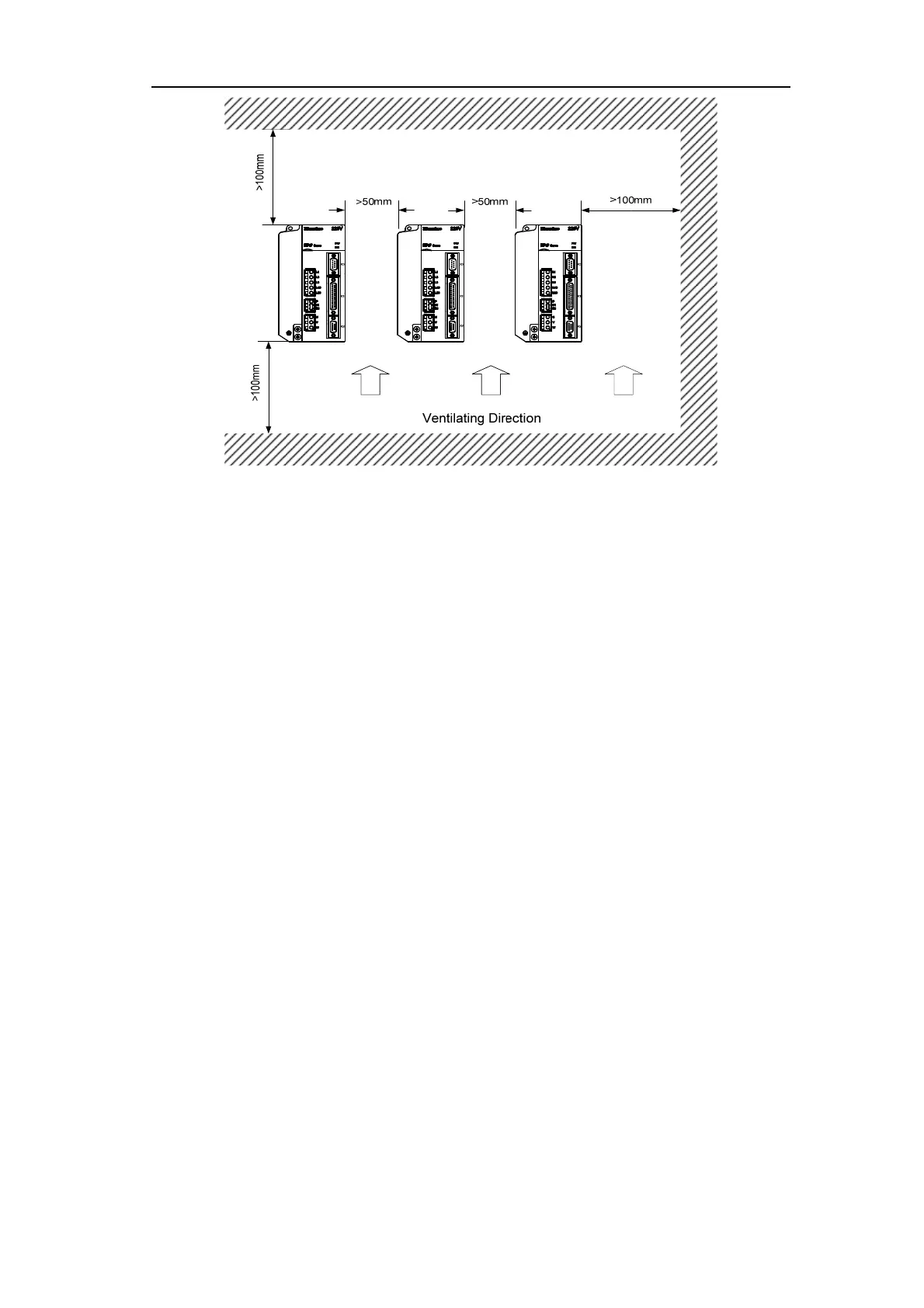

1.5 Servo motor installation
11
1.5 Servo motor installation
1.5.1 Installation environmental conditions
 Ambient temperature: 0～40 ; Ambient humidity: less than 80 %( no dew℃ ).
 Storage temperature: -40～50 ; Storage humidity: less than ℃ 80 %( no dew).
 Vibration: less than 0.5G.
 Install the servomotor in well-ventilated place with less moisture and a few dusts.
 Install the servomotor in a place without corrosive liquid, flammable gas, oil vapor, cutting
cooling liquid, cutting chips, iron powder and so on.
 Install the servomotor in a place without water vapor and direct sunlight.
1.5.2 Installation method
 For horizontal installation: In order to prevent water, oil, etc. from entering inside of the
servomotor, please put the cable connector downward.
 For vertical installation: if the shaft of the servo motor is in upward direction with a speed
reducer, some prevention measure shall be taken against entering inside of the servomotor
by oil come from the speed reducer.
 Motor shaft extension should be long enough, or may cause vibration while motor is in
running.
 In case of installation or removing the servomotor, please do not hit the servomotor with a
hammer, otherwise the shaft and the encoder can be damaged.
