2.3 Connection of reactor

2.3

Connection of reactor

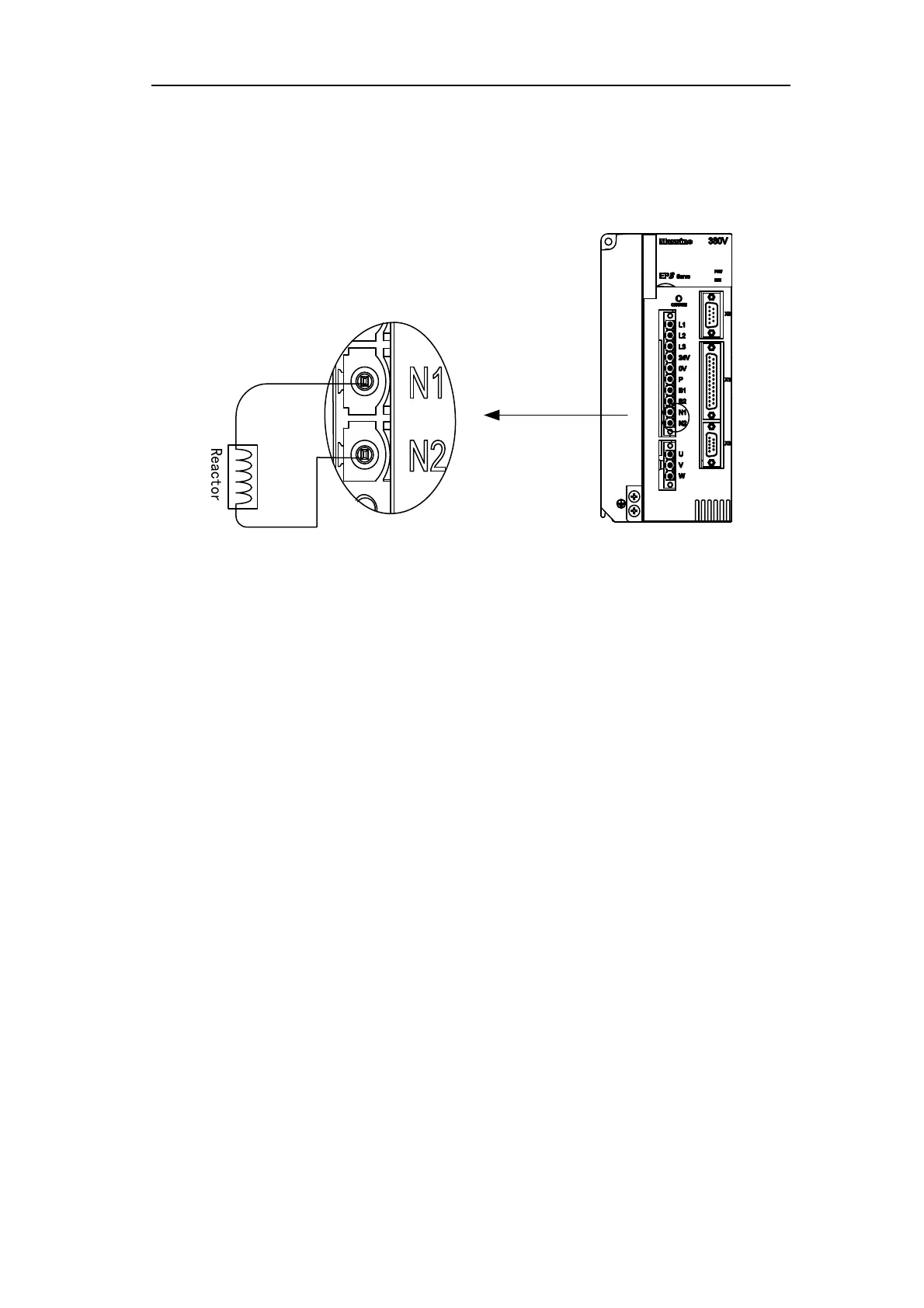

When it is necessary to suppress the high-order harmonics of the power supply, the DC

reactor is connected between N1 and N2; when it is not necessary to suppress the high-order

harmonics of the power supply, the DC reactor is directly connected between N1 and N2.

Note: only GL190、GL240、GH2A0、GH3A5、GH5A4、GH8A5、GH130、GH170、GH210

servo drivers have external reactor connection function.
