3-1
COMPONENT ACCESS
1. To open the top panel, use a 9300 Euro
Lock key.
2. Unlock the two locks at the front corners of
the top panel.
3. Lift from the front corners of the top panel.
4. Use the prop rod at the top of the washer,
behind the chemical dispenser, to hold the
top panel open.
5. Insert prop rod into small round hole along
the front right bottom edge of the top panel.
NOTE: The locking velcro tab under the top
panel and on the center support brace lock
together to reduce vibration when the top
panel is closed.

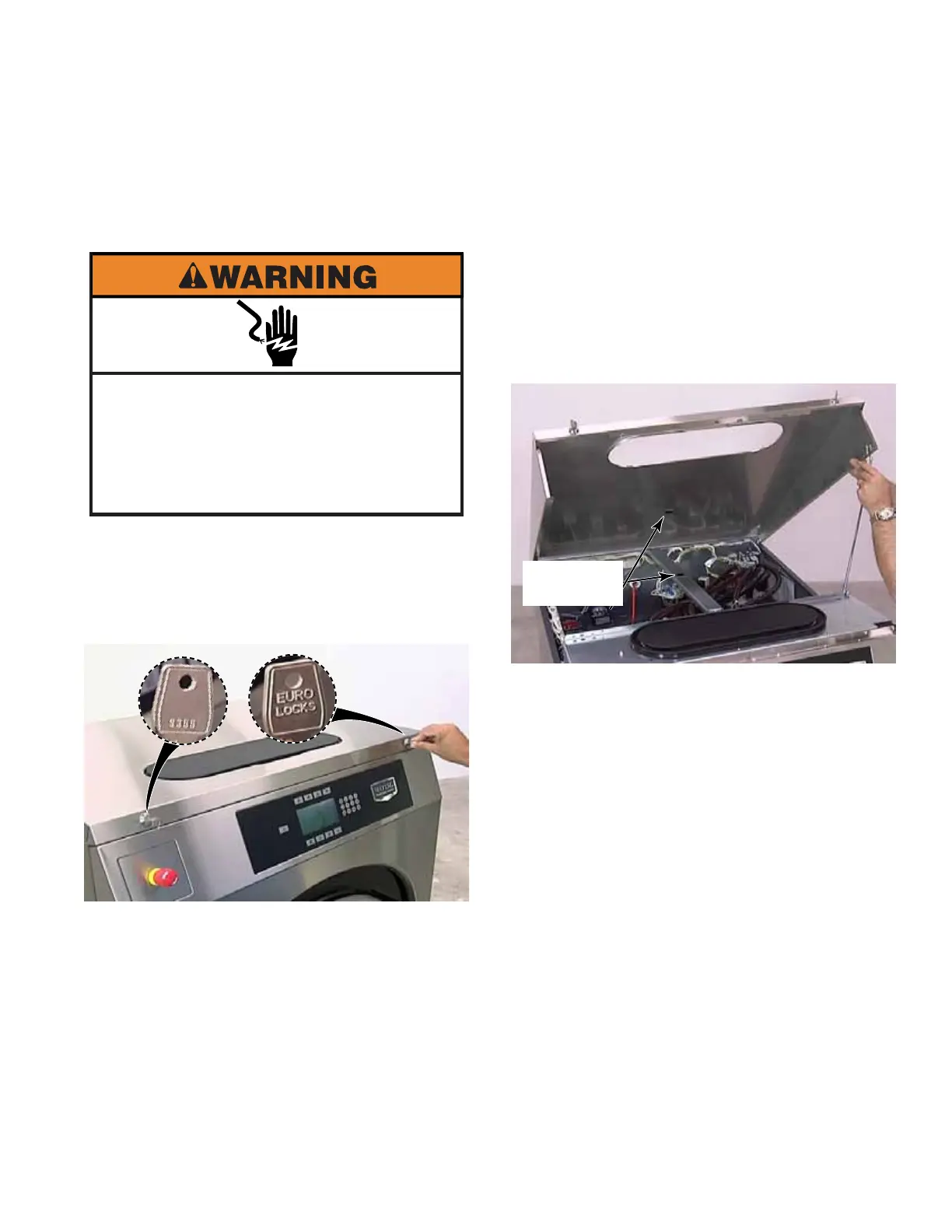

OPEN TOP PANEL
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.
Locking
Velcro Tabs
