3-26

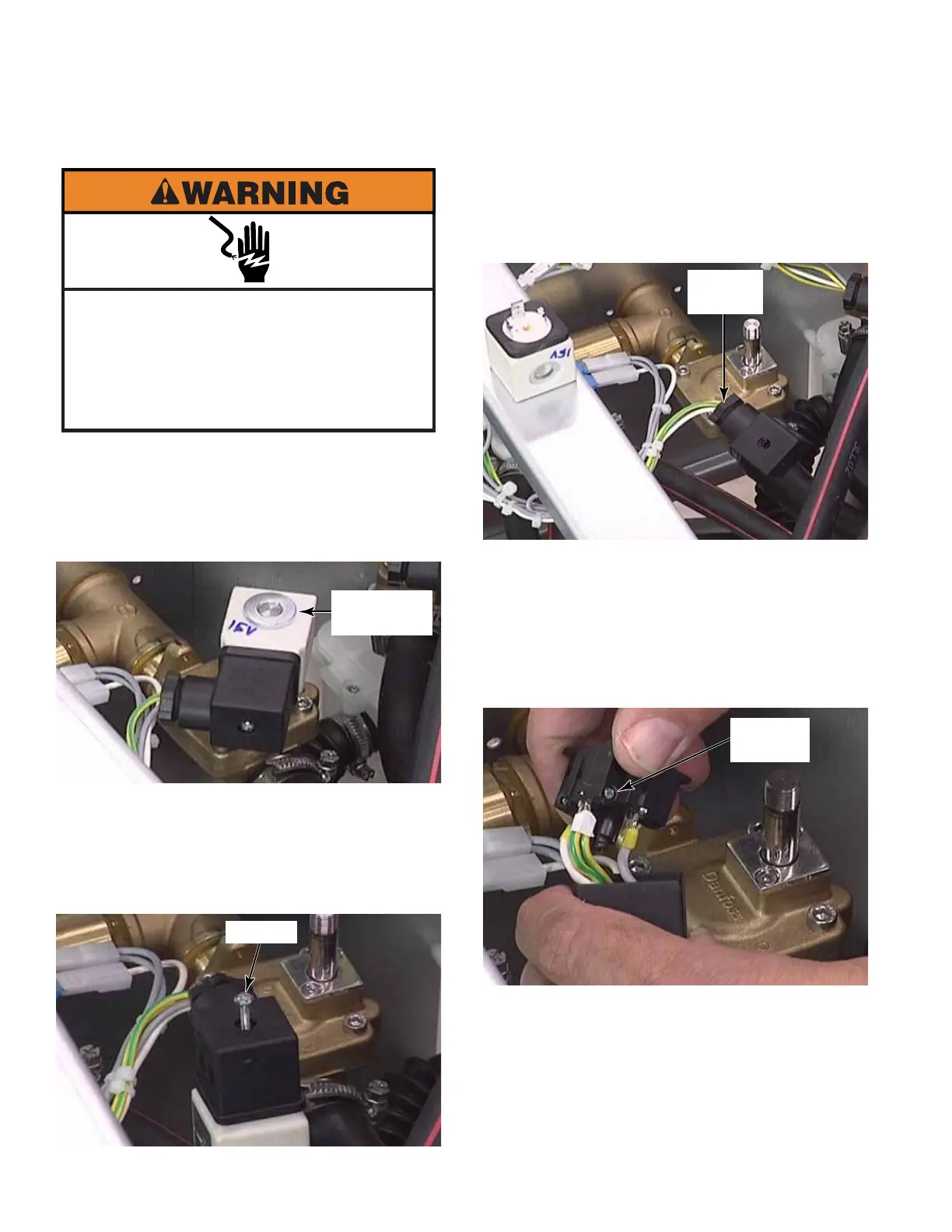

1. Open the top panel. (See page 3-1)
2. To service the components of a single coil
brass body valve, remove the spin nut and
spring washer on top of the coil.
3. Lift the coil off the valve stem.
4. Use a flat blade or Phillips screwdriver
to remove the screw securing the wire
connectors to the coil.
5. Pull the connectors off the coil.
6. To access the connectors, unscrew the
strain relief.
7. Pull the connectors out of the housing.
8. To disconnect a wire from a plug, use a #1
Phillips screwdriver to loosen the screw
securing each wire. The plug on the coil
is keyed, with one long blade, for proper
orientation on reinstallation.
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.
WATER INLET VALVES 3/4” - 55 & 65 LB MODELS
Nut And
Washer
Screw
Strain
Relief
Phillips
Screw
To Next Page
