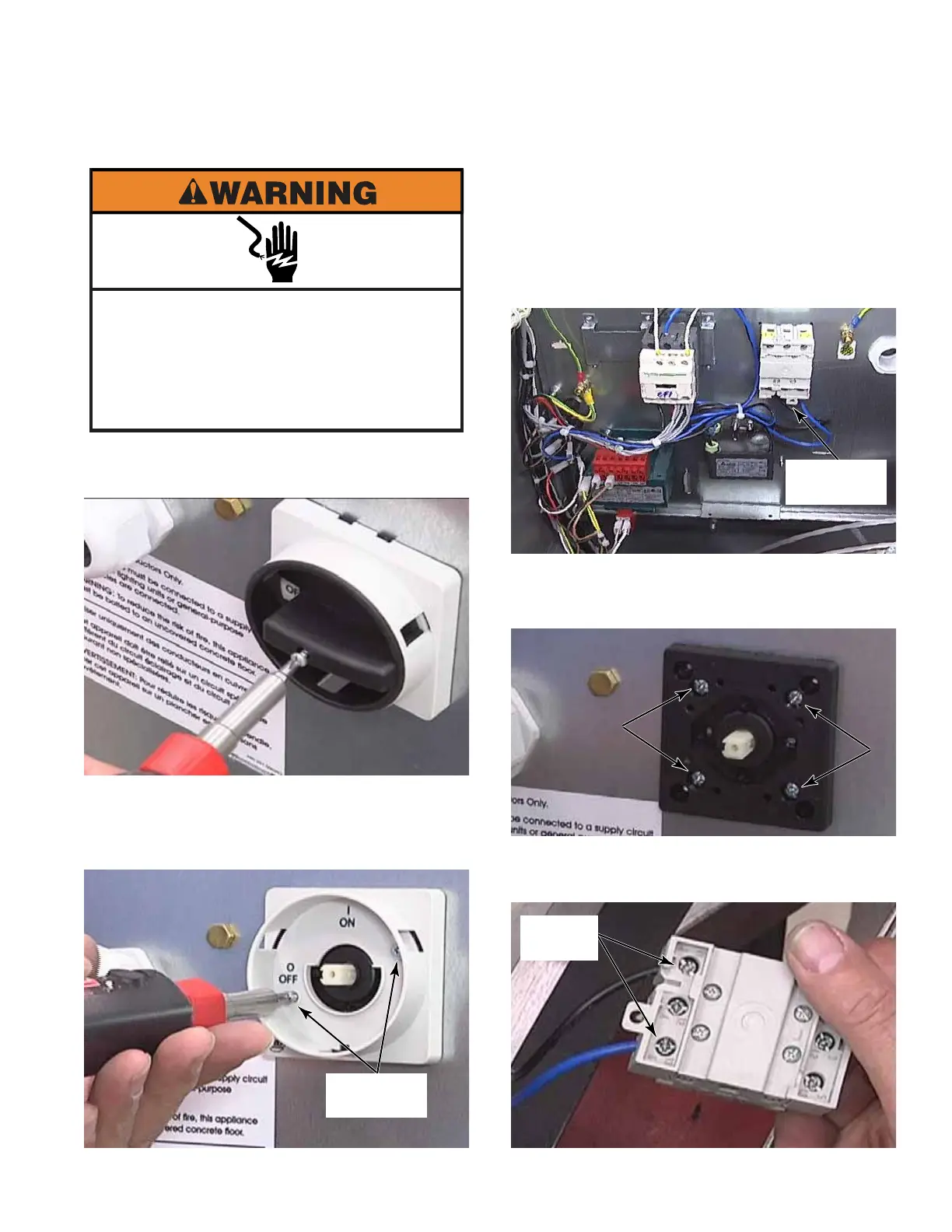

3-29
1. Remove the Phillips head screw securing
the knob to the switch on the back panel.
2. Pull the knob off the switch.
3. Remove two Phillips screws behind knob.
4. Remove the knob shroud.
5. Open the top panel. (See page 3-1)
6. The mains disconnect is near the top left
back corner inside the cabinet.
7. Remove four Phillips screws, from the
switch base on the back panel, to release
the switch inside the cabinet.
8. Loosen the Phillips head screws that secure
the wires to the switch.
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.
MAINS DISCONNECT
Two Phillips
Screws
Mains
Disconnect
Phillips
Screws
To Next Page
