4-2

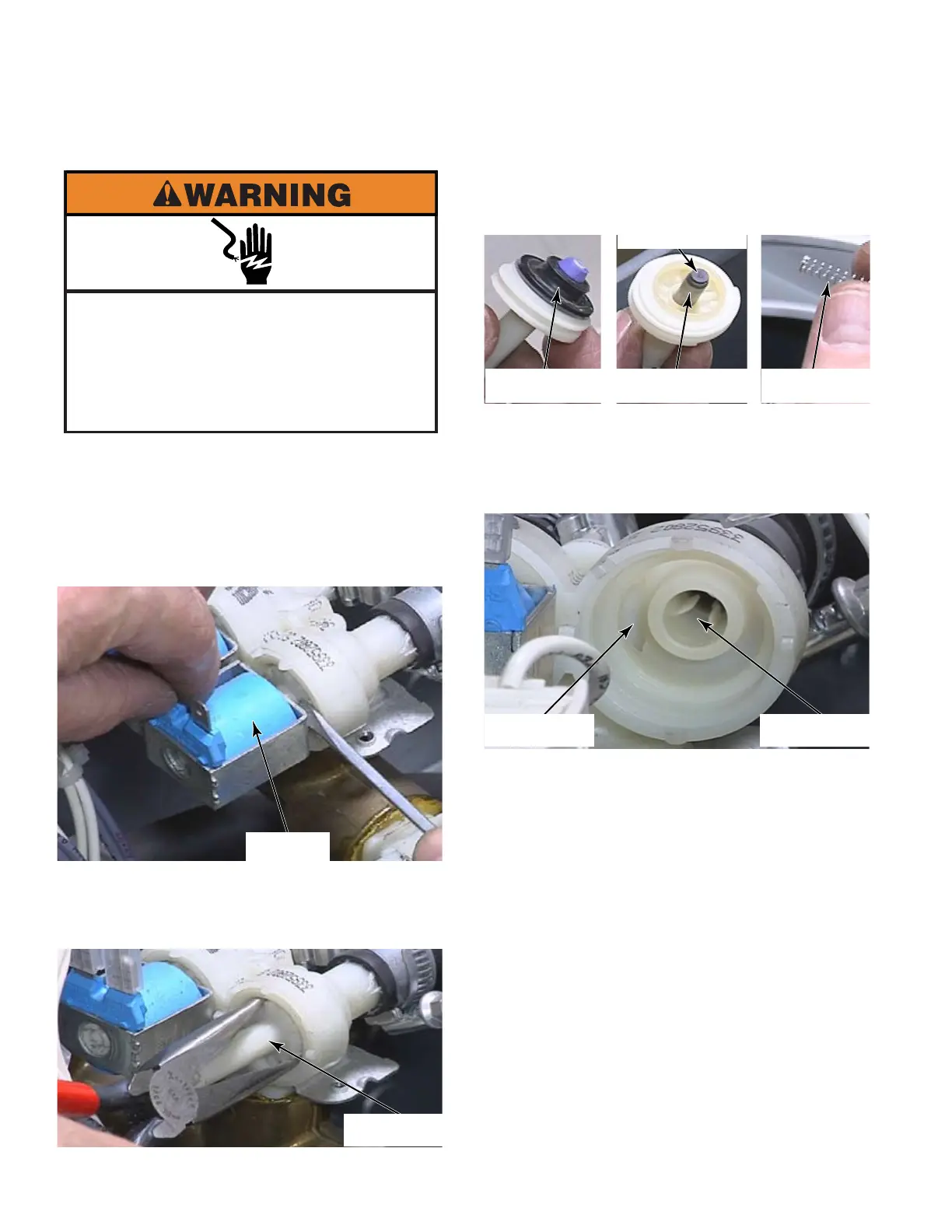

Raise the top of the washer (See page 4-2).
Disconnect the coil connections.
Use a small screw driver to pry the coil off
the stem assembly.
Use a pair of needle nose pliers as a
wrench to turn the stem assembly counter-
clockwise to remove it.
1.
2.
3.
4.
inleT valve-STeM aSSeMBly paRTS
The stem assembly consists of a
diaphragm, a plunger with a rubber tip and a
return spring.
Inside the valve, the water comes in on
one side and exits out the middle of the
inlet valve. If the metal sealing surfaces are
damaged, the complete valve assembly
needs to be replaced.
To reassemble the stem assembly, reinstall
the return spring.
Install the plunger with the rubber tip facing
up.
Push the diaphragm on until it catches, so
it does not fall out.
n
OTe: Kit is available for repairing
Elbi-Bitron® inlet valves;
Diaphragm part #23003442.
6.
7.
8.
9.
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.
Water In Water Out
Coil
Rubber Tip
Diaphragm Plunger Spring
Stem
INLET VALVE-STEM ASSEMBLY PARTS
