3-14
1. Open the control panel. (See page 3-2)
2. Remove the main control board.
(See page 3-4)
3. Remove the display board. (See page 3-6)
4. Remove the coin drop from the front of the
control panel. (See page 3-10)
5. Clip two wire ties in the standoffs inside the
top edge of the control panel.
6. The standoffs are secured with squeeze
clips through the top edge of control panel.
7. Peel off the plastic splash guard, secured by
double stick tape, from the top edge of the
control panel.
8. Remove the 7mm hex head nut, star
washer and flat washer, that secure ground
wire to middle of control panel.
9. Lift control panel and remove from washer.
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.

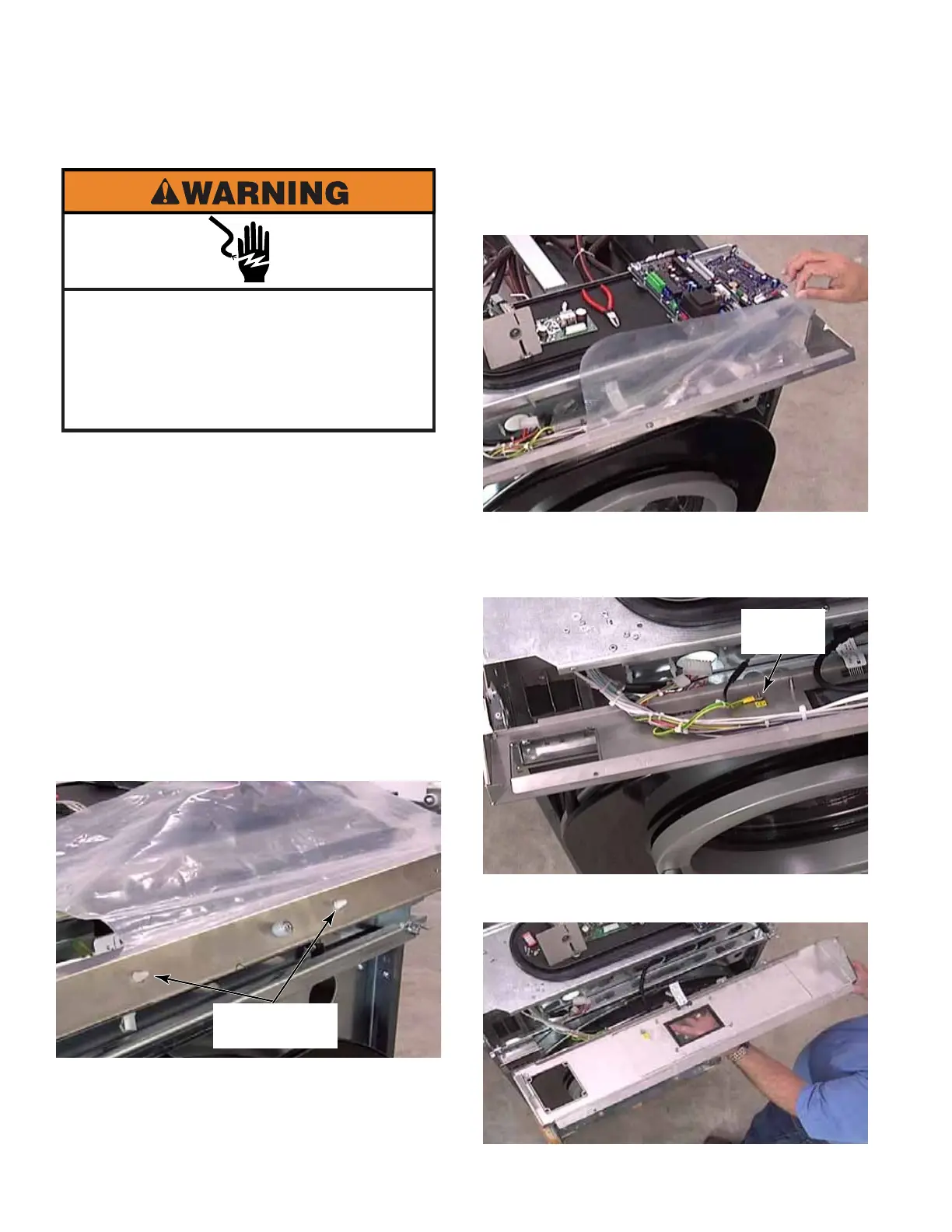

CONTROL PANEL REMOVAL
Two Squeeze
Clips
Ground
Wire
To Next Page
