3-41
1. Remove the front panel. (See page 3-39)
2. Remove the door. (See page 3-38)
3. Remove the shims, if present. Pull the hinge
blocks off the hinge pins. (See page 3-38)
4. Remove the hinge blocks. (See page 3-38)
5. Remove six T-30 bolts that secure the front
plate to the washer.
NOTE: The bottom bolt is behind the
warning sticker below the door opening.
6. These bolts are slightly shorter than the
door to hinge bolts. Use thread lock when
reinstalling these bolts.
7. Remove the front plate.
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.

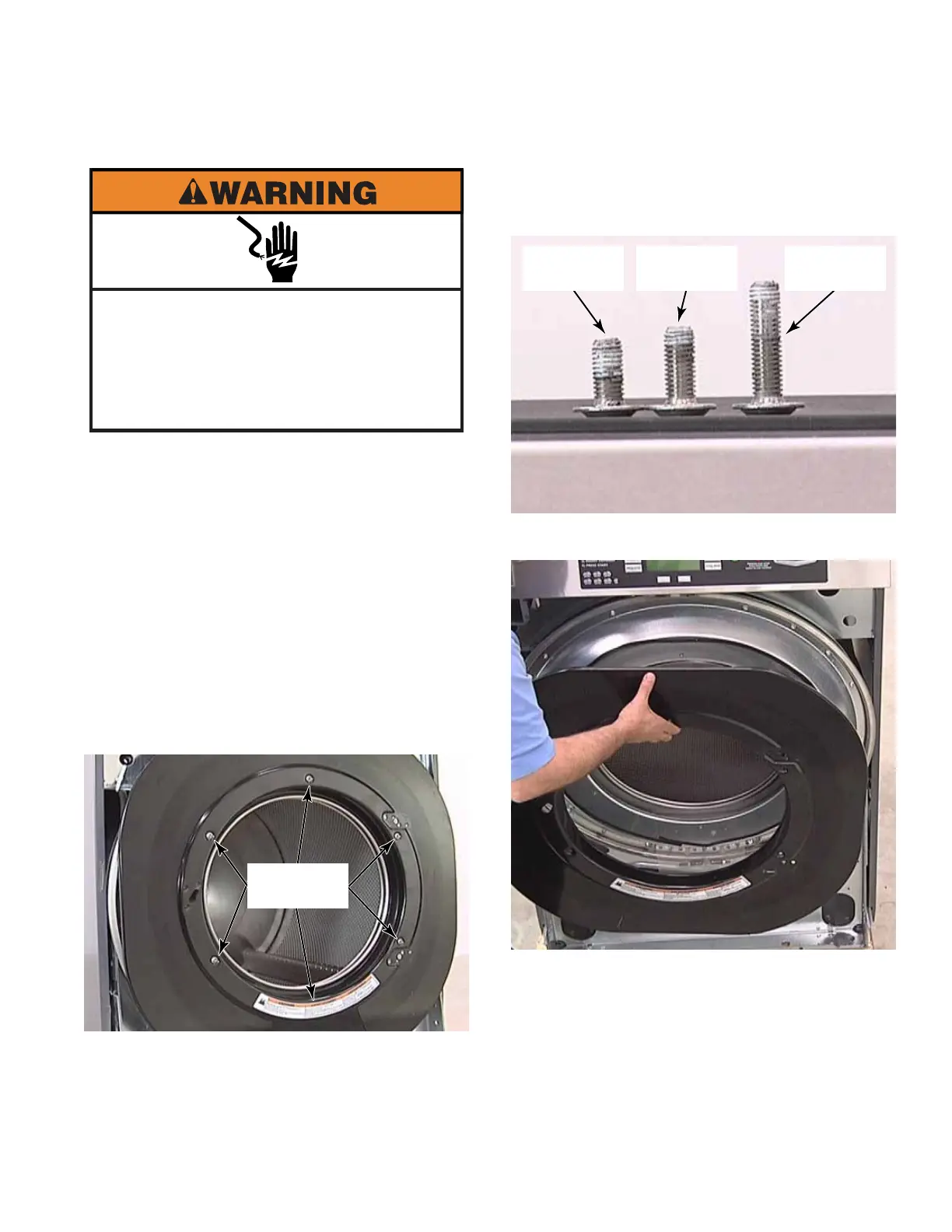

FRONT PLATE
Six T-30
Bolts
Front Plate
Bolt
Door To
Hinge Bolt
Hinge
Block Bolt
To Next Page
