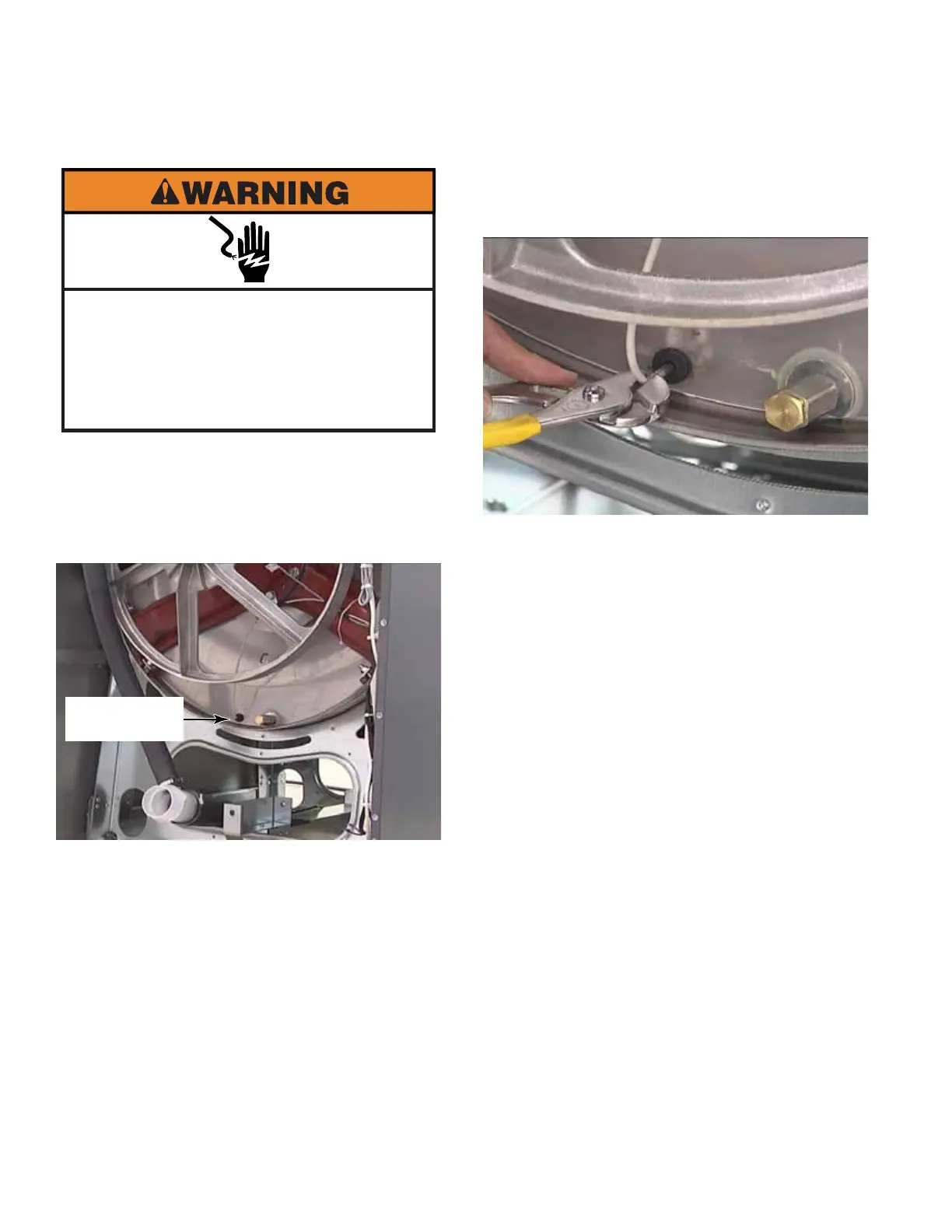

3-54
1. Remove the back panel. (See page 3-46)
2. The temperature sensor is a thermistor
located at the back of the outer tub, near the
bottom edge, next to the tub drain out fitting.
3. Use a pair of pliers and a slight twisting
motion, to pull the sensor out of the rubber
mounting grommet.
TECH TIP: When replacing a failed
temperature sensor, cut the wire off near
the failed thermistor probe. Disconnect the
opposite end connector at the control board.
Cut off the old connector. Wire tie the new
temperature sensor cable along the existing
wire harness. Reconnect at the control
board. When reinserting the sensor into the
rubber grommet, wet it to make insertion
easier.
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.
TEMPERATURE SENSOR
Temperature
Sensor
To Next Page
