1. Open the top panel. (See page 3-1)
2. Remove four T-20 screws from back panel.
3. Loosen the worm gear clamp securing
the chemical dispenser hose to the mixing
chamber inside cabinet. Pull the hose off.
TECH TIP: Worm gear clamps can be
removed with a Phillips or flat blade
screwdriver or a 7mm hex head socket.
4. On washers with additional brass body inlet
valves, loosen the worm gear clamps that
secure the hot and cold water inlet hoses to
the top left and right of the mixing chamber.
Pull hoses off.
5. Loosen the worm gear clamp securing
the steam vent hose to the left side of the
mixing chamber. Pull the hose off.
6. Remove the back panel. (See page 3-46)
7. Loosen the worm gear clamp securing the
overflow hose to the bottom left side of the
mixing chamber. Pull the hose off.
8. Loosen the worm gear clamp securing the
chemical outlet hose to bottom right side of
the mixing chamber. Pull the hose off.
9. Pull the chemical mixing chamber out from
the inside of the washer cabinet.
NOTE: There is a baffle in the steam outlet
that directs steam out the steam vents.
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.

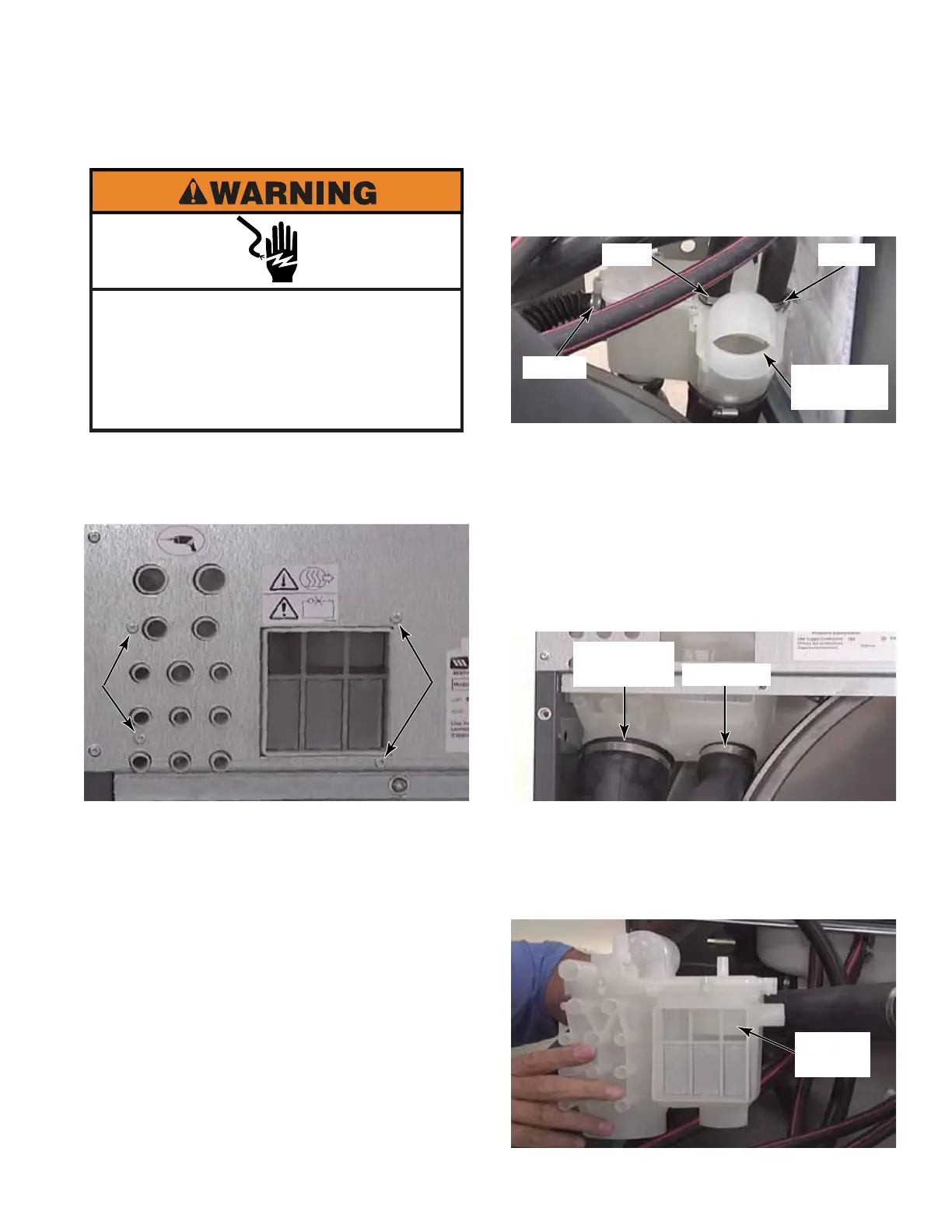

CHEMICAL INJECTION MIXING CHAMBER
Hot Cold
Steam
Chemical
Dispenser
Chemical
Outlet
Overow
Steam
Bafe
