3-20
1. Remove the top panel of the washer.
(See page 3-16)
n The water inlet hoses attached to the
back of the chemical dispenser come pre-
installed on MXR washers.
n The large diameter hose, attached to the
lower right end of the chemical dispenser,
connects to the chemical injection mixing
chamber at the back right corner of the
washer.

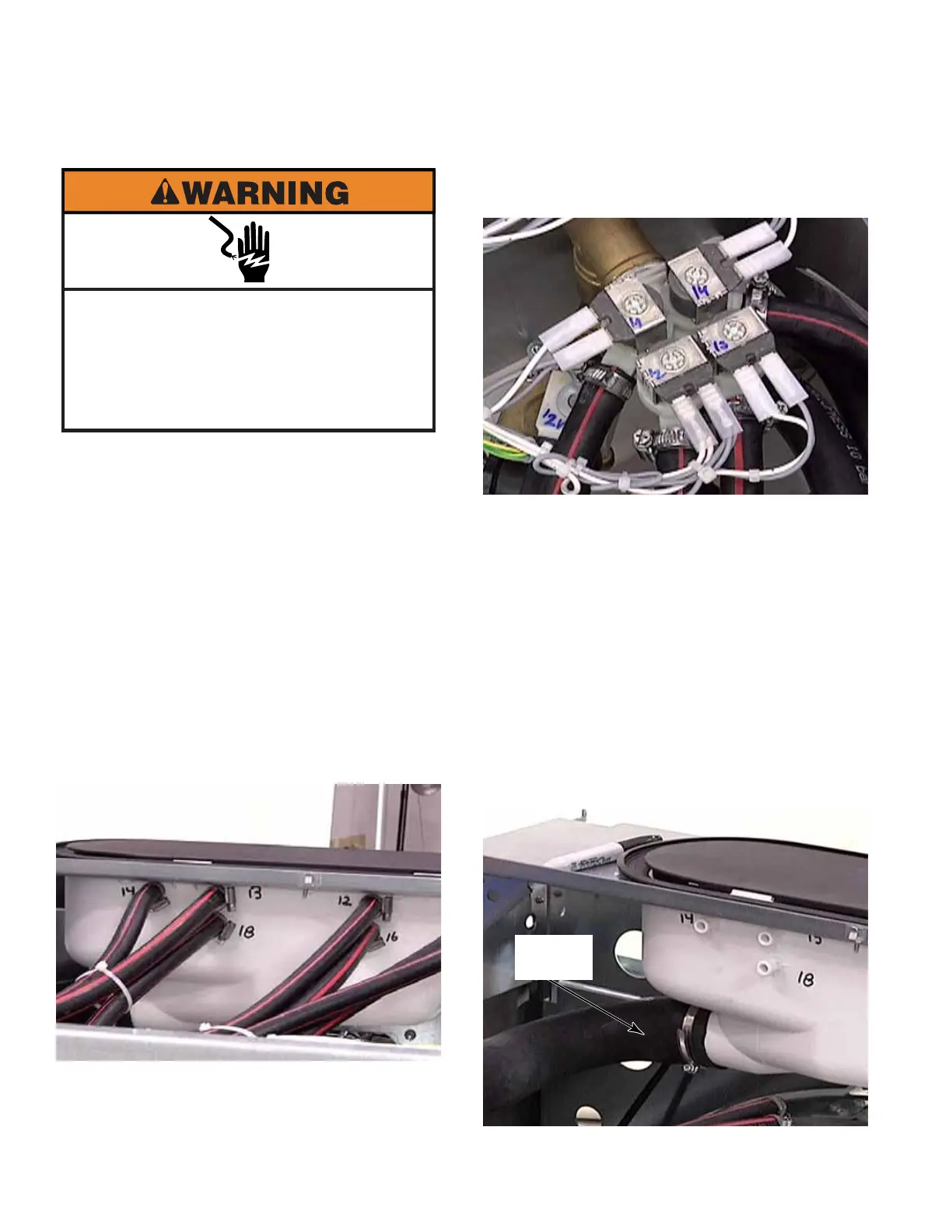

2. Mark the chemical dispenser inlet hose
locations according to the water inlet valves
they connect to.
3. Mark the water inlet valves, if they are not
already marked.
4. Loosen the worm gear clamps that secure
the hoses to the back of the chemical
dispenser.
TECH TIP: Worm gear clamps can be
removed with a Phillips or flat blade
screwdriver or a 7mm hex head socket.
5. Pull the hoses off the chemical dispenser.
6. Loosen the worm gear clamp securing the
chemical dispenser outlet hose.
7. Pull the hose off the dispenser.
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.
CHEMICAL DISPENSER REMOVAL
Outlet
Hose
To Next Page
