3-22
1. Remove the chemical dispenser.
(See page 3-20)
2. Remove the automatic door release
module. (See page 3-7)
3. If replacing the chemical dispenser support,
remove the five standoffs that secure the
automatic door release module in control
panel. Reinstall them in the new support.
4. Remove the control panel from the washer.
(See page 3-14)
5. Remove the top panel prop rod, rubber
grommet and prop rod support.
(See page 3-17)
6. Remove the coin vault from inside the
washer cabinet. (See page 3-12)
7. Remove two T-20 screws from the right
side, that secure the chemical dispenser
support to the side panel.
8. Remove four T-30 screws from the lower
front edge of the support.
9. Remove two T-20 screws from the left side
of the support.
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.

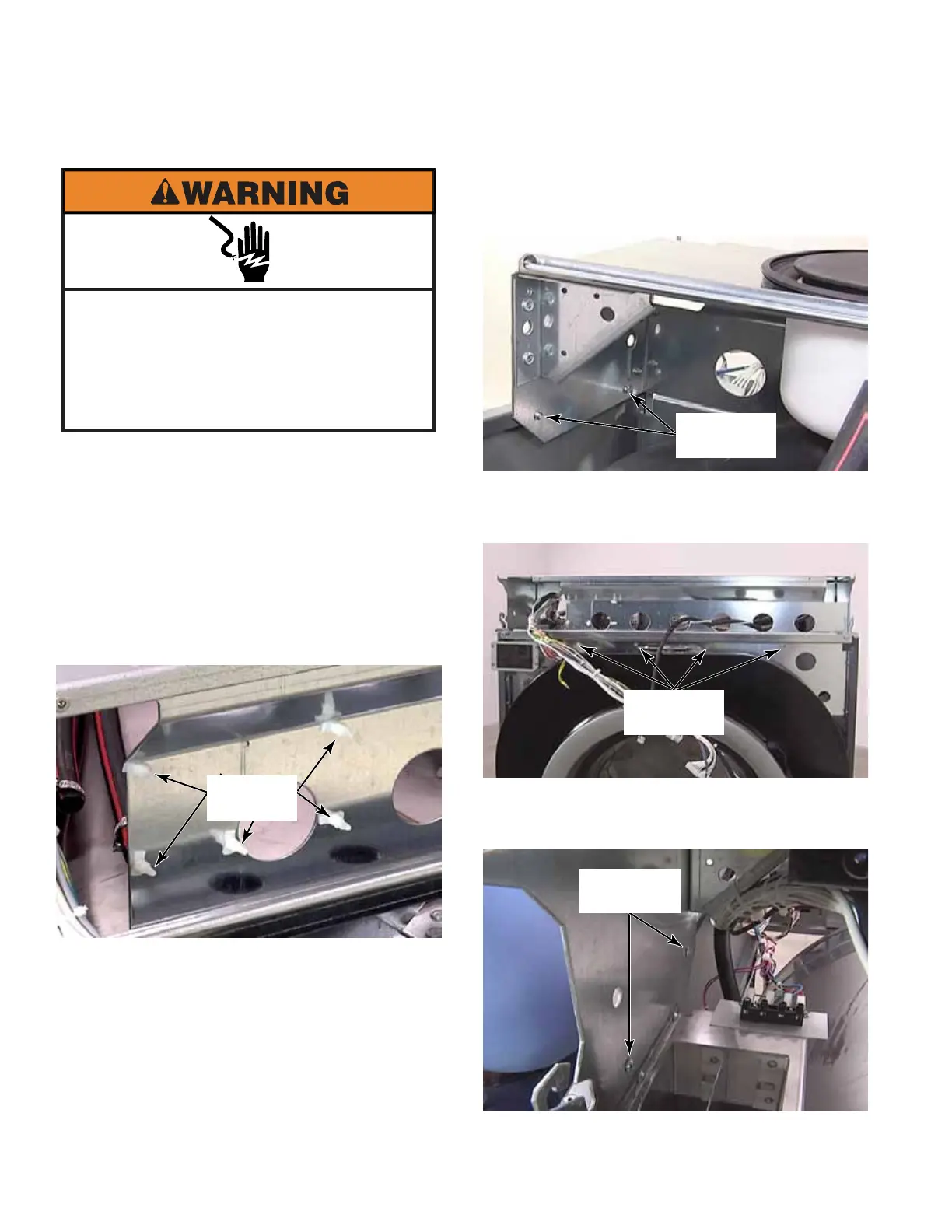

CHEMICAL DISPENSER SUPPORT
Five
Standoffs
Two T-20
Screws
Four T-30
Screws
Two T-20
Screws
