3-19
1. Open the top panel. (See page 3-1)
2. The chemical dispenser lid can be removed,
by pulling the long hinge pin out, with a pair
of pliers.
3. To remove the chemical dispenser outer
gasket, lift up at the edge and peel the
gasket away from the edge of the dispenser.
4. The cutouts on the back edge of the gasket
are for the lid hinges.
5. When reinstalling the gasket, the chemical
dispenser will at least need to be lifted to
allow the gasket to be wrapped under the
edge of the dispenser frame.
6. Remove two T-20 screws from the front
edge of the dispenser frame.
7. Lift the front edge of the dispenser and slide
it forward to release the two tabs at the
back edge of the dispenser, and allow the
dispenser to be lifted.
8. Make sure the gasket is wrapped under the
edge of the dispenser all the way around
the dispenser.
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.

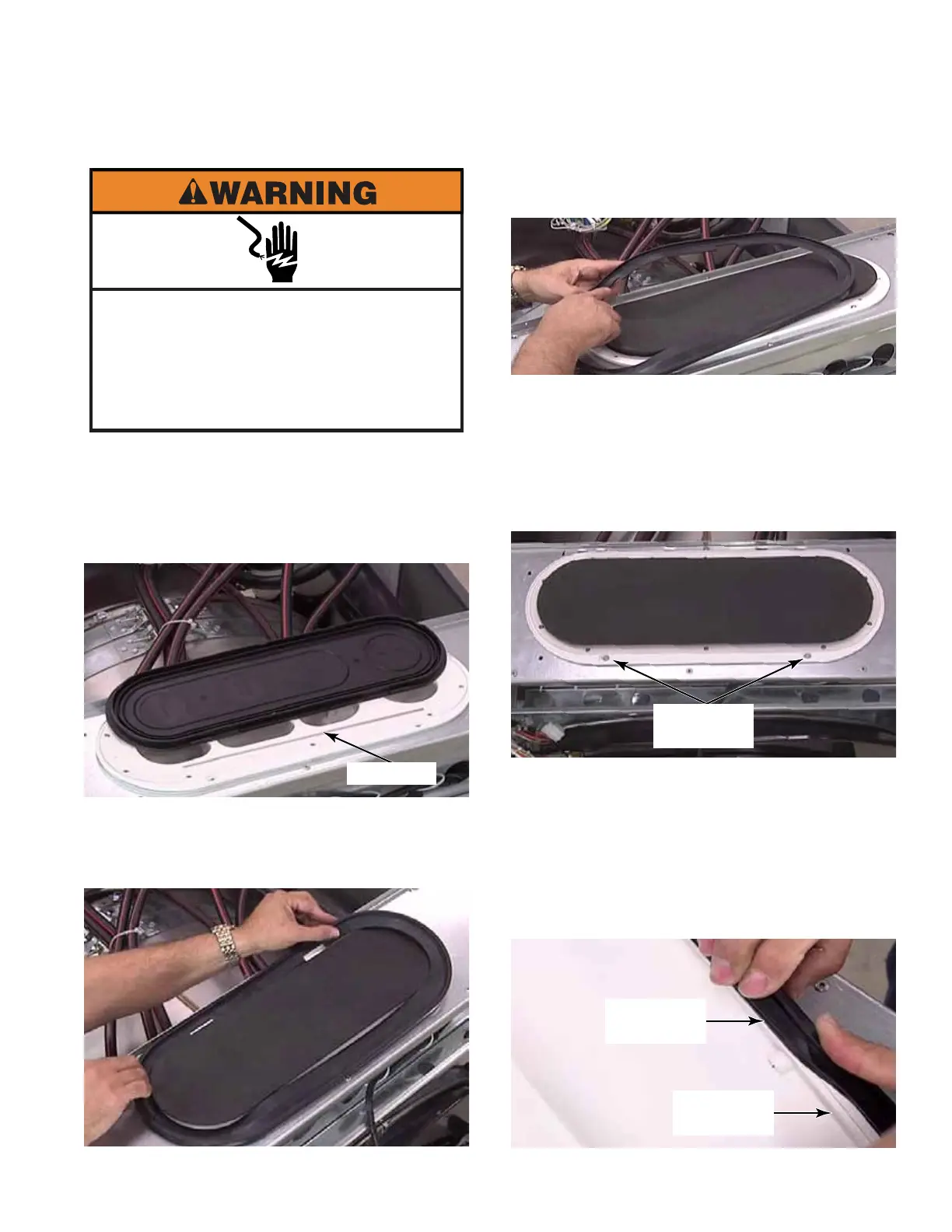

CHEMICAL DISPENSER LID AND GASKET
Hinge Pin
Two T-20
Screws
Dispenser
Edge
Gasket
Wrapped
To Next Page
